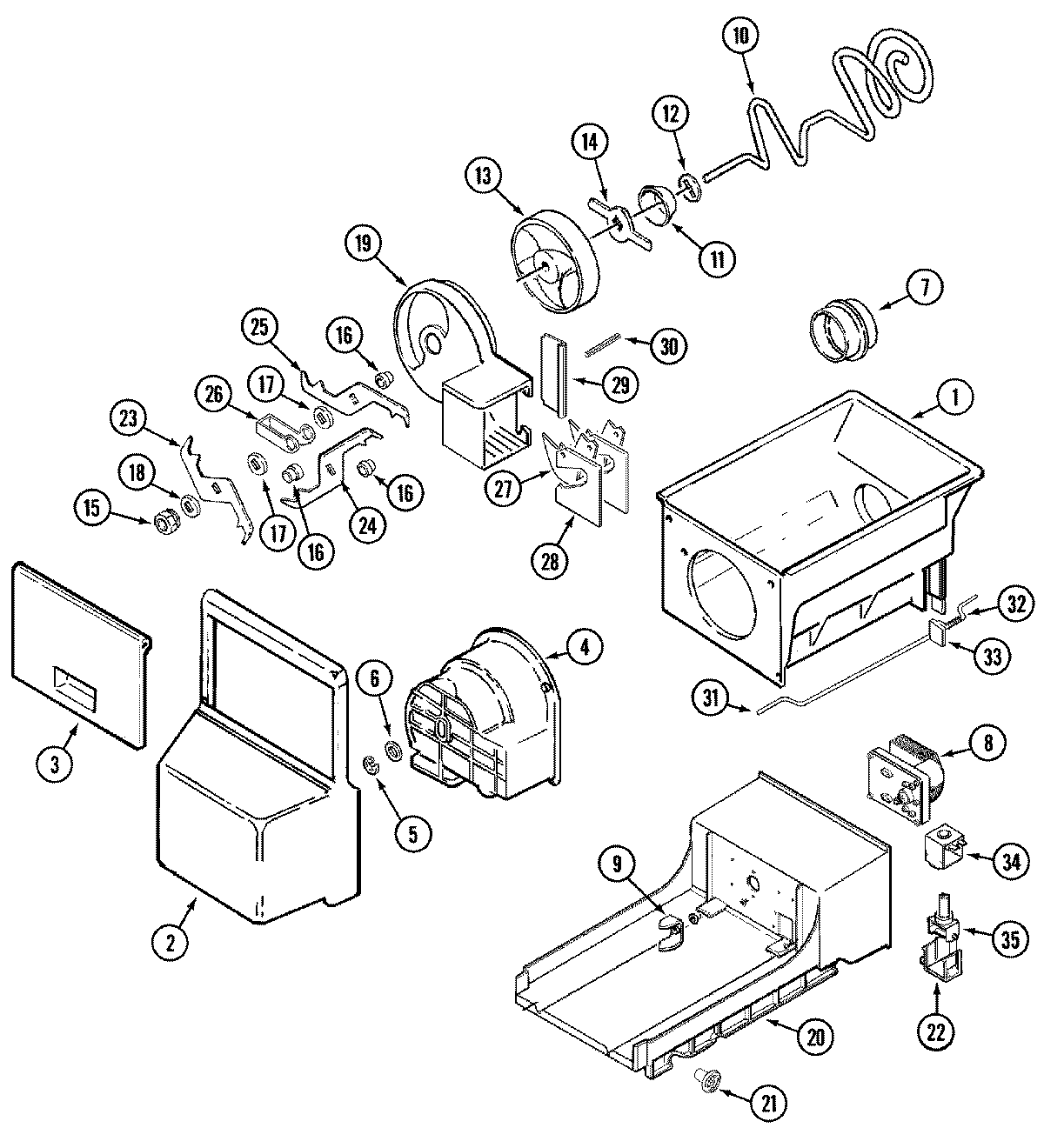

CSD2524ARW 09 – ICE BIN (REV 10)
Written by
in
CSD2524ARW 09 – ICE BIN (REV 10)
Products
Position
Product
1
MAY 61003319
2
MAY 61003440
3
MAY 61003441
4
415013-35 Whirlpool Refrigerator Screw
4
MAY 61003322
5
MAY 69704-1
6
489234 Whirlpool Refrigerator Washer
7
WP61003336 Whirlpool Refrigerator Drive Ring
8
MAY 61003442
8
12001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
9
MAY 63052-1
10
MAY 61003326
11
MAY 69699-1
12
MAY 69698-1
13
MAY 61003327
14
MAY 61003328
15
MAY 69709-1
16
MAY 69697-1
17
MAY 69696-1
18
MAY 69696-2
19
MAY 61003334
20
MAY 61003443
21
MAY 61003333
21
MAY 61003332
22
MAY 69715-1
22
MAY 400026-12
23
MAY 69702-3
24
MAY 69702-2
25
MAY 61003451
26
MAY 61003445
27
MAY 61003448
28
MAY 61003446
29
MAY 61003444
30
MAY 61003449
31
MAY 61003450
32
MAY 61003447
33
MAY 69716-1
34
2006253 Whirlpool Refrigerator Screw
34
MAY 61003118
35
MAY 61003539
←
