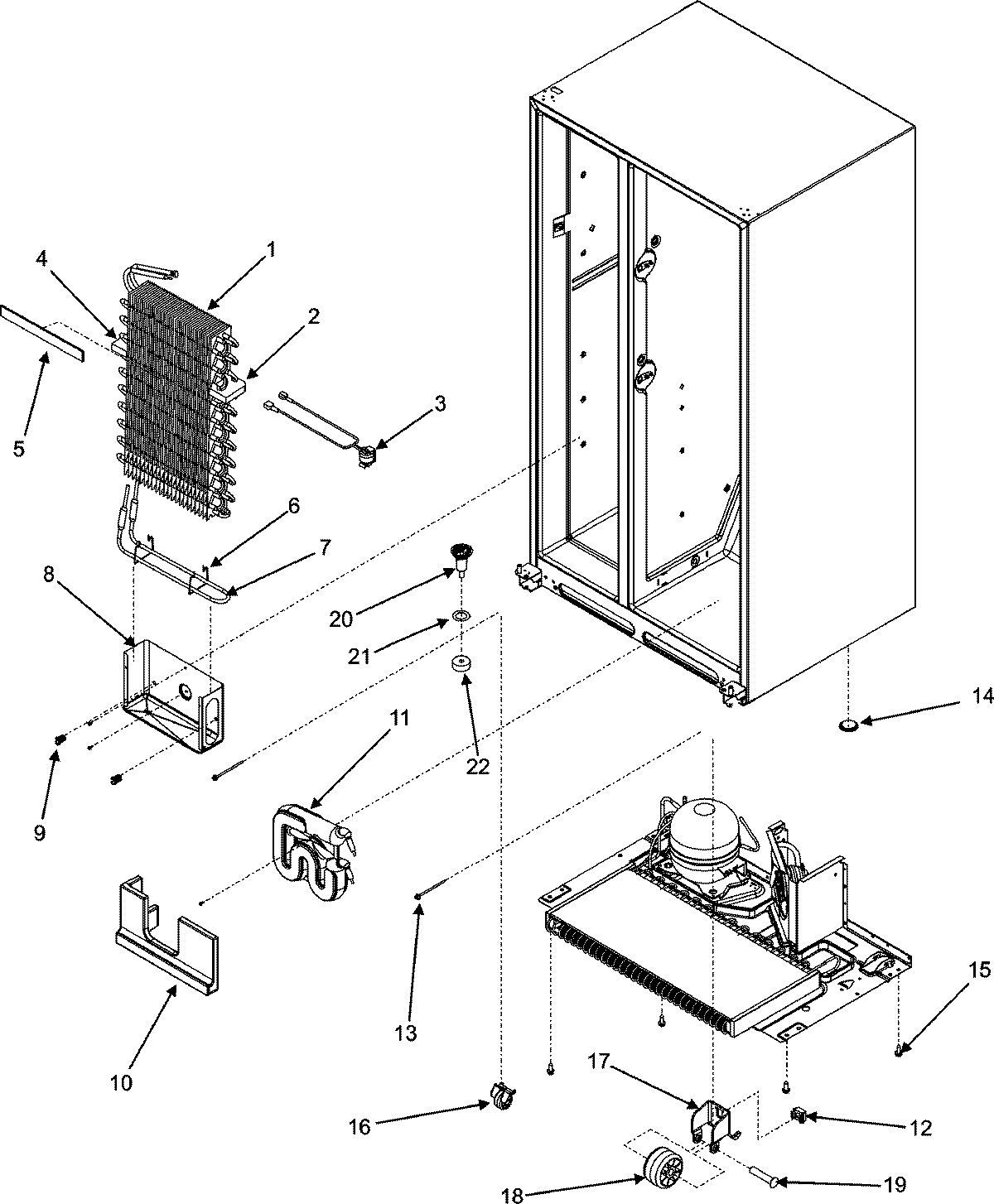

CSD2610KRW 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

CSD2610KRW 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

Written by

in

CSD2610KRW 06 – EVAPORATOR/FRONT ROLLERS/WATER TANK

Products

PositionProduct
NIMAY 67006839
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7WP67004188 Whirlpool Heater Defrost Assembly
8MAY 67006838
8MAY 12558101WD
9MAY 10623003
10MAY 67004309
11WP98165 Whirlpool Screw
11MAY 67003504
12MAY M0286708
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15Screw (4)
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
20MAY 12456901
21MAY M0500703
22Gasket
