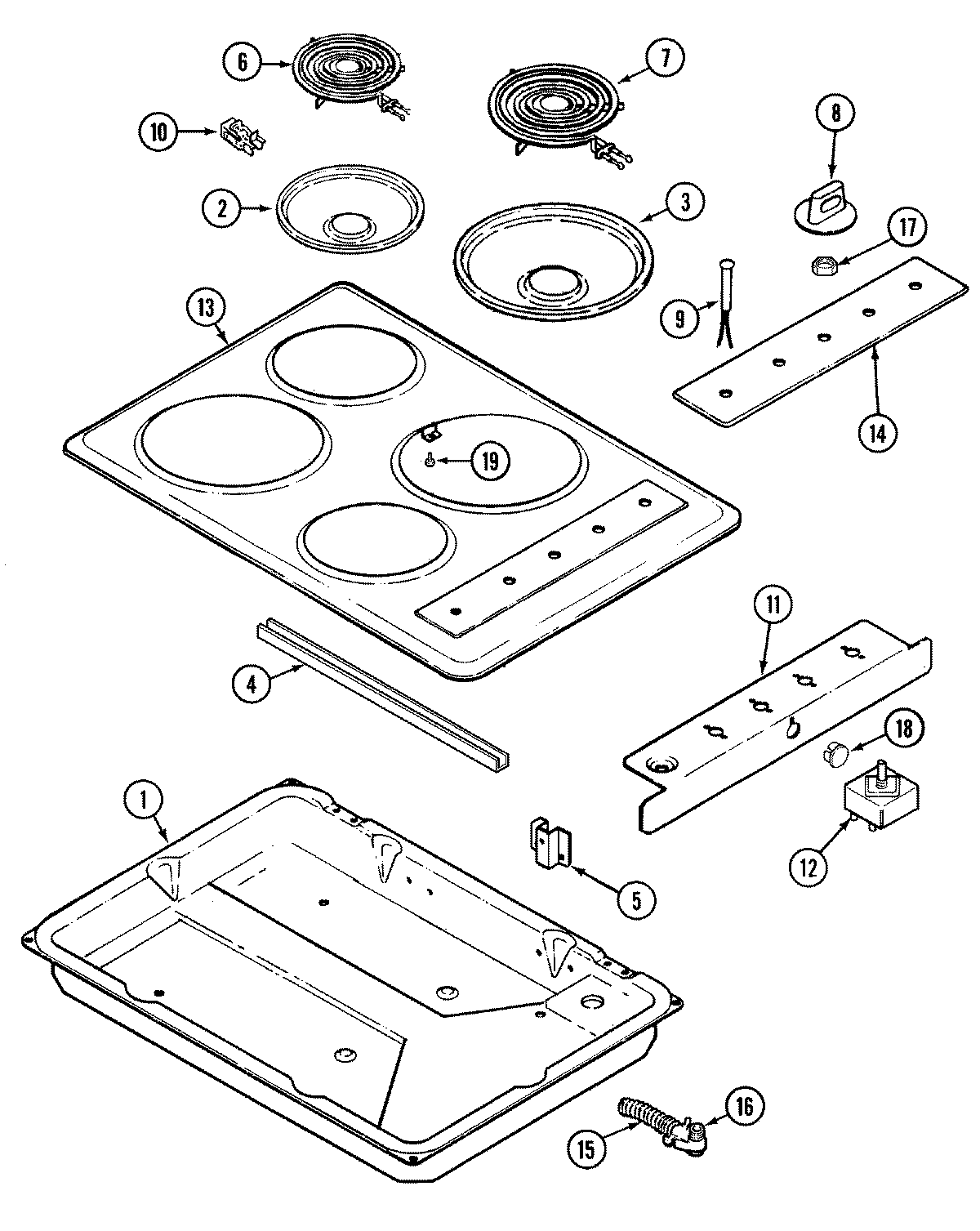

CSE4000ADW 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 7112P076-60
NI	MAY 74001593
NI	MAY 71002018
NI	MAY 74002583
NI	MAY 7720P124-60
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	BRACE, TOP
5	MAY 7111P002-60
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7118P004-60
6	MAY 7406P054-60
7	MAY 7406P055-60
8	MAY 7737P022-60
9	MAY 7407P075-60
9	MAY 8112P001-60
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 74001709
14	MAY 74001483
15	MAY 3801F072-45
15	MAY 7434P010-60
16	MAY 8008P017-60
16	MAY 74003068
17	MAY 7103P021-60
18	MAY 8008P014-60
19	MAY 7208P015-60
