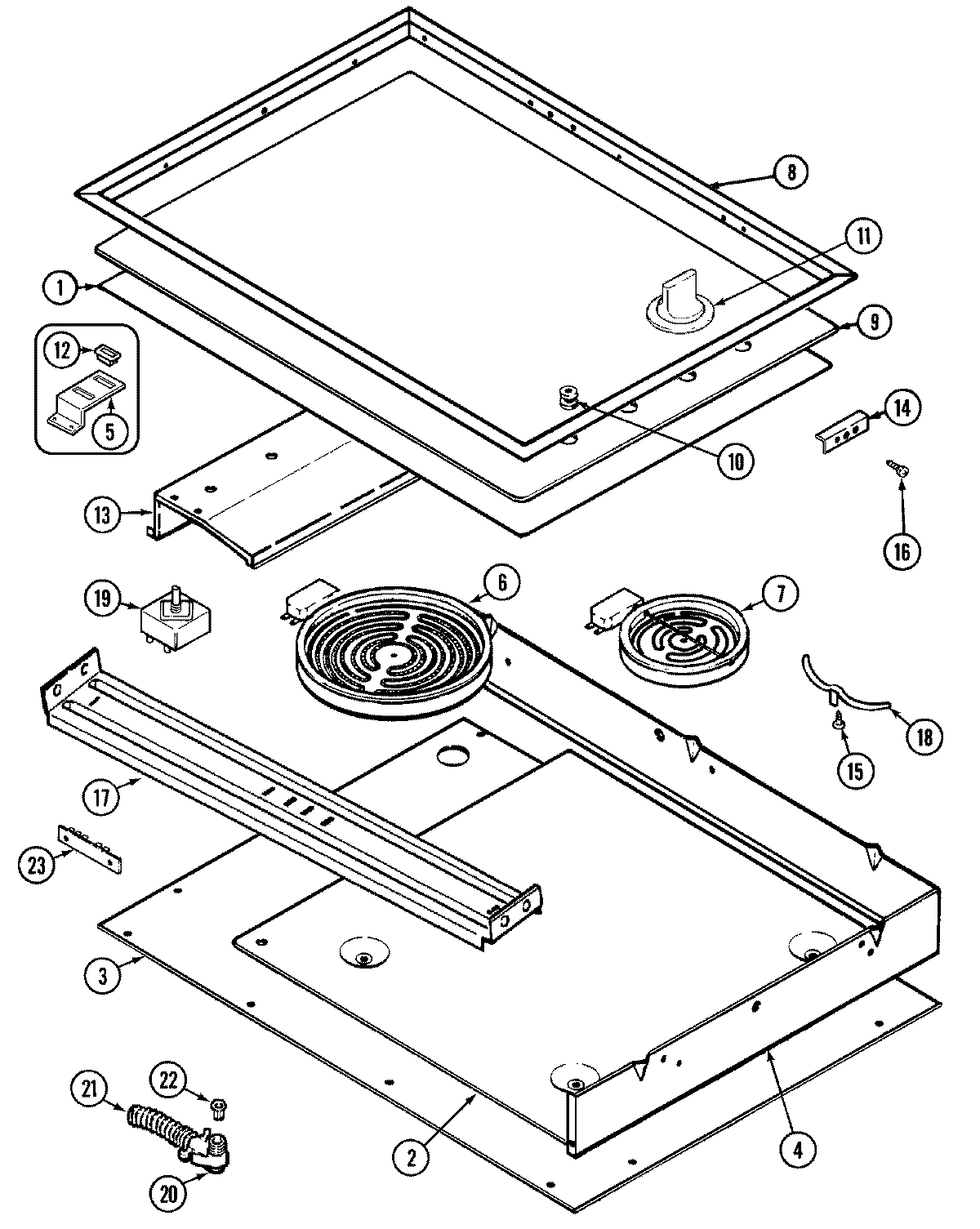

CSE9000BCQ 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74005434
NI	MAY 12001323
NI	MAY 5125A327-60
NI	MAY 74004800
2	MAY 3601F173-51
3	MAY 74001491
4	MAY 74001430
5	MAY 3801F313-45
6	W10823697 Whirlpool Surface Element
6	W10823707 Whirlpool Range Radiant Surface Element 8"
7	MAY 74004494
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
8	MAY 74005431
9	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
9	MAY 74003337
9	WA906B Whirlpool Cooktop Glass Scraper
10	MAY 8008P033-60
11	MAY 74005432
12	MAY 7407P098-60
15	SCREW (8ABX1/2“-BLK)
17	MAY 74001513
18	MAY 74002614
19	SCREW
19	MAY Y705255
19	MAY 7403P266-60
19	MAY 7403P267-60
20	MAY 74003912
21	MAY 74005433
21	MAY 5130A014-60
21	BRACKET COND
23	MAY 7401P015-60
