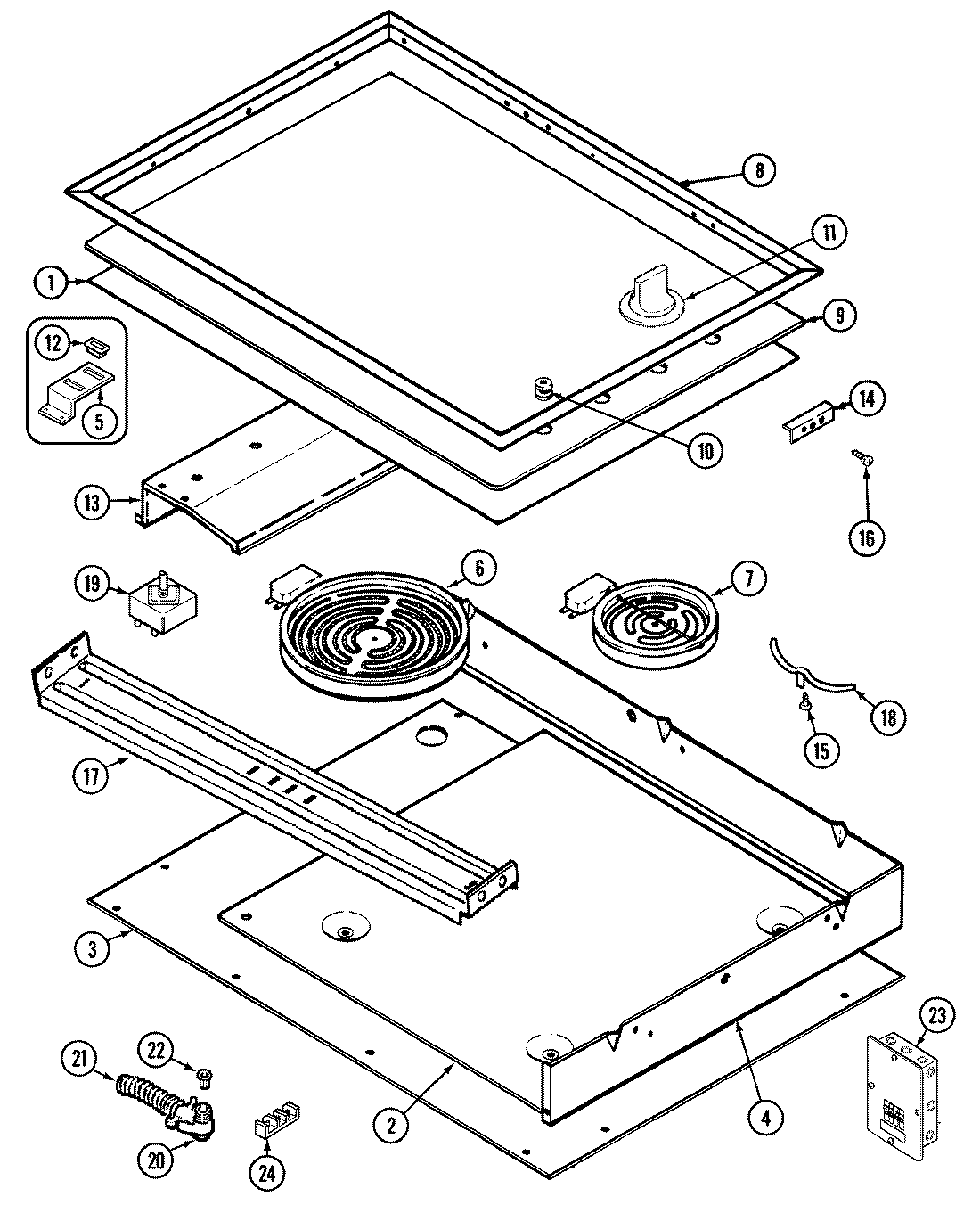

CSE9000CDB 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 16000327
NI	MAY 8110P204-60
NI	MAY 5125A364-60
NI	MAY 74001909
NI	MAY 8110P202-60
1	MAY 74001176
2	MAY 3601F173-51
3	MAY 74001491
4	MAY 74001430
5	MAY 3801F313-45
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY Y04000063
6	MAY 7406P073-60
7	MAY 7406P074-60
7	MAY Y04000064
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
8	MAY 7746P023-60
9	MAY 74001908
9	WA906B Whirlpool Cooktop Glass Scraper
9	MAY 8308P002-60
10	MAY 8008P033-60
11	MAY 7711P484-60
12	MAY 74001242
12	MAY 74001241
13	MAY 3605F175-45
14	MAY 3804F092-45
15	SCREW
16	MAY 7101P058-60
16	MAY 74001497
17	MAY 74001513
18	MAY 8004P015-60
19	MAY 7403P320-60
19	SEAL, GASKET INF. SW.
19	SCREW
19	MAY 7403P322-60
20	MAY 7417P003-60
20	MAY 7417P005-60
21	MAY 3801F072-45
21	MAY 5160A003-60
21	MAY 8008P017-60
21	MAY 7434P010-60
22	MAY 8018P001-60
23	MAY 8028P005-60
24	MAY 7401P003-60
