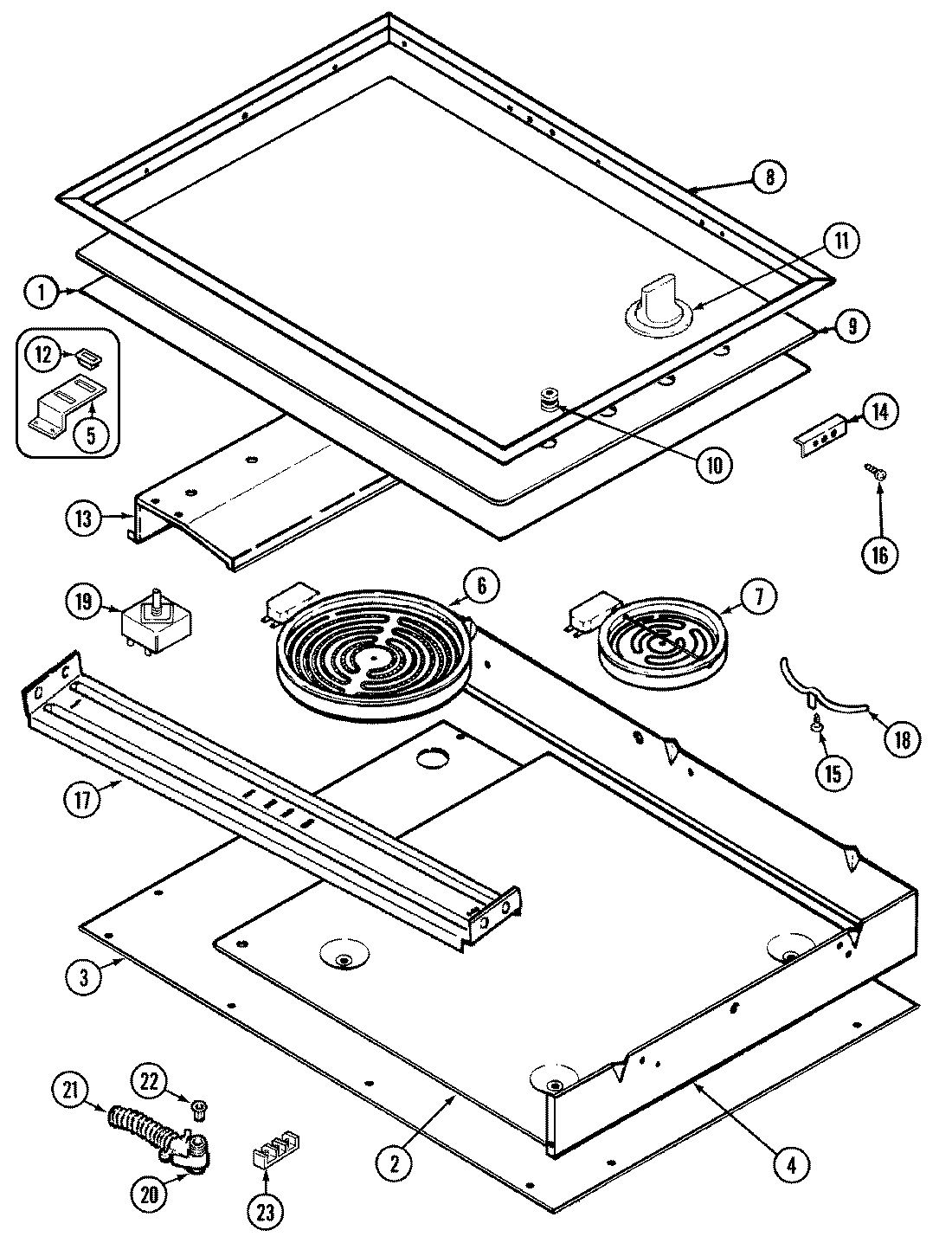

CSE9000DDE 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74002573
NI	MAY 74002583
1	MAY 74001490
2	MAY 3601F173-51
3	MAY 74001491
3	MAY 7101P059-60
4	MAY 74001430
5	MAY 3801F313-45
6	W10823697 Whirlpool Surface Element
6	MAY 74002652
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 12500040
7	MAY 74004494
7	W10823711 Whirlpool Surface Element Left Front and Right Rear
7	MAY 12500041
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
8	MAY 74002255
8	MAY 12001259
9	MAY 7918P063-60
9	WA906B Whirlpool Cooktop Glass Scraper
9	MAY 8308P002-60
10	MAY 8008P033-60
11	MAY 7711P485-60
12	MAY 7407P098-60
13	MAY 7118P004-60
13	MAY 3605F175-45
13	MAY 7103P071-60
14	MAY 74002256
15	SCREW
16	MAY 7101P058-60
16	MAY 74001497
17	MAY 3807F326-80
17	WP98008545 Whirlpool Screw
18	MAY 8004P015-60
19	SEAL, GASKET INF. SW.
19	MAY 7403P322-60
19	MAY 7403P320-60
19	SCREW
20	MAY 7417P005-60
20	MAY 74003912
21	MAY 74002350
21	MAY 7434P010-60
21	MAY 3801F072-45
21	MAY 8007P017-60
21	MAY 3414F035-44
22	MAY 8018P001-60
23	MAY 7401P015-60
23	MAY 12001323
