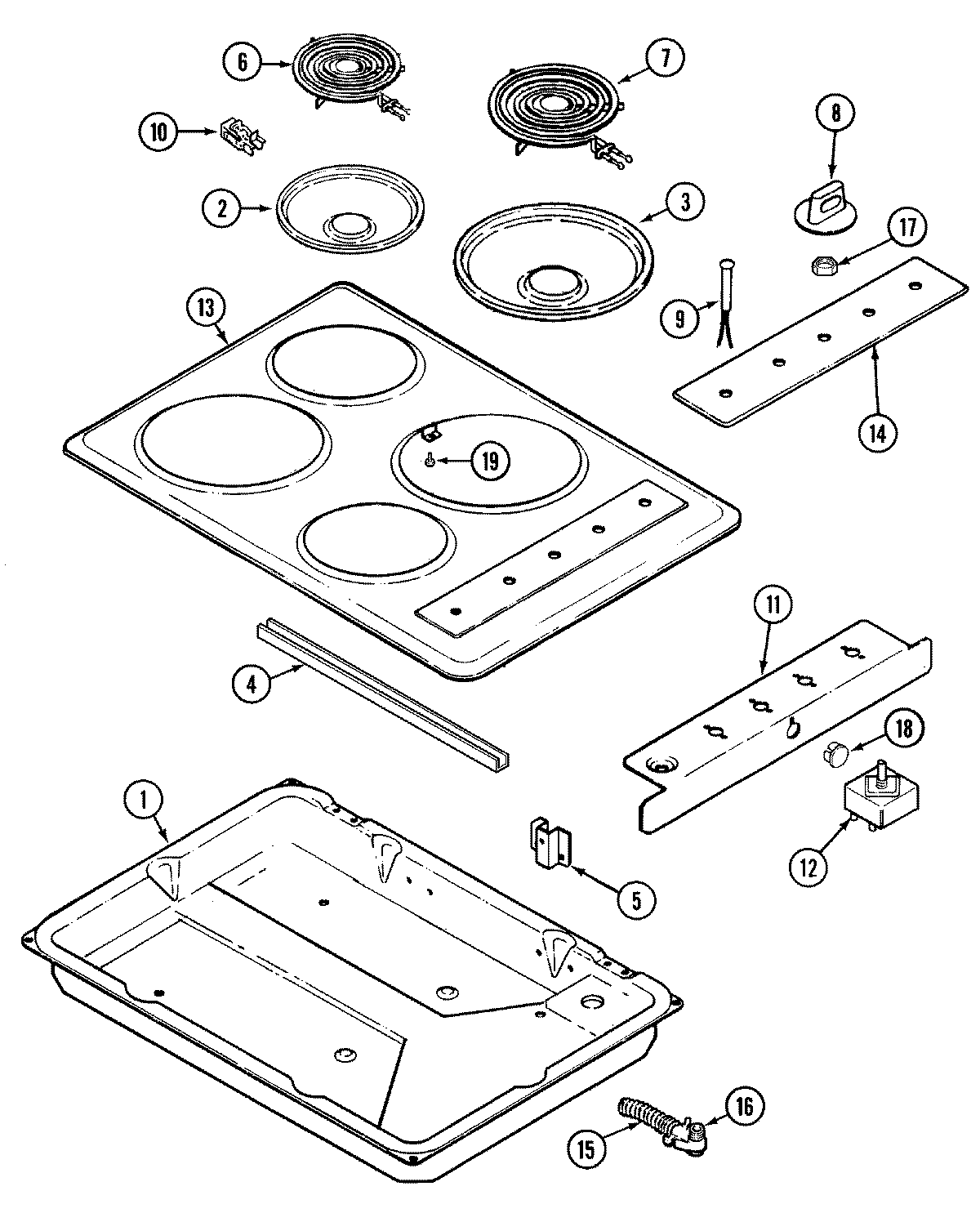

CSEA300ACD 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8112P102-60
NI	MAY 16002079
NI	MAY 5175A015-60
1	BOTTOM, BURNER BOX
2	MAY 7725P047-60
3	MAY 7725P048-60
4	MAY 3802F070-80
5	BRACKET, MAIN TOP SUPPORT
6	MAY Y04000032
7	MAY Y04000031
8	WP7737P026-60 Whirlpool Knob Switch
9	MAY 7407P062-60
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 2002W063-30
14	MAY 7720P147-60
14	MAY 7719P062-60
15	MAY 74001447
15	MAY 3414F035-44
16	MAY 8018P001-60
16	MAY 7417P004-60
16	MAY 3801F072-45
17	MAY 7103P021-60
18	GROMMET
19	SCREW
