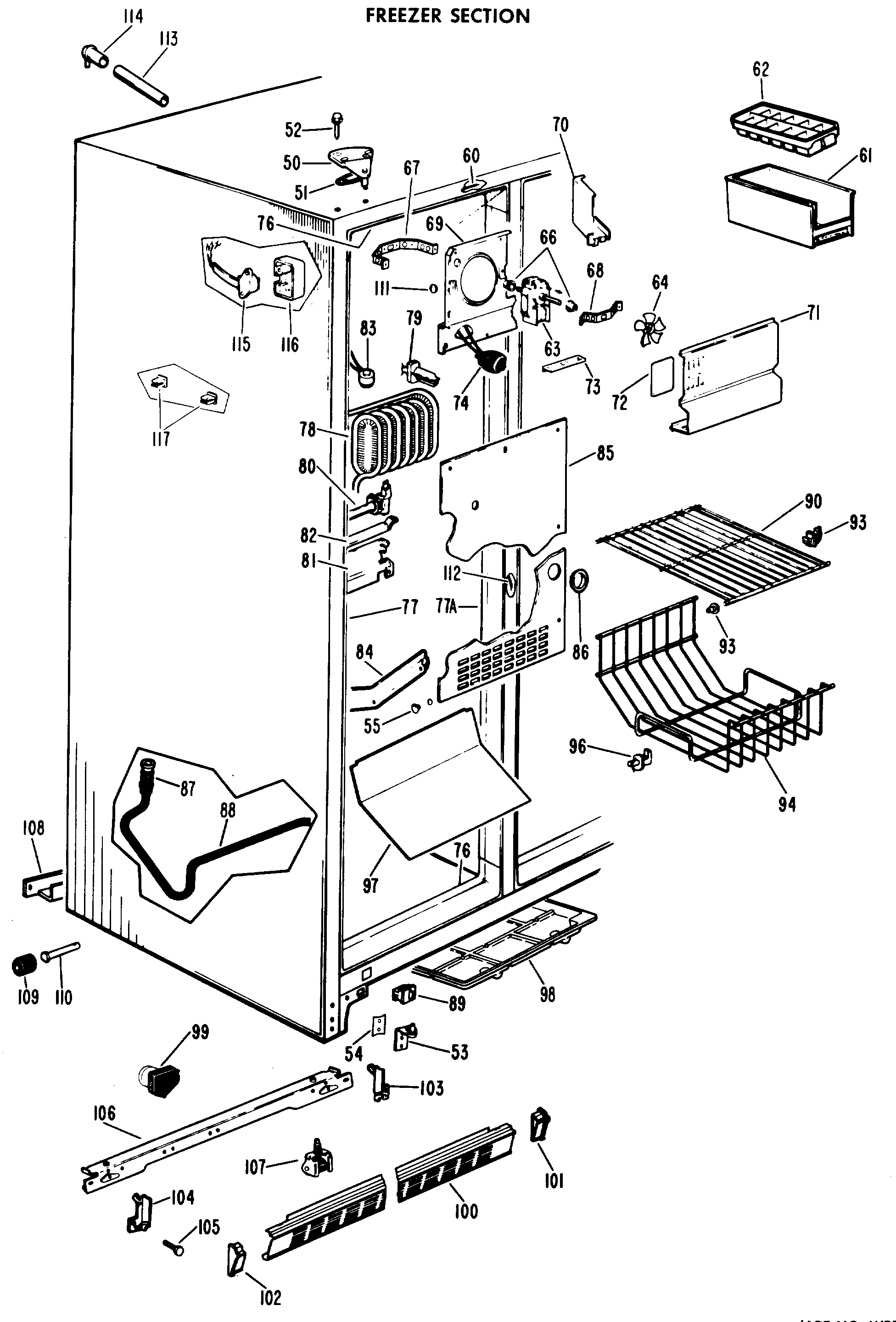

CSF19AYX FREEZER SECTION

CSF19AYX FREEZER SECTION

Written by

in

CSF19AYX FREEZER SECTION

Products

PositionProduct
50HINGE TOP ASM
51GEN WR02X4194
52GEN WR01X1249
53POP RIVET
53NUT STRIP
53WR49X5124 GE Refrigerator Hinge and Cam Assembly
53SCR 12-24 HXW 7/8 S PP
54SHIM HINGE BTM.
55GEN WR02X4632
60GEN WR51X0214
61GEN WR30X5096
62GEN WR30X5079
63GEN WR60X0108
64WR60X114 GE Refrigerator Evaporator Motor Fan Blade
66GEN WR02X2945
67BRACKET EVAP FAN
68BRACKET EVAP FAN
68LINER SCREW
69GEN WR02X2880
69GEN WR14X0272
69GEN WR17X1413
70GEN WR17X1414
71GEN WR02X4840
71GEN WR17X5841
71GEN WR02X4839
72GEN WR02X6254
73RIVET POP
73GEN WR02X4851
74GEN WR02X3998
76RETAINER BREAKER
76BREAKER STRIP-TOP & BTM.
76RETNR BRKR-TOP FF & FZ
77GEN WR40X5373
77GEN WR40X1566
77RETAINER BREAKER
78GEN WR85X0074
79GEN WR02X4421
80GEN WR02X4546
80GEN WR51X0231
80SHIELD DEF HTR END
81BRACKET DEF HTR
82GEN WR02X4971
83WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
84GASKET DRAIN TROUGH
84GEN WR01X1326
84TROUGH DRAIN
85GEN WR17X5823
85PLUG HOLE
85GEN WR14X0274
85CLIP EVAP COVER
85SCR 8-32 T TR 1/2 SS XTW
86PLUG RECESSED
87GEN WR02X4967
88DRAIN TUBE EXTENSION
88GEN WR01X5042
89WR23X37285 GE Light Switch
89GEN WR02X4735
90GEN WR71X5887
90SHELF FZ-BTM.
93GEN WR02X4676
93GEN WR02X4674
94GEN WR21X5066
96GEN WR02X5815
97GEN WR02X5874
97GEN WR02X4566
97GEN WR17X5714
97SCR 8-18 AB TR 5/8SS PLW
97CLIP EVAP COVER
98GEN WR32X0687
99SCREW FAN MTR/BRKT
99SPADE TERM. W/4" LEAD WIRE
99SCREW
99BRACKET DEF CONTROL
99WR9X480 GE Defrost Timer
100GEN WR79X5119
101END CAP GRILLE R/SIDE
102END CAP GRILLE L/SIDE
103GEN WR02X4098
104GEN WR02X4099
105GEN WR01X1194
106RAIL MACH MTG FRT
107GEN WR02X4667
108GEN WR17X5480
109WR2X3594 GE Refrigerator Wheel
110GEN WR02X4742
111WR2X3139 GE Refrigerator Plug Button
112GEN WR51X0235
113TUBE WATER FILL
114GEN WR02X3248
114GROMMET WATER FILL
115RECEPTACLE-ICEMAKER
116WZ4X241D GE Screw Package
116GEN WR02X4339
117GEN WR01X1510
117GEN WZ04
