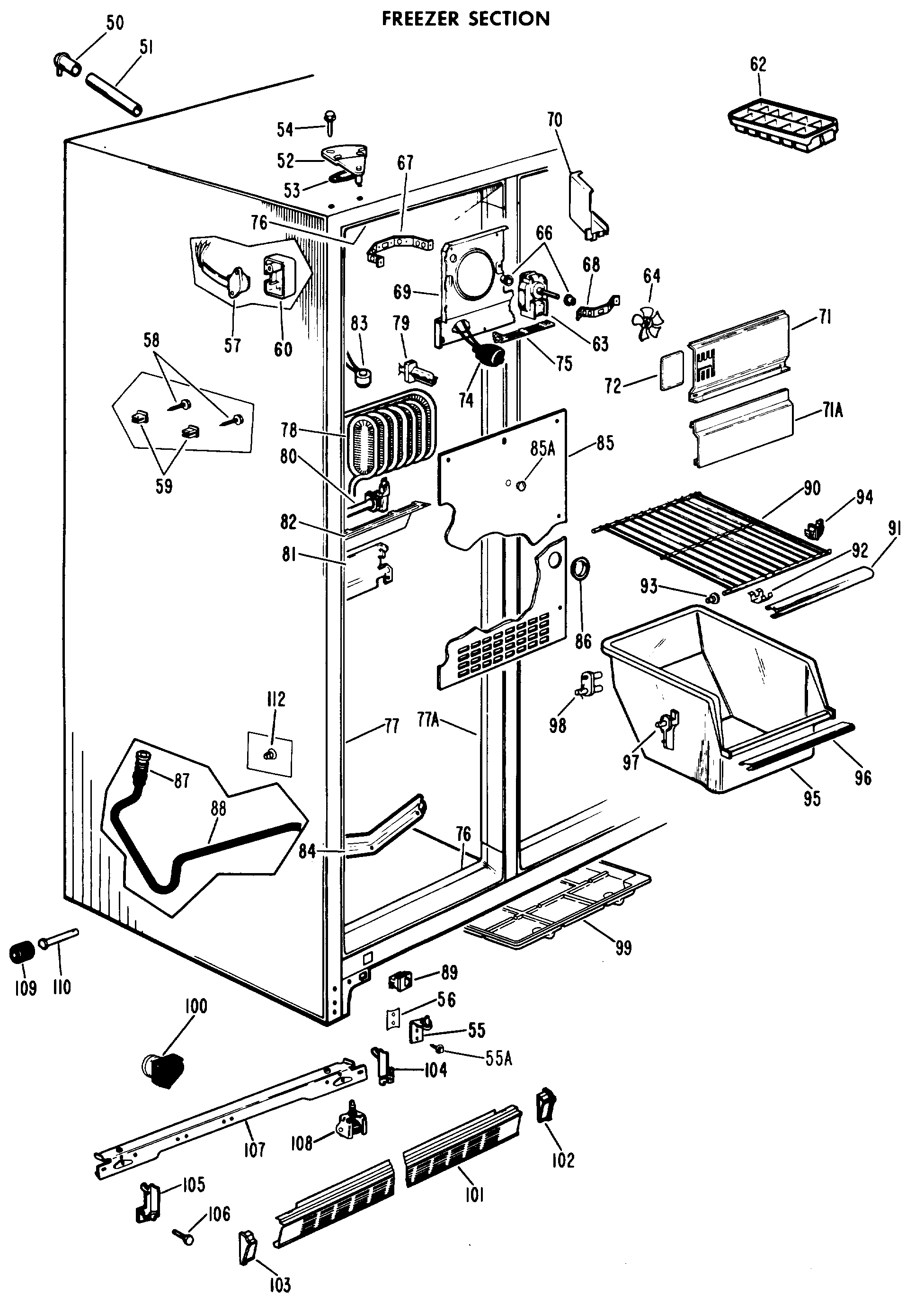

CSF20AAB FREEZER SECTION

CSF20AAB FREEZER SECTION

Written by

in

CSF20AAB FREEZER SECTION

Products

PositionProduct
50GROMMET WATER FILL
50GEN WR02X3248
51TUBE WATER FILL
52NUTSTRIP TOP HINGE
52HINGE TOP ASM
53GEN WR02X4194
54GEN WR01X1249
55NUT STRIP
55POP RIVET
55SCR 12-24 TT HXW 1 3/64S
55WR49X5124 GE Refrigerator Hinge and Cam Assembly
56SHIM HINGE BTM.
57RECEPTACLE-ICEMAKER
59GEN WR01X1510
60GEN WR02X4339
62WR30X311 GE Refrigerator Ice Tray
63GEN WR60X0108
64WR60X114 GE Refrigerator Evaporator Motor Fan Blade
66GEN WR02X2945
67BRACKET EVAP FAN
68LINER SCREW
68BRACKET EVAP FAN
69GEN WR17X1413
69GEN WR02X2880
69GEN WR14X0272
70GEN WR17X1414
71GEN WR01X1332
71GEN WR17X1567
71GEN WR17X5898
71SCR 6-20 AB TR 3/8 SS
71GEN WR02X4839
72GEN WR02X6254
74SOCKET LAMP
75RIVET POP
75GEN WR02X7042
76RETNR BRKR-TOP FF & FZ
76BREAKER STRIP-TOP & BTM.
77RETAINER BREAKER-BTM.
77RETAINER BREAKER
77BREAKER STRIP-FZ MULLION
77BREAKER STRIP-HINGE SIDE
78GEN WR02X4982
78GEN WR02X4983
78REFRIGERANT 6.5 OZ.
78LOW SIDE ASM
79GEN WR02X4421
80SHIELD DEF HTR END
80GEN WR51X0231
80GEN WR02X4546
81BRACKET DEF HTR
82GEN WR02X4971
83WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
84GASKET DRAIN TROUGH
84GEN WR01X1326
84TROUGH DRAIN
85WZ4X241D GE Screw Package
85CLIP EVAP COVER
85PLUG HOLE
85GEN WZ06X0107
85GEN WR17X1566
85GEN WR14X0274
86PLUG RECESSED
87GEN WR02X4967
88SCREW
88GEN WR02X4838
88DRAIN TUBE EXTENSION
89WR23X37285 GE Light Switch
90SHELF FZ-BTM.
90SHELF FZ
91GEN WR38X5180
92GEN WR02X5008
93GEN WR02X4676
94GEN WR02X4674
95GEN WR21X5074
96GEN WR02X6042
97GEN WR02X7036
98GEN WR02X4548
99GEN WR32X0687
100BRACKET DEF CONTROL
100SCREW FAN MTR/BRKT
100SCREW
100SPADE TERM. W/4" LEAD WIRE
100WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
101GRILLE
102END CAP GRILLE R/SIDE
103END CAP GRILLE L/SIDE
104GEN WR02X4098
105GEN WR02X4099
106GEN WR01X1194
107RAIL MACH MTG FRT
108WHEEL ASM FRT
109WR2X3594 GE Refrigerator Wheel
110SHIM HINGE BTM.
