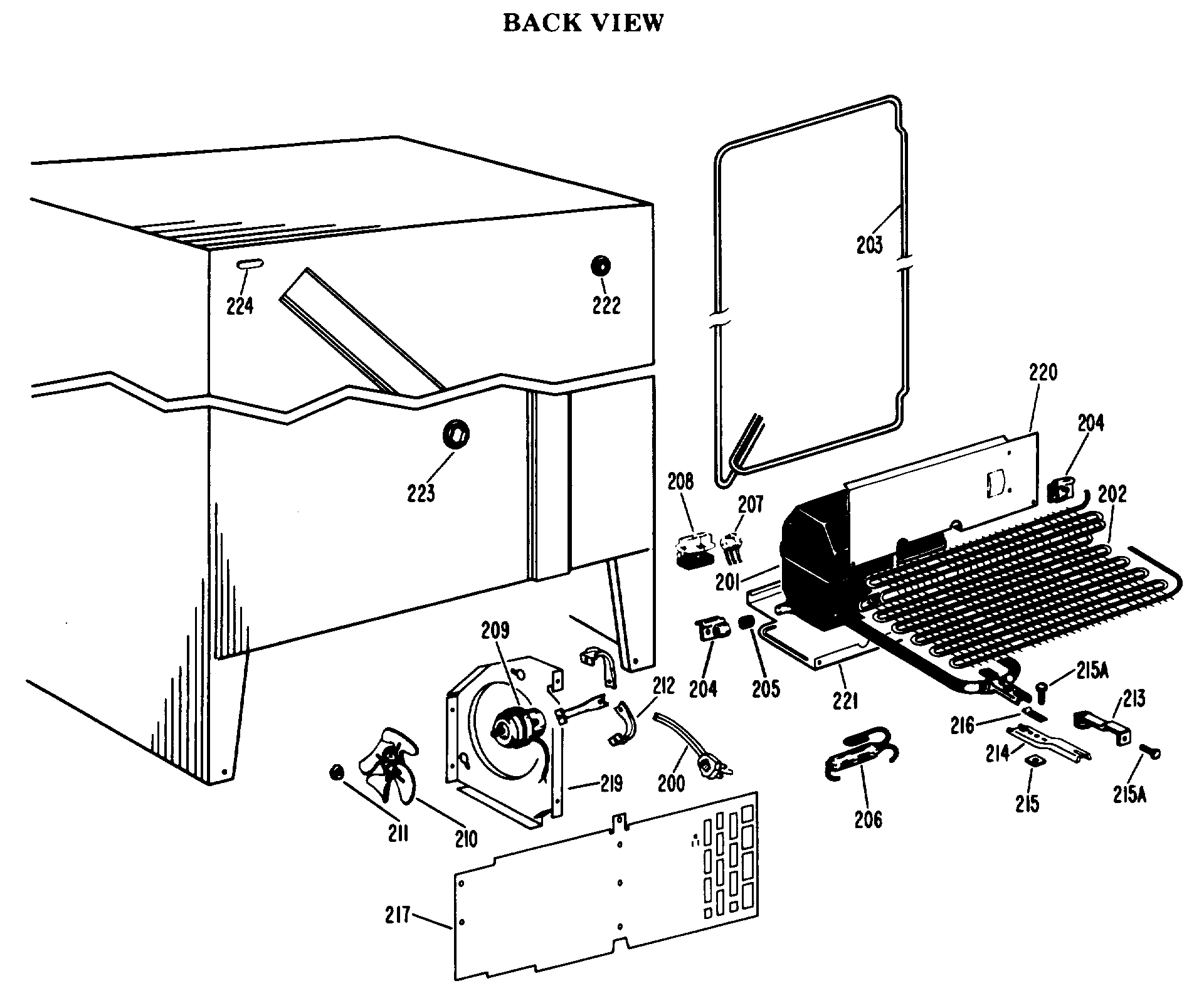

CSF20EAB BACK VIEW

CSF20EAB BACK VIEW

Written by

in

CSF20EAB BACK VIEW

Products

PositionProduct
200WR23X10300 GE Refrigerator Power Cord Assembly
200WR1X5278 GE Refrigerator Cable Clamp
200SCREW
201WR87X10082 GE Refrigerator Compressor Replacement Kit
202CLIP COND
202CONDENSER ASM.
203WR2X7064 GE Refrigerator Condenser Clip
203TUBE COND LOOP ASM
204CUP & BRACKET ASM-R. SIDE
204CUP & BRACKET ASM-L. SIDE
205SLEEVE COMP MTG
206WR86X25269 GE Refrigerator R134 Dryer
207GEN WR08X0044
208RELAY COMP
208COVER RELAY
208GEN WR02X3583
209WR60X177 GE Condenser Fan Motor
210GEN WR60X0042
211GEN WR01X1515
211GEN WR02X4191
212SCREW FAN MTR/BRKT
212BRACKET COND FAN
213TONGUE ASM
213GEN WR02X2375
214EXT COMP MTG
215GEN WR01X1194
215NUTSTRIP COMP MTG D/J
216GEN WR02X4850
217GEN WR82X0207
217WD2X5166 GE Dishwasher Screw
219BAFFLE AIR COND FAN
220BAFFLE COMP FRT
221BAFFLE COMP FLR
221GEN WZ06X0066
222GEN WR02X4968
223GEN WR02X4829
224WR2X4097 GE Button Plug
224GEN 39-6161-1
