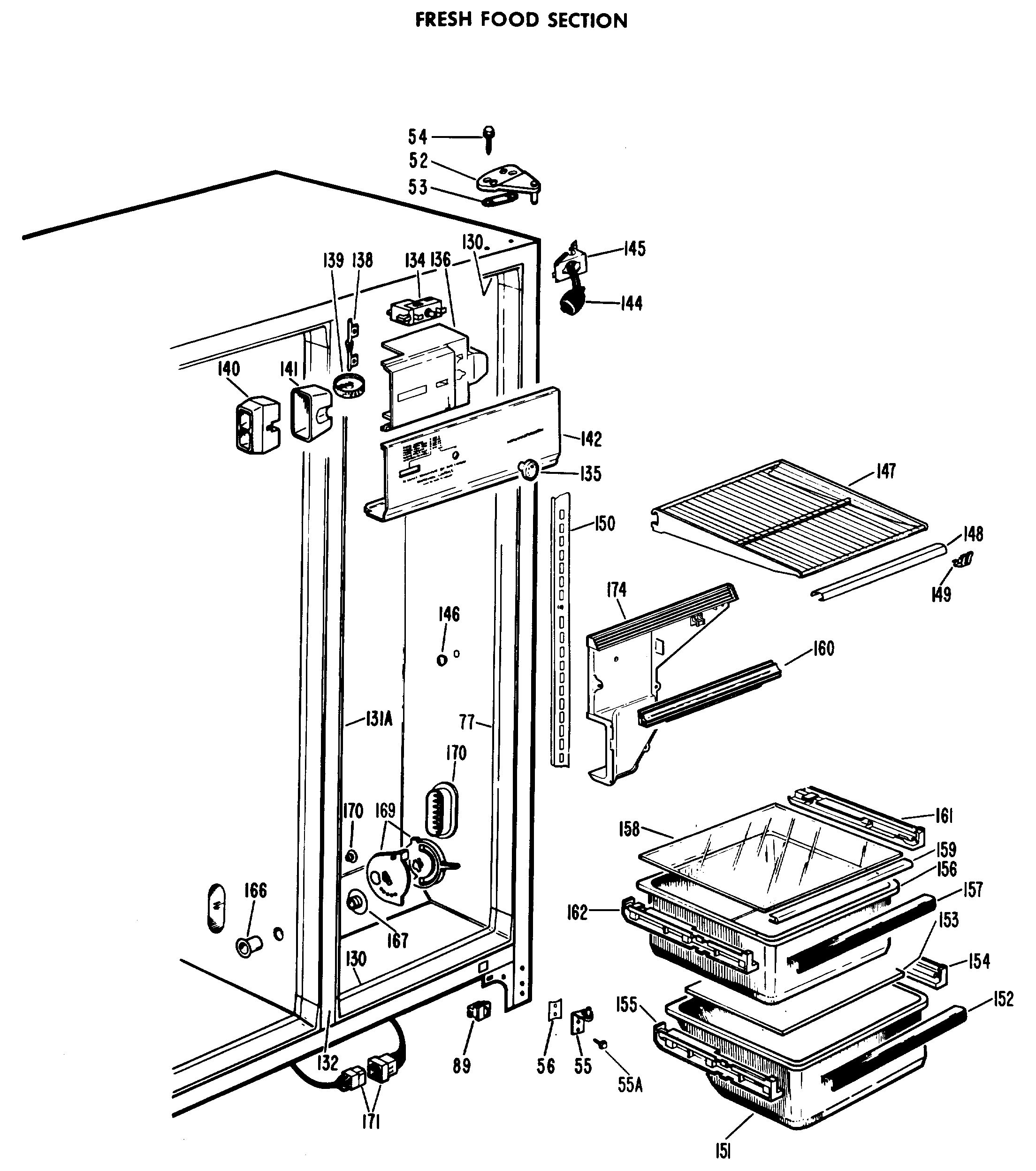

CSF20EAB FRESH FOOD SECTION

CSF20EAB FRESH FOOD SECTION

Written by

in

CSF20EAB FRESH FOOD SECTION

Products

PositionProduct
52HINGE TOP ASM
52NUTSTRIP TOP HINGE
53GEN WR02X4194
54GEN WR01X1249
55POP RIVET
55NUT STRIP
55SCR 12-24 TT HXW 1 3/64S
55WR49X5124 GE Refrigerator Hinge and Cam Assembly
56SHIM HINGE BTM.
77RETAINER BREAKER
77BREAKER STRIP-HINGE SIDE
89WR23X37285 GE Light Switch
130RETAINER BREAKER
130RETAINER BREAKER
130BREAKER STRIP-TOP & BTM.
131BREAKER STRIP-FF MULLION
132GEN WR40X1576
132SCREW 8-32X3/8
132GEN WR02X4739
132GEN WR02X7033
132GEN WR02X7031
132SCR 8-18 AB FL 5/8 SNS
134CONTROL TEMP
134SCR 8-32 MA TR 1/4 SS
135GEN WR02X6255
136SCREW
136HOUSING CONT
138GEN WR02X4835
139GEN WR02X4836
140GEN WR02X4834
141GASKET FOAM
141GEN WR02X3880
142GEN WR02X6350
142GEN WR01X1332
142GEN WR17X5908
142GEN WR02X6347
144SOCKET LAMP
145LINER SCREW
145GEN WR02X4849
146WR2X3139 GE Refrigerator Plug Button
147SHELF CANT WIRE ASM
148GEN WR38X5146
149GEN WR02X5008
150TRACK CANT SHELF
150GEN WR01X1483
151PAN MEAT
152GEN WR02X6322
152GEN WR17X5878
153COVER PAN
154SLIDE PAN-R. SIDE
155SLIDE PAN-L. SIDE
156PAN VEG.
157GEN WR17X5877
158GEN WR32X0654
159GEN WR14X5111
160GEN WR14X5108
161SLIDE PAN
162SLIDE PAN
166GEN WR02X3886
167CAP MULLION DUCT
169GEN WR02X7035
170GEN WZ04X0244
170GEN WR02X4542
170SEAL
171R-E-D SERVICE PKG.
174WZ4X241D GE Screw Package
174GEN WR14X0264
174GEN WR01X1326
174GEN WR17X1382
