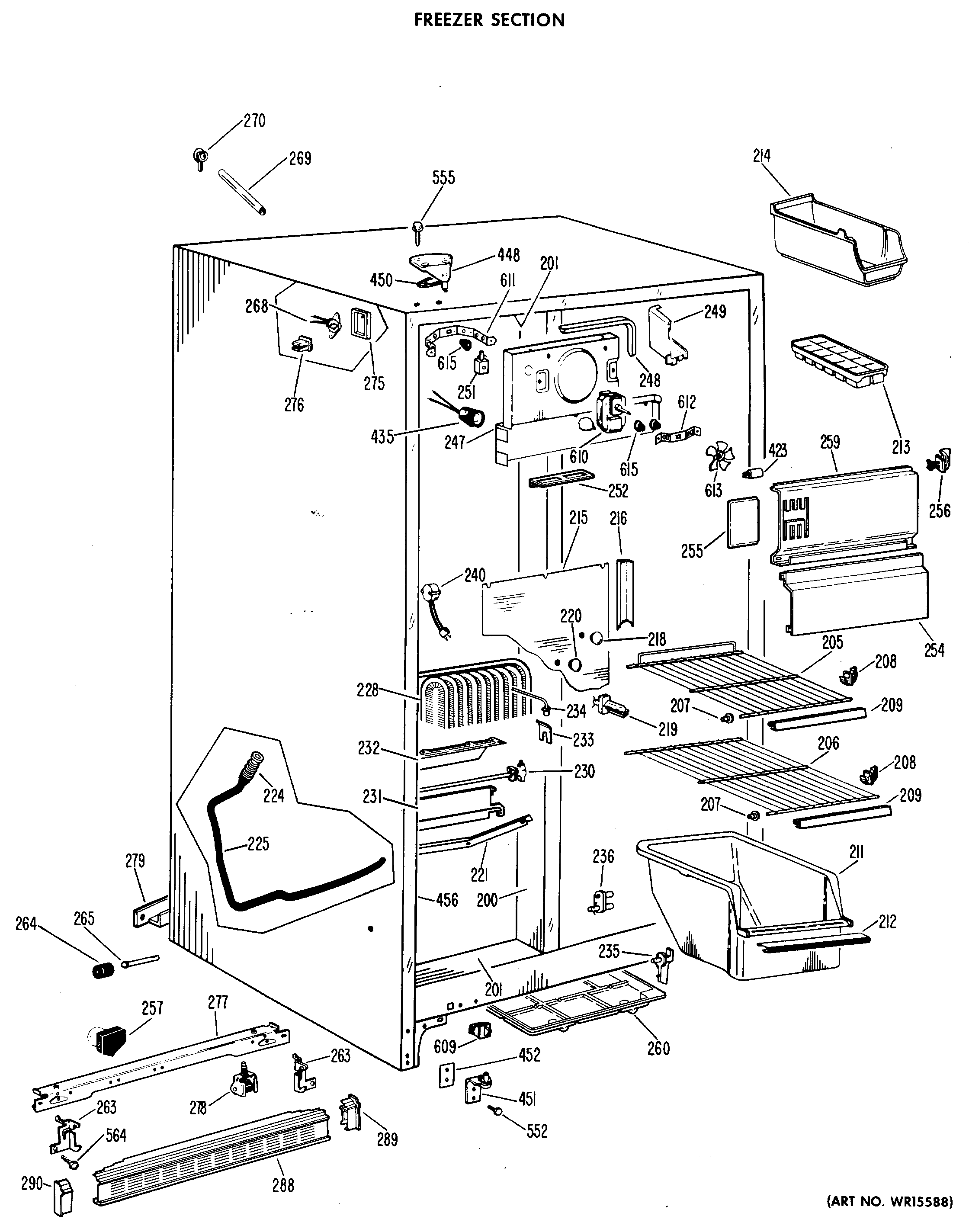

CSF22EBD FREEZER SECTION

CSF22EBD FREEZER SECTION

Written by

in

CSF22EBD FREEZER SECTION

Products

PositionProduct
200BREAKER STRIP-FZ MULLION
201BREAKER STRIP-TOP & BTM.
205SHELF FZ
206SHELF FZ-BTM.
207GEN WR02X4676
208GEN WR02X4674
209GEN WR38X5180
211GEN WR21X5080
212GEN WR02X6042
213WR30X311 GE Refrigerator Ice Tray
214GEN WR30X5102
215GEN WR17X1566
216GEN WR14X0274
218PLUG HOLE
219GEN WR02X4421
220PLUG RECESSED
221TROUGH DRAIN
224GEN WR02X4967
225GEN WR02X7088
228LOW SIDE ASM
230GEN WR51X0231
231BRACKET DEF HTR
232GEN WR02X4971
233SHIELD DEF HTR END
234GEN WR02X4546
235GEN WR02X7036
236GEN WR02X4548
240WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247GEN WR17X1413
248GEN WR14X0272
249GEN WR17X1414
252GEN WR02X7042
254GEN WR17X1567
255GEN WR02X6254
256GEN WR02X4839
257WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
257BRACKET DEF CONTROL
259GEN WR17X5959
260GEN WR02X7074
260PAN WATER DISPOSAL ASM
263GEN WR02X4099
263GEN WR02X4098
264WR2X3594 GE Refrigerator Wheel
265GEN WR02X3598
265GEN WR02X4742
268RECEPTACLE-ICEMAKER
269GEN WR02X4816
269TUBE WATER FILL
270GEN WR02X3248
270GROMMET WATER FILL
275GEN WR02X4339
276GEN WR01X1510
277RAIL MACH MTG FRT
278WHEEL ASM FRT
288GRILLE O.CASE(BRN)
289GEN WR02X6383
290CAP GRILLE L. SIDE
423GEN WR02X6347
423GEN WR02X6350
435SOCKET LAMP
448HINGE TOP ASM
450GEN WR02X4194
451WR49X5124 GE Refrigerator Hinge and Cam Assembly
452SHIM HINGE BTM.
452GEN WR02X7011
456RETAINER BREAKER
456RETAINER BREAKER
456BREAKER STRIP-HINGE SIDE
456RETAINER BREAKER
552SCR 12-24 TT HXW 1 3/64S
555GEN WR01X1249
564GEN WR01X1194
609WR23X37285 GE Light Switch
610GEN WR60X0126
611BRACKET EVAP FAN
612BRACKET EVAP FAN
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X2945
