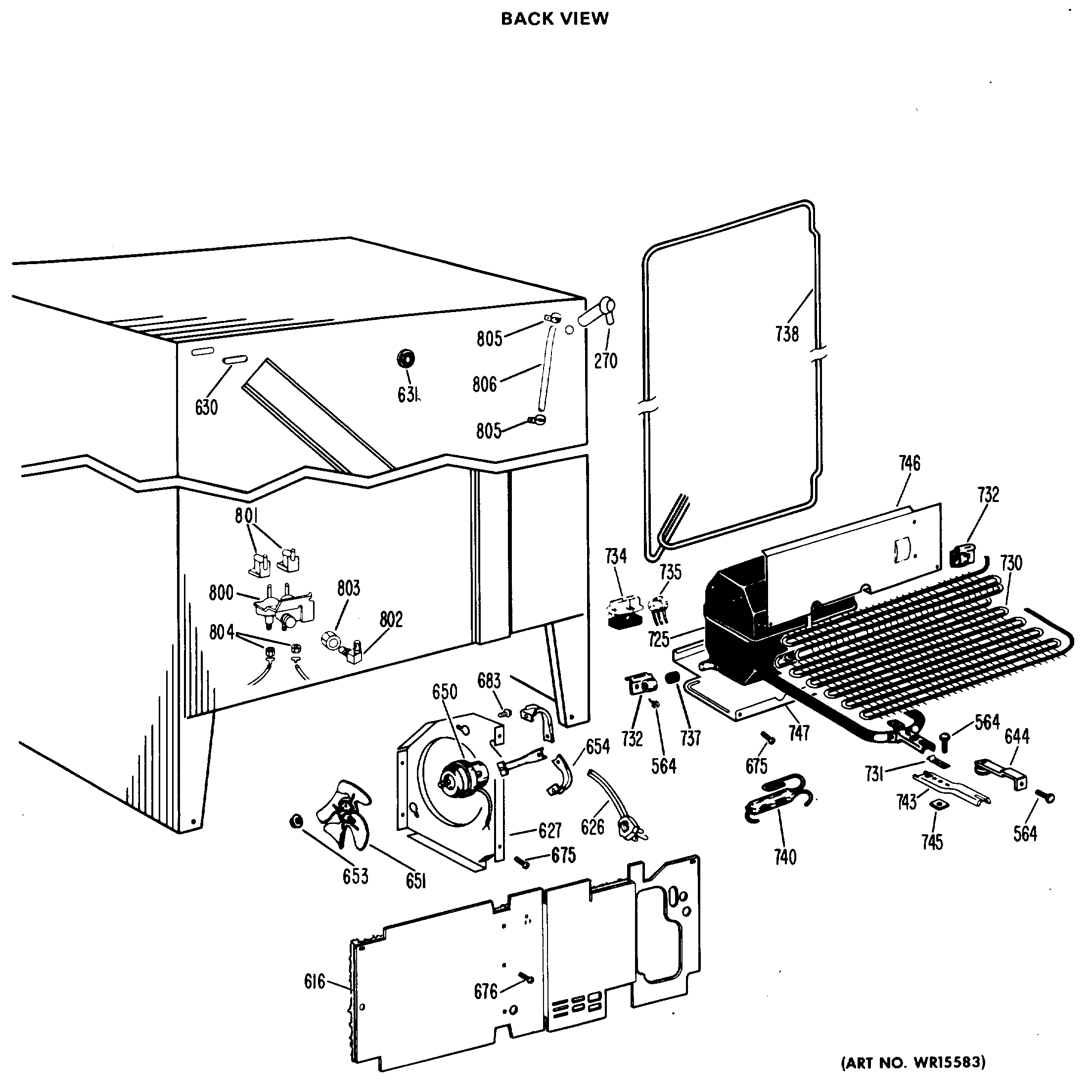

CSF22MBC BACK VIEW

CSF22MBC BACK VIEW

Written by

in

CSF22MBC BACK VIEW

Products

PositionProduct
270GROMMET WATER FILL
270WR2X4754 GE Refrigerator Fill Clamp
564SCR 6-20 AB TR 3/8 SS
564GEN WR01X1194
616GEN WR82X0208
626WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
627BAFFLE AIR COND FAN
630WR2X4097 GE Button Plug
631GEN WR02X4829
631GEN WR02X4968
644TONGUE ASM
644GEN WR02X2375
650WR60X177 GE Condenser Fan Motor
651GEN WR60X0042
653GEN WR01X1515
654BRACKET COND FAN
675GEN WZ06X0096
675SCR 8-18 AB TR 5/8SS PLW
676WD2X5166 GE Dishwasher Screw
683SCREW FAN MTR/BRKT
725WR87X10082 GE Refrigerator Compressor Replacement Kit
730CONDENSER ASM.
731GEN WR02X4850
731CLIP COND
732CUP & BRACKET ASM-R. SIDE
732CUP & BRACKET ASM-L. SIDE
734COVER RELAY
734RELAY COMP
734GEN WR02X3583
735GEN WR08X0044
737SLEEVE COMP MTG
738TUBE COND LOOP ASM
740WR86X25269 GE Refrigerator R134 Dryer
743EXT COMP MTG
745NUTSTRIP COMP MTG D/J
746BAFFLE COMP FRT
747BAFFLE COMP FLR
800WATER VALVE ASM
801GEN WR62X0025
801COIL ASM-WATER(BLUE)
802ELBOW
803GEN WR57X0049
803NUT-VALVE INLET
803WASHER-NUT
803GEN WR57X0040
804WR57X57 GE Refrigerator Nut
806WR17X1948 GE Refrigerator Water Line
