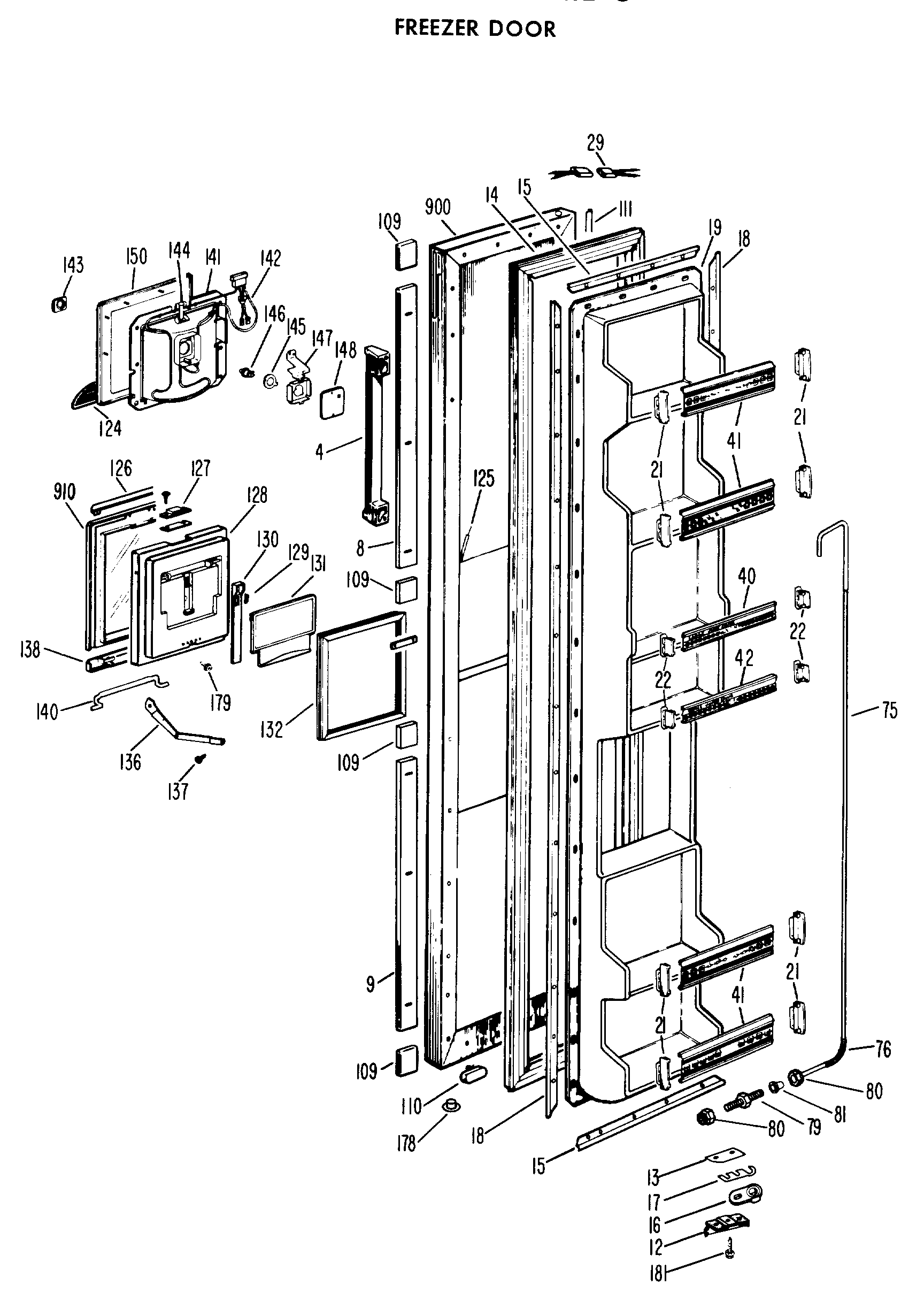

CSF22MBC FREEZER DOOR

CSF22MBC FREEZER DOOR

Written by

in

CSF22MBC FREEZER DOOR

Products

PositionProduct
3GEN WR02X3757
5GEN WR01X5473
6GEN WR12X5106
7GEN WR01X5349
8GEN WR17X5964
9TRIM DOOR
11GEN WR01X5469
12GEN WR02X4537
13GEN WR02X4599
13GEN WR02X4540
13GEN WR01X0993
14GEN WR24X0252
15GEN WR17X1231
16WR2X4901 GE Door Hinge Cam Riser
17GEN WR02X6043
18GEN WR17X1169
19DOOR INNER FZ
21GEN WR02X4100
22GEN WR02X5795
28CLIP SPEED
29GEN WR49X5103
29GEN WR49X5102
40GEN WR17X5780
41GEN WR17X5778
42GEN WR17X5781
75TUBE WATER LINE ASM DISP
76GEN WR02X4633
79WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
81INSERT 5/16
107GEN WR01X5438
109GEN WR01X5346
109GEN WR03X5105
109GEN WR03X5106
110GEN WR02X4678
111GEN WR38X0906
124GEN WR02X6228
125HEATER BRKR FRAME ASM
126HANDLE MINI DOOR ASM
127HOUSING LATCH MINI DOOR
127SPRING LATCH MINI DOOR
127LATCH MINI DOOR
127GEN WZ05X0218
128INSUL MINI DOOR
128DOOR INNER MINI
129SPRING
130SLIDE HOOK MINI DR
131GEN WR02X6224
131HOOK MINI DOOR
132GASKET MINI DOOR
133RETAINER STRIP
134RETAINER STRIP MINI DOOR
135GEN WR10X5030
136STOP DOOR-L. SIDE
136STOP DOOR-R. SIDE
137CLIP U
137SCR DOOR STOP
138BASE HINGE MINI DOOR
138CLIP MINI DOOR LATCH
140HINGE MINI DOOR
141SCR 8-18 BAT HX 7/8SSXTW
141RECESS WATER DISP
142HARNESS RECESS WTR DISP
143PAD RECESS WATER SW
144CLAMP HOSE
144GROMMET WATER FILL LNR
145PLATE RECESS SWITCH MTG
146SWITCH PLUNGER
147BRACKET RECESS SWITCH
148COVER RECESS SWITCH
150GEN WR38X5254
153WR1X1505D GE Refrigerator Screw Package of 12
177SCREW
178GEN WR02X6058
179SCREW
181GEN WZ06X0105
203RETNR BRKR-TOP FF & FZ
204RETAINER BREAKER-BTM.
204RETAINER BREAKER
217CLIP EVAP COVER
223GASKET DRAIN TROUGH
227GEN WR02X4838
229GEN WR02X4982
229REFRIGERANT 6.5 OZ.
244SUPPORT-R. SIDE
245SUPPORT-L. SIDE
249GEN WR17X1414
253RIVET POP
276GEN WR01X1510
307GEN WR02X4493
325GEN WR02X4396
371GEN WR02X4254
388GEN WR14X0266
422GEN WR01X1332
436GEN WR02X4849
449NUTSTRIP TOP HINGE
453NUT STRIP
459GEN WR02X7031
460GEN WR02X4739
461GEN WR02X7033
461SCREW 8-32X3/8
550GEN WZ05
