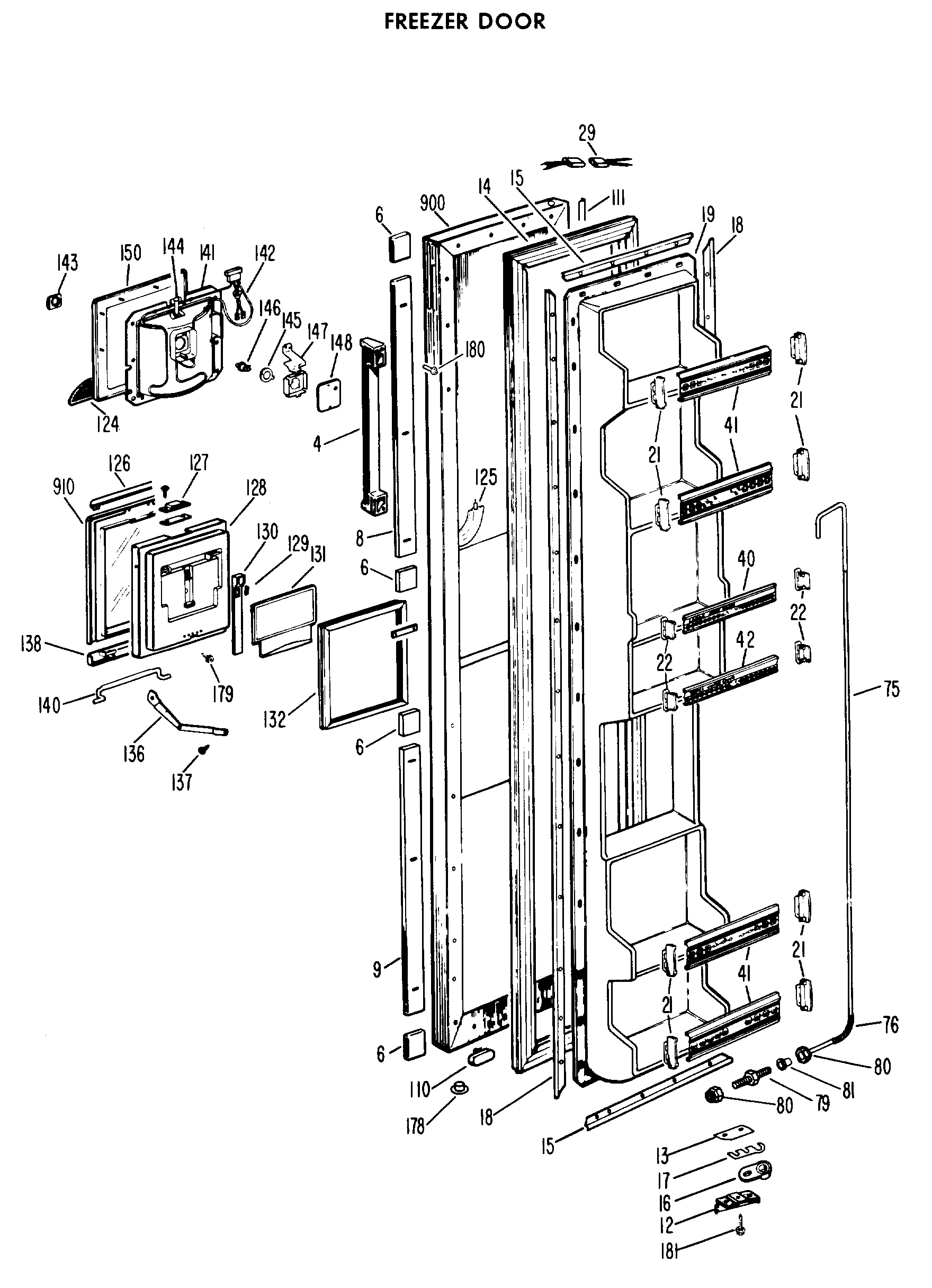

CSF22TBM FREEZER DOOR

CSF22TBM FREEZER DOOR

Written by

in

CSF22TBM FREEZER DOOR

Products

PositionProduct
3GEN WR02X3757
4GEN WR12X5148
4END CAP-HANDLE
4GEN WR12X5149
4GEN WR01X5476
5GEN WR01X5473
6GEN WR12X5106
7GEN WR01X1246
7GEN WR01X5349
8GEN WR38X5351
9TRIM DOOR
11GEN WR01X5469
12GEN WR02X4537
13GEN WR01X0993
13GEN WR02X4540
13GEN WR02X4599
14GEN WR24X0252
15GEN WR17X1231
16WR2X4901 GE Door Hinge Cam Riser
18GEN WR17X1169
19DOOR INNER FZ
21GEN WR02X4100
22GEN WR02X5795
28CLIP SPEED
29GEN WR49X5103
29GEN WR49X5102
40GEN WR17X5969
41GEN WR17X5968
42GEN WR17X5970
75TUBE WATER LINE ASM DISP
76GEN WR02X4633
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
87WZ4X241D GE Screw Package
106GEN WR22X5066
106GEN WR01X5438
110GEN WR02X4678
111GEN WR38X0906
124GEN WR02X6228
125HEATER BRKR FRAME ASM
126HANDLE MINI DOOR ASM
127HOUSING LATCH MINI DOOR
127SPRING LATCH MINI DOOR
127LATCH MINI DOOR
128INSUL MINI DOOR
128DOOR INNER MINI
129SPRING
130SLIDE HOOK MINI DR
131GEN WR02X6391
131HOOK MINI DOOR
132GASKET MINI DOOR
133RETAINER STRIP
134RETAINER STRIP MINI DOOR
135GEN WR10X5030
136STOP DOOR-L. SIDE
136STOP DOOR-R. SIDE
137CLIP U
137SCR DOOR STOP
138CLIP MINI DOOR LATCH
138BASE HINGE MINI DOOR
140SCR 8-18 BAT HX 7/8SSXTW
140HINGE MINI DOOR
141RECESS WATER DISP
142GASKET RECESS DISP
142HARNESS RECESS WTR DISP
143PAD RECESS WATER SW
144GROMMET WATER FILL LNR
144CLAMP HOSE
145PLATE RECESS SWITCH MTG
146SWITCH PLUNGER
147BRACKET RECESS SWITCH
148COVER RECESS SWITCH
150GEN WR38X5352
153WR1X1505D GE Refrigerator Screw Package of 12
154SCR SPECIAL 10-16
177SCREW
178GEN WR02X6058
179SCREW
181GEN WZ06X0105
203RETNR BRKR-TOP FF & FZ
204RETAINER BREAKER
204RETAINER BREAKER-BTM.
211GEN WR21X5080
214GEN WR01X1332
215CLIP EVAP COVER
217GEN WR02X7257
221GASKET DRAIN TROUGH
225GEN WR02X4838
225GEN WR01X5042
228GEN WR02X4982
244SUPPORT-R. SIDE
245SUPPORT-L. SIDE
253RIVET POP
257WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
266BUCKET ICE
276GEN WR01X1510
292GEN WR01X1776
307GEN WR02X4493
371GEN WR02X4254
388GEN WR14X0266
424GEN WR09X0359
430CLIP-CONTROL HOUSING
435UNKNOWN
