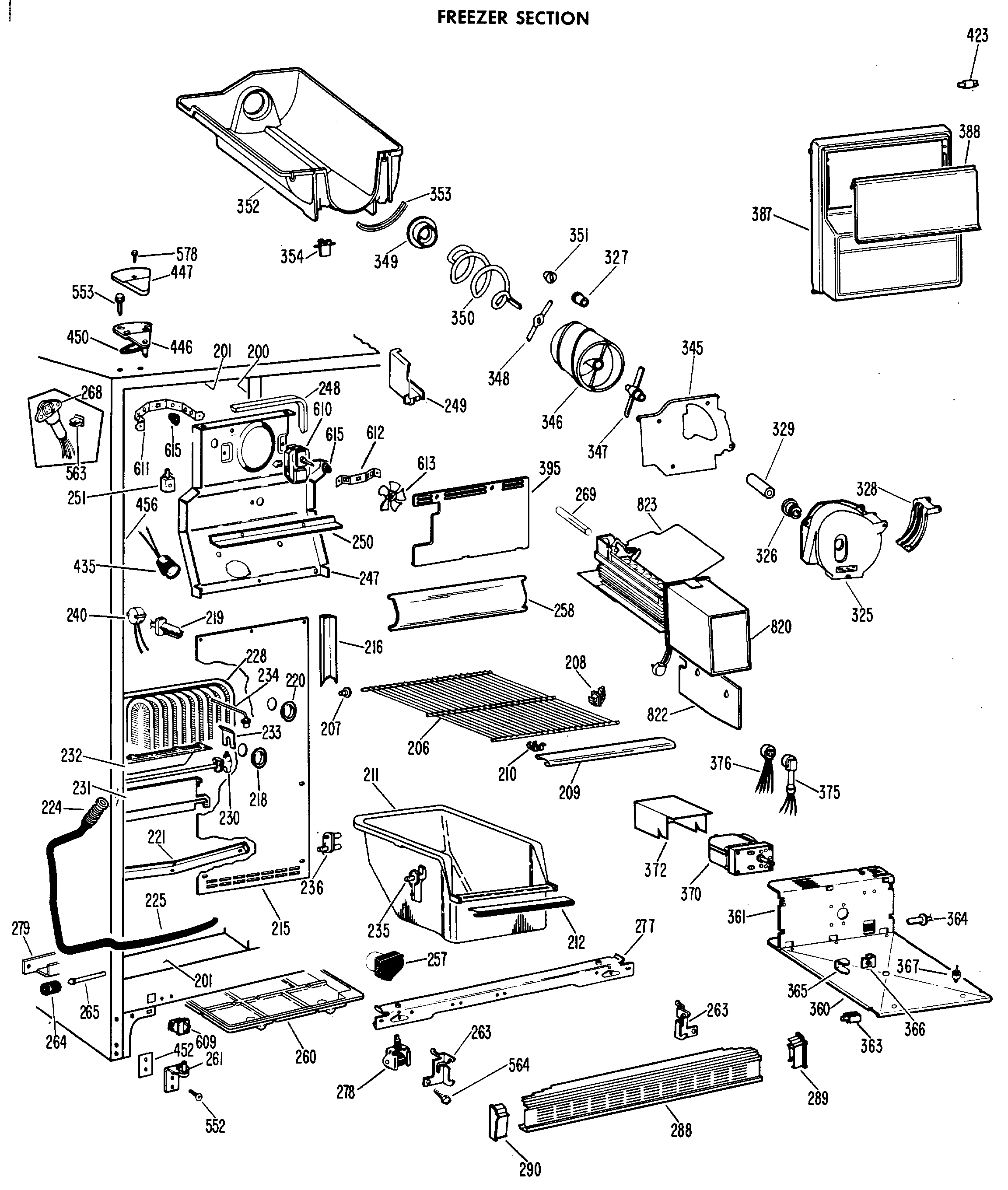

CSF24DBM FREEZER SECTION

CSF24DBM FREEZER SECTION

Written by

in

CSF24DBM FREEZER SECTION

Products

Position	Product
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
206	GEN WR71X1366
207	GEN WR02X4676
208	GEN WR02X4674
212	GEN WR02X6061
213	GEN WR38X5226
214	GEN WR14X0274
215	GEN WR17X1420
219	GEN WR02X4421
220	PLUG RECESSED
221	GEN WR17X1245
224	GEN WR02X4967
225	GEN WR02X7088
228	GEN WR85X0103
230	GEN WR02X4557
230	SHIELD DEF HTR END
231	GEN WR02X5008
232	GEN WR02X4970
234	GEN WR02X4546
236	GEN WR02X4548
237	GEN WR02X7036
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR17X1425
247	GEN WR02X4845
248	GEN WR14X0272
249	GEN WR17X1414
250	GEN WR02X4844
251	GEN WR02X2880
257	BRACKET DEF CONTROL
258	GEN WR17X1424
260	PAN WATER DISPOSAL ASM
260	GEN WR02X7074
261	WR49X5124 GE Refrigerator Hinge and Cam Assembly
263	GEN WR02X4098
263	GEN WR02X4099
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X4742
265	GEN WR02X3598
268	RECEPTACLE-ICEMAKER
269	GEN WR17X1058
269	GEN WR01X1543
277	GEN WR17X1487
278	WHEEL ASM FRT
279	GEN WR17X1490
288	GEN WR79X5145
289	GEN WR02X6383
290	CAP GRILLE L. SIDE
325	WR17X2061 GE Refrigerator Crush Dispenser
326	GEN WR01X1585
326	GEN WR01X1366
326	WR1X1367D GE Refrigerator Return Package 12
327	BUSHING HELIX DISP
328	WR2X4143 GE Refrigerator Pivot
328	DEFLECTOR ICE DISP
329	GEN WR02X6326
345	PLATE FRT DISP
347	BLADE HELIX DISP
348	GEN WR02X4137
349	WR2X4550 GE Refrigerator Drive Cup
350	WR17X4207 GE Refrigerator Front Helix
351	CONE AUGER DISP
352	BUCKET ICE DISP
353	WR2X7905 GE Refrigerator Bucket Seal
354	GEN WR02X4563
354	GEN WR02X4564
354	TAB BUCKET RETAINER DISP
360	SHELF ICE BUCKET
360	GEN WR02X4566
361	GEN WR17X1423
363	GEN WR02X4465
364	GEN WR02X4783
365	GEN WR02X4854
366	GEN WR01X1547
367	GEN WR02X4588
370	MOTOR AUGER DISP
372	WR02X11295 GE Refrigerator Auger Motor Boot
375	GEN WR23X0194
376	GEN WR23X0189
387	GEN WR17X5979
388	GEN WR17X5884
395	GEN WR74X0139
423	GEN WR02X6347
435	SOCKET LAMP
446	HINGE TOP-FRZ DOOR
447	COVER HINGE
450	GEN WR02X4194
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
552	SCR 12-24 TT HXW 1 3/64S
563	WZ4X241D GE Screw Package
563	GEN WR01X1326
564	GEN WR01X1194
578	WZ2X464D GE Screw
609	WR23X37285 GE Light Switch
610	GEN WR60X0131
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
822	SHIELD BODY
823	SCR 12-24 TT HXW 1 3/64S
