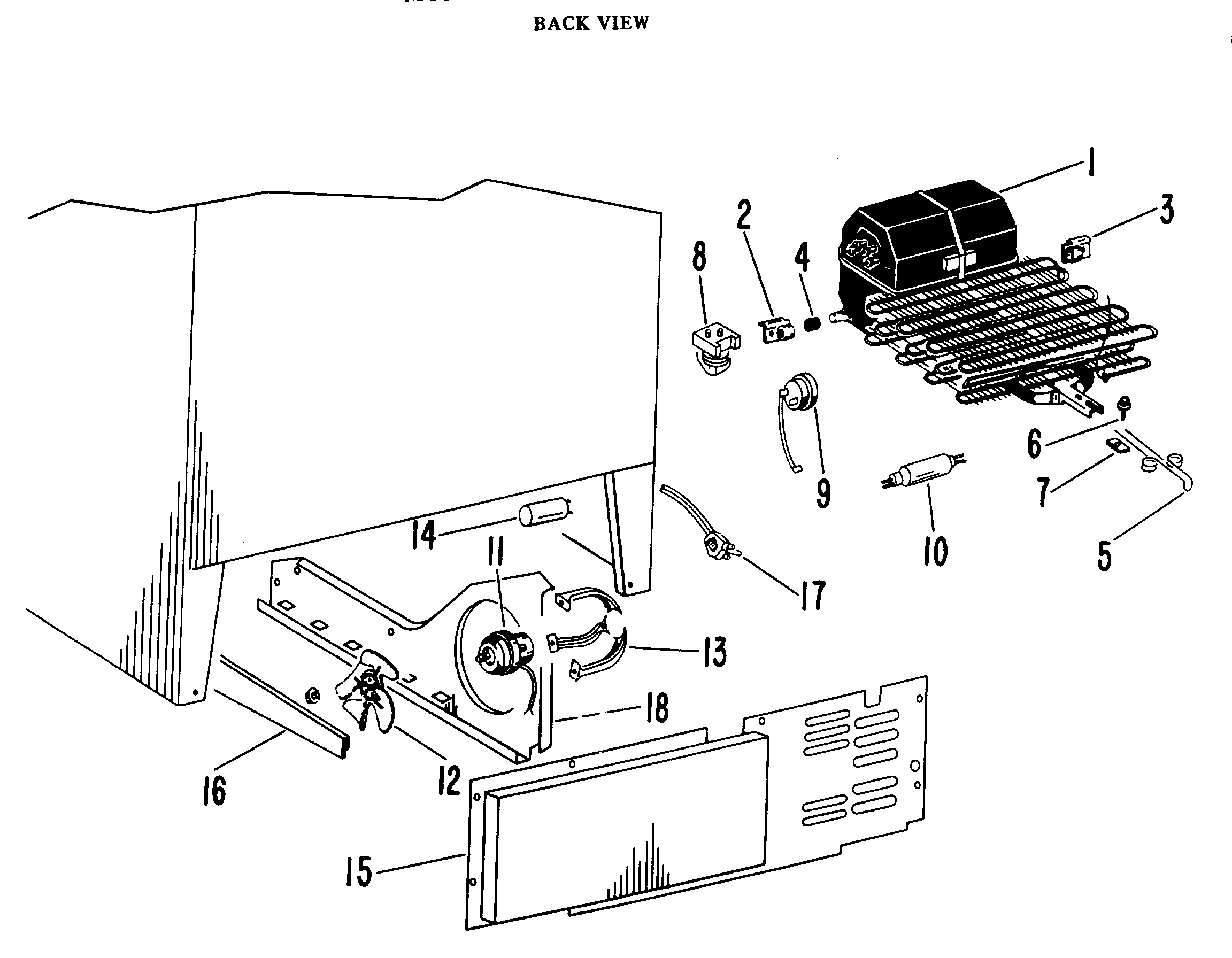

| 1 | REFRIGERANT 6 OZ. |
| 1 | WR87X10082 GE Refrigerator Compressor Replacement Kit |
| 2 | CUP & BRACKET ASM-L. SIDE |
| 3 | CUP & BRACKET ASM-R. SIDE |
| 4 | SCREW BRACKET |
| 4 | SLEEVE COMP MTG |
| 5 | SPRING-FRONT UNIT MOUNTI |
| 6 | GEN WZ06X0080 |
| 7 | NUTSTRIP COMP MTG D/J |
| 8 | GEN WR02X3583 |
| 8 | COVER RELAY |
| 8 | GEN WR07X0105 |
| 9 | GEN WR08X0032 |
| 10 | WR86X25269 GE Refrigerator R134 Dryer |
| 11 | WR60X177 GE Condenser Fan Motor |
| 12 | GEN WR01X1308 |
| 12 | GEN WR60X0042 |
| 13 | BRACKET - MOUNTING |
| 13 | SCREW FAN MTR/BRKT |
| 14 | SCREW |
| 14 | CLAMP (KMB-KMC) |
| 14 | CAPACITOR (KMB-KMC) |
| 15 | CLIP |
| 15 | COVER-ACCESS |
| 16 | BAFFLE AIR EXTN BTM |
| 17 | WR23X10300 GE Refrigerator Power Cord Assembly |
| 18 | GEN WR17X0995 |
