CSF24ELD 2

Written by

CSF24ELD 2

Products

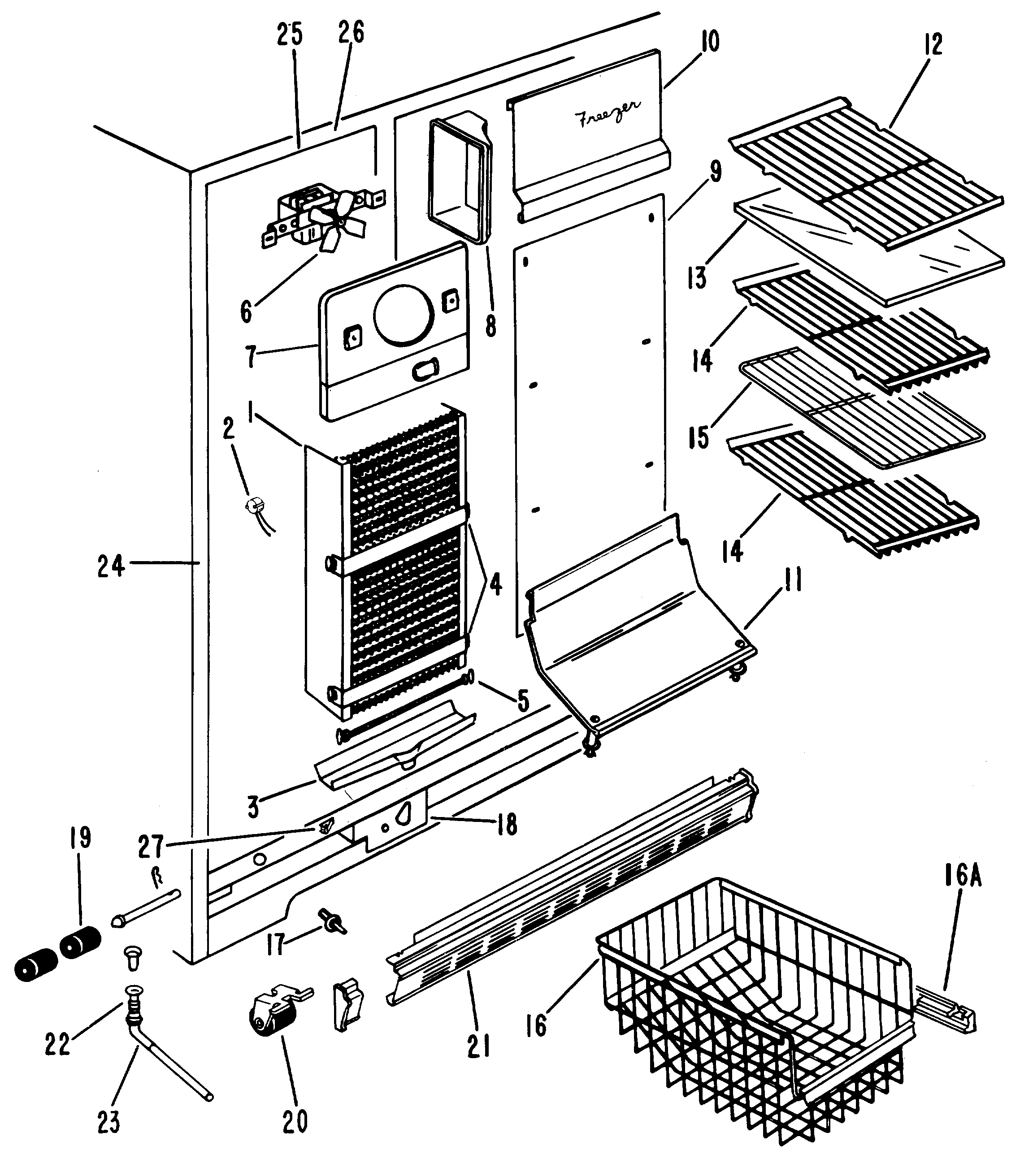

Position	Product
1	LOW SIDE KIT
2	WR50X50 GE Refrigerator Defrost Thermostat 50 Degree with Clip
3	GEN WR17X5007
3	DRAIN TROUGH GASKET – LH
3	SCREW -COVER TO COIL
3	GEN WR14X5006
3	DRAIN TROUGH GASKET – RH
4	COVER – HEATER SHIED
4	BRACKET – HEATER MTG.
4	GEN WR23X5014
4	COVER – HEATER
5	GEN WR51X5149
6	MOUNTING BRACKET – SMALL
6	MTG. BRACKET-REAR
6	GEN WR02X2945
6	GEN WR60X0085
6	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
6	BAFFLE – FRONT
7	GEN WR14X5091
7	FREEZER FAN ORIFICE & TAPE ASM.
8	SCREW
8	GEN WR17X5005
9	GASKET-COIL COVER-LH
9	GEN WR17X5633
9	GASKET-COIL COVER-RH
10	GASKET-FAN COVER
10	GEN WR02X5031
10	GEN WR02X5848
11	WZ4X230D GE Screw Package 12
11	GEN WR02X5809
11	GEN WR17X5634
12	SHELF-TOP
13	SUPPORT-L. SIDE
13	SHELF – SOLID
13	SUPPORT-R. SIDE
13	GEN WR02X5008
13	GEN WR38X5149
13	GEN WR38X5148
14	GEN WR71X5003
15	GEN WR38X5005
15	GEN WR38X5004
15	GEN WR71X5699
15	GEN WR02X3440
16	GEN WR21X5068
16	GEN WZ04X0244
16	GEN WR02X5048
16	SLIDE (RH) – BASKET
16	SLIDE (LH) – BASKET
17	GEN WR02X3887
17	RECEPTACLE W/LEADS
18	DEFROST TIMER (KMB-KMC)
18	BRACKET – CONTROL
19	GEN WR02X3598
19	WR2X3594 GE Refrigerator Wheel
19	AXLE-ROLLER
20	GEN WR02X5897
20	GEN WR02X5813
20	GEN WR01X5353
21	GEN WR79X5106
21	END CAP GRILLE R/SIDE
21	END CAP GRILLE L/SIDE
22	GEN WR02X5814
23	GEN WR01X5042
23	DRAIN TUBE EXTENSION – (
24	GEN WR02X4334
24	BREAKER STRIP-HINGE SIDE
25	RETAINER BREAKER
25	RETAINER BREAKER
25	BREAKER STRIP-TOP & BTM.
26	GEN WR05X5147
27	GEN WZ02X0465
27	GEN WR10X5028
