CSF24KMB 1

CSF24KMB 1

Written by

in

CSF24KMB 1

Products

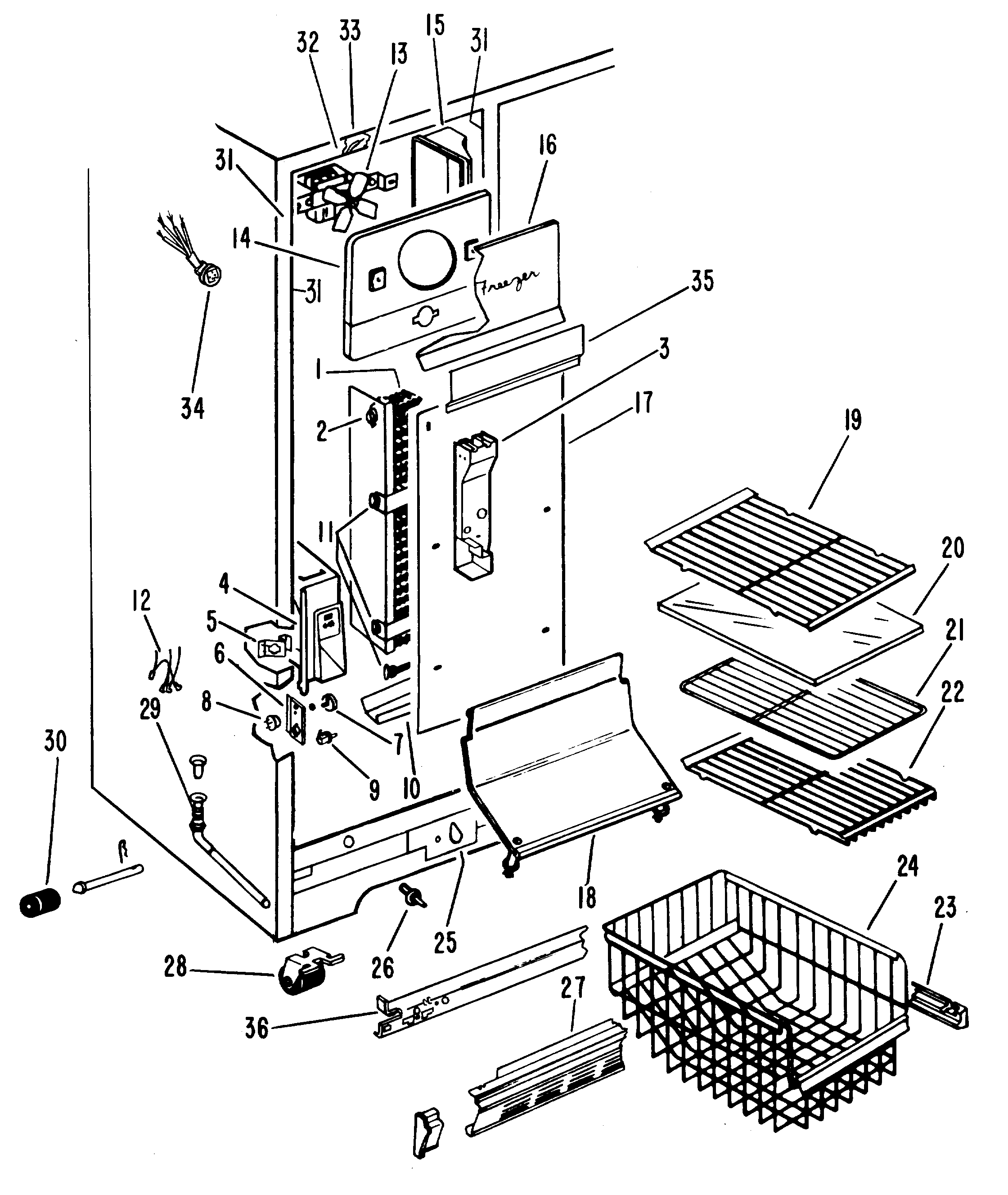

Position	Product
1	LOW SIDE KIT
2	WR50X50 GE Refrigerator Defrost Thermostat 50 Degree with Clip
3	GEN WR02X5958
3	GEN WR17X5630
3	PLUG BUTTON
4	GEN WR01X5354
4	GEN WR02X5853
4	GEN WR17X5631
4	GEN WR02X5334
5	GEN WR02X5845
6	GEN WR02X5846
7	GEN WR02X5847
7	GEN WR01X5397
8	GEN WR23X5099
9	GEN WR23X5115
10	DRAIN TROUGH GASKET – RH
10	DRAIN TROUGH GASKET – LH
10	GEN WR14X5006
10	GEN WR17X5007
11	GEN WR02X4338
11	GEN WR51X5149
11	SCREW -COVER TO COIL
11	COVER – HEATER SHIED
11	COVER – HEATER
11	BRACKET – HEATER MTG.
11	GEN WR02X4336
12	GEN WR23X5118
13	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
13	SCR 8-18 AB HX 3/8 S
13	MTG. BRACKET-REAR
13	FAN MOTOR – EVAP.
13	MOUNTING BRACKET – SMALL
13	GEN WR02X2945
14	GEN WR14X5091
14	FREEZER FAN ORIFICE & TAPE ASM.
15	GEN WR17X5005
15	SCREW
16	CLIP EVAP COVER
16	GEN WR01X5337
16	GASKET-FAN COVER
16	GEN WR02X5959
16	GEN WZ04X0244
17	GEN WR01X5035
17	GASKET-COIL COVER-RH
17	GASKET-COIL COVER-LH
17	GEN WR17X5633
18	GEN WR17X5634
18	WZ4X230D GE Screw Package 12
18	GEN WR02X5809
19	SHELF-TOP
19	SHELF SUPPORT-FRONT & RIGHT SIDE
20	SUPPORT-R. SIDE
20	SUPPORT-L. SIDE
20	GEN WR38X5148
20	GEN WR38X5149
20	SHELF – SOLID
21	GEN WR71X5699
22	GEN WR38X5004
22	GEN WR38X5005
22	GEN WR02X3440
22	GEN WR71X5003
23	SLIDE (LH) – BASKET
23	SLIDE (RH) – BASKET
23	SCREW – COVER TO CLIP
24	GEN WR02X6005
24	GEN WR21X5072
24	GEN WR02X5008
25	CONTROL – DEFROST TIMER
25	DEFROST TIMER (KMB-KMC)
25	BRACKET – CONTROL
26	SWITCH – FAN & LIGHT – F
26	RECEPTACLE W/LEADS
27	END CAP GRILLE R/SIDE
27	END CAP GRILLE L/SIDE
27	GEN WR79X5106
28	HOUSING & WHEEL
28	GEN WR01X5353
29	DRAIN TUBE EXTENSION – (
29	GEN WR02X5814
29	GEN WR01X5042
30	AXLE-ROLLER
30	GEN WR02X3598
30	WR2X3594 GE Refrigerator Wheel
31	RETAINER BREAKER
31	GEN WR40X5405
31	GEN WR02X6159
31	GEN WR40X5404
32	SHIM HINGE BTM.
