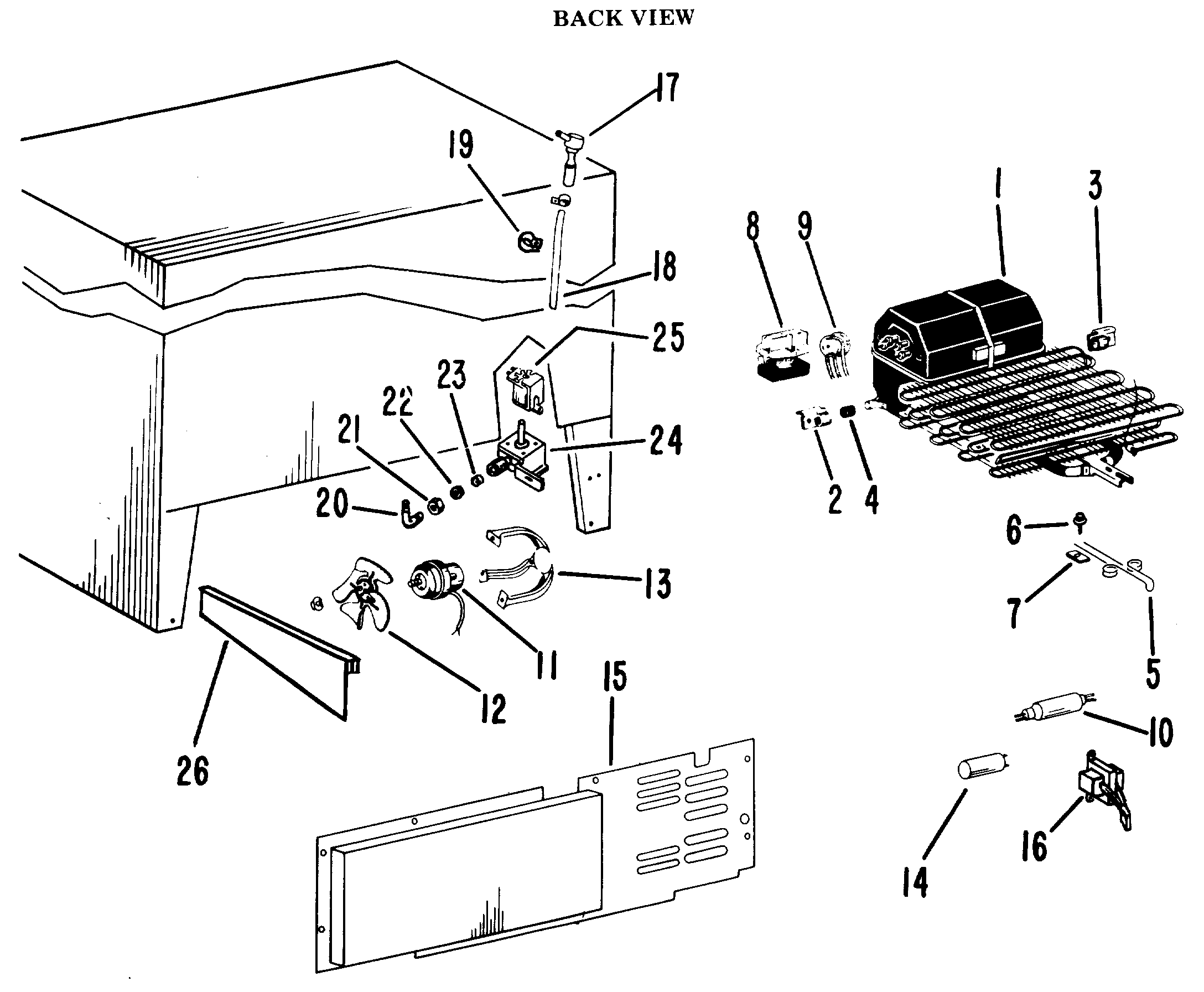

CSF24KMC BACK VIEW

Products

Position	Product
1	REFRIGERANT
1	WR87X10082 GE Refrigerator Compressor Replacement Kit
2	GEN WR02X3734
3	GEN WR02X3735
4	SLEEVE COMP MTG
4	SCREW BRACKET
5	SPRING-FRONT UNIT MOUNTI
6	GEN WZ06X0080
7	NUTSTRIP COMP MTG D/J
8	COVER RELAY
8	GEN WR02X3583
8	GEN WR07X0124
8	GEN WR07X0105
9	GEN WR08X0044
9	GEN WR08X0034
10	WR86X25269 GE Refrigerator R134 Dryer
11	WR60X177 GE Condenser Fan Motor
12	GEN WR01X1308
12	GEN WR60X0042
13	BRACKET – MOUNTING
14	CLAMP (KMB-KMC)
14	CAPACITOR (KMB-KMC)
15	COVER-ACCESS
15	CLIP
16	GEN WR62X5009
17	WATER FILL GROMMET – OUT
18	GEN WR17X0750
18	WR57X57 GE Refrigerator Nut
19	SCREW
19	WR2X4754 GE Refrigerator Fill Clamp
20	ELBOW
21	NUT-VALVE INLET
22	WASHER-NUT
23	GEN WR57X0049
24	WATER VALVE ASM
24	SCREW FAN MTR/BRKT
25	COIL ASM. – VALVE
26	BAFFLE AIR EXTN BTM
