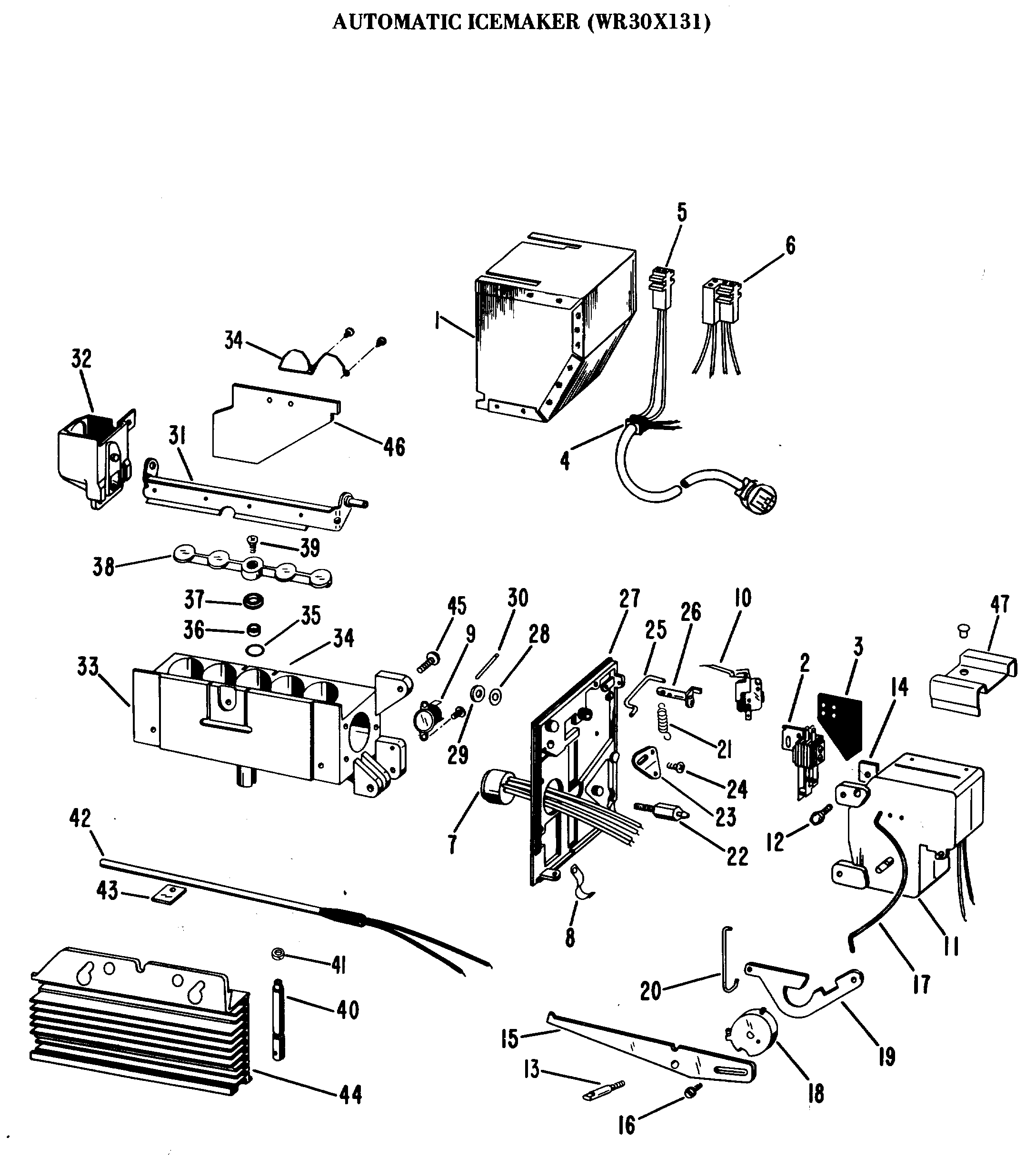

| 1 | COVER IM MOTOR ASM |
| 1 | GEN WR01X1332 |
| 2 | GEN WR23X0103 |
| 3 | GEN WR01X1201 |
| 3 | GEN WR01X1235 |
| 3 | GEN WR02X3754 |
| 4 | GEN WR23X5104 |
| 5 | GEN WR23X0104 |
| 6 | GEN WR23X0130 |
| 7 | THERMOSTAT IM ASM |
| 9 | GEN WR01X1205 |
| 9 | GEN WR50X0008 |
| 9 | GEN WR02X5852 |
| 10 | GEN WR01X1237 |
| 10 | GEN WR01X1213 |
| 10 | GEN WR23X5105 |
| 10 | GEN WR01X1337 |
| 11 | GEN WR29X0052 |
| 12 | GEN WR01X1198 |
| 13 | GEN WR01X1349 |
| 13 | GEN WR01X1199 |
| 14 | GEN WR02X3642 |
| 15 | EJECTOR LEVER |
| 16 | GEN WR01X1200 |
| 17 | SPRING IM EJECTOR LEVER |
| 18 | GEN WR29X0015 |
| 19 | GEN WR29X0016 |
| 20 | GEN WR29X0001 |
| 21 | GEN WR29X0018 |
| 22 | GEN WR29X5099 |
| 23 | GEN WR29X0019 |
| 24 | GEN WR01X1236 |
| 25 | GEN WR29X5100 |
| 26 | GEN WR29X5101 |
| 27 | GEN WR01X1207 |
| 27 | SCREW - PLATE TO MOLD |
| 27 | GEN WR29X0041 |
| 28 | GEN WR01X1240 |
| 29 | GEN WR01X1241 |
| 30 | GEN WR29X0029 |
| 31 | GEN WR29X0037 |
| 31 | GEN WR29X0058 |
| 31 | GEN WR01X1254 |
| 32 | SCR 8-32 C HXW 5/8 S |
| 32 | GEN WR29X0007 |
| 33 | WZ4X241D GE Screw Package |
| 33 | GEN WR30X5077 |
| 33 | GEN WR01X1126 |
| 33 | SCREW - PAN HEAD RECESS |
| 34 | GEN WR01X1204 |
| 34 | GEN WR29X5102 |
| 35 | GEN WR29X0040 |
| 36 | BEARING IM EJECTOR ROD |
| 37 | WASHER O RING RETAINER |
| 38 | GEN WR29X0031 |
| 39 | WD2X5166 GE Dishwasher Screw |
| 40 | ROD ASSEMBLY - EJECTOR |
| 41 | BEARING IM EJECTOR ROD |
| 42 | GEN WR51X0164 |
| 43 | GEN WR01X1212 |
| 43 | CLAMP IM HTR |
| 44 | GEN WR17X0970 |
| 45 | GEN WR01X1352 |
| 45 | GEN WR01X1353 |
| 46 | GEN WR01X5366 |
| 46 | SHIELD-MOLD SIDE |
| 46 | GEN WR02X1242 |
| 47 | WR97X163 GE Refrigerator Silicone |
| 47 | GEN WR97X0162 |
| 47 | GEN WR97X0167 |
| 47 | GEN WR97X0110 |
| 47 | GEN WR97X0165 |
| 47 | GEN WR97X0166 |
| 47 | GEN WZ04X0243 |
| 47 | GEN WR02X5956 |
| 47 | THERMAL MASTIC THERMOSTA |
| 47 | SILICONE LUBRICANT-EJECT |
