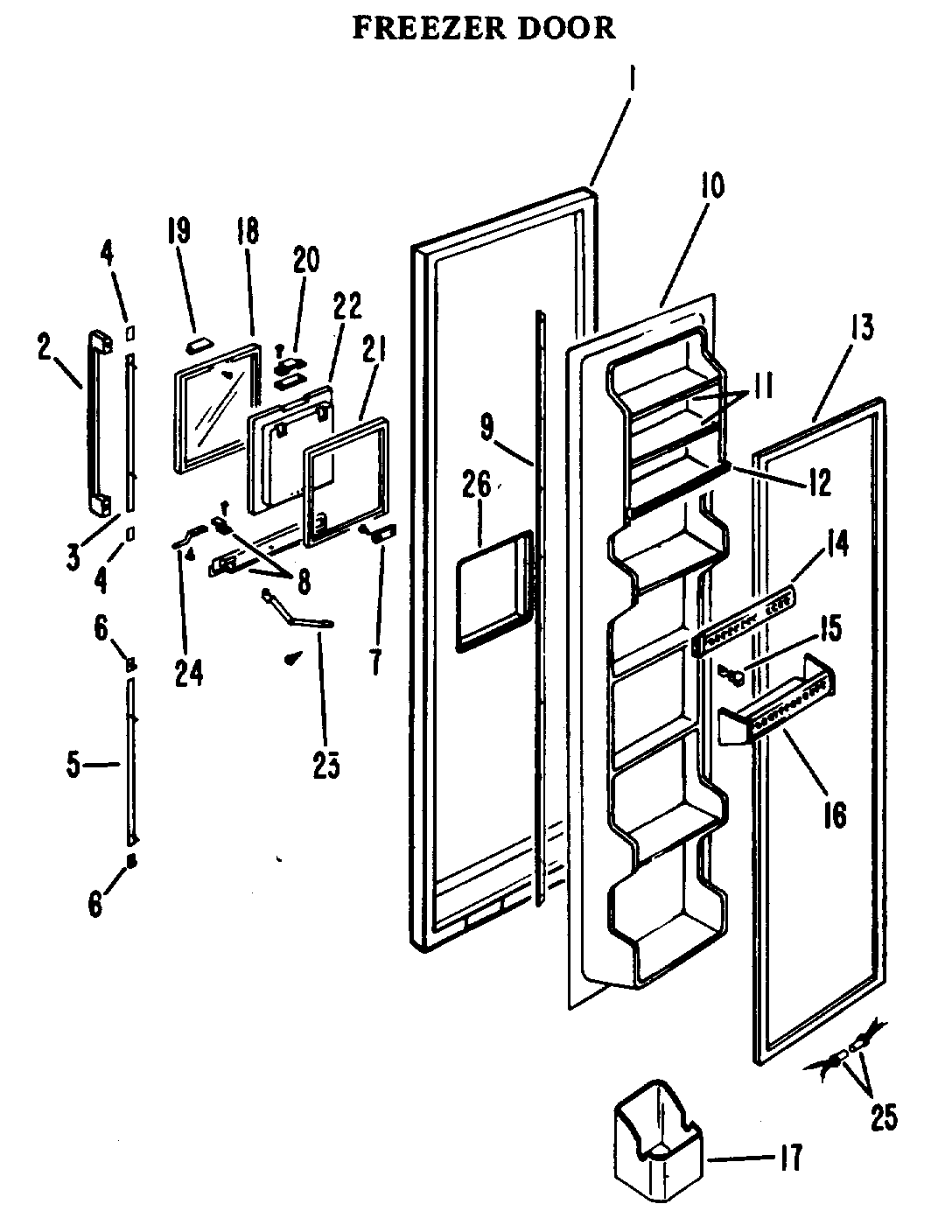

CSF24KMD FREEZER DOOR

Products

Position	Product
1	GEN WR78X6000
1	GEN WR78X5999
1	GEN WR78X5998
1	GEN WR78X6001
2	GEN WR01X5345
2	GEN WR12X5099
3	GEN WR03X5071
4	GEN WR12X5104
5	GEN WR01X5349
5	FASTENER
5	GEN WR03X5075
6	GEN WR12X5106
7	GEN WR02X5831
7	GEN WZ05X0190
8	CLIP SPEED
8	GEN WR02X5833
8	GEN WR02X5832
8	SCR 8-15 A PA 3/4 SS
9	RETAINER – HANDLE SIDE
9	RETAINER – HINGE SIDE
9	RETAINER – TOP & BTM.
10	GEN WR77X5413
10	SCREW SW. CRADLE
11	FRONT TRIM
11	GEN WR02X5991
11	GEN WR02X5732
12	GEN WR02X5992
12	FRONT-JUICE CAN
13	GEN WR24X5113
14	DOOR SHELF FRONT (1ST, 4TH & 5TH)
14	GEN WR02X4100
15	GEN WR02X5834
15	GEN WR01X5358
15	GEN WR02X5835
15	WZ4X230D GE Screw Package 12
16	ADJUSTABLE SHELF
17	GEN WR30X5076
18	GEN WR17X5624
18	GEN WR17X5625
18	GEN WR17X5626
18	GEN WR17X5627
19	GEN WR02X5836
19	GEN WZ05X0191
20	GEN WR02X5837
20	GEN WZ04X0244
20	GEN WR02X5838
21	RETAINER STRIP
21	GEN WR17X5629
21	GEN WR24X5117
21	GEN WZ05X0124
22	GEN WR77X5378
22	GEN WR82X5031
22	CLIP U
23	STOP DOOR-R. SIDE
23	SCR DOOR STOP
23	STOP DOOR-L. SIDE
24	GEN WR13X5113
24	GEN WR13X5112
24	SCR 8-18 BAT HX 7/8SSXTW
25	GEN WR02X3925
26	HEATER
