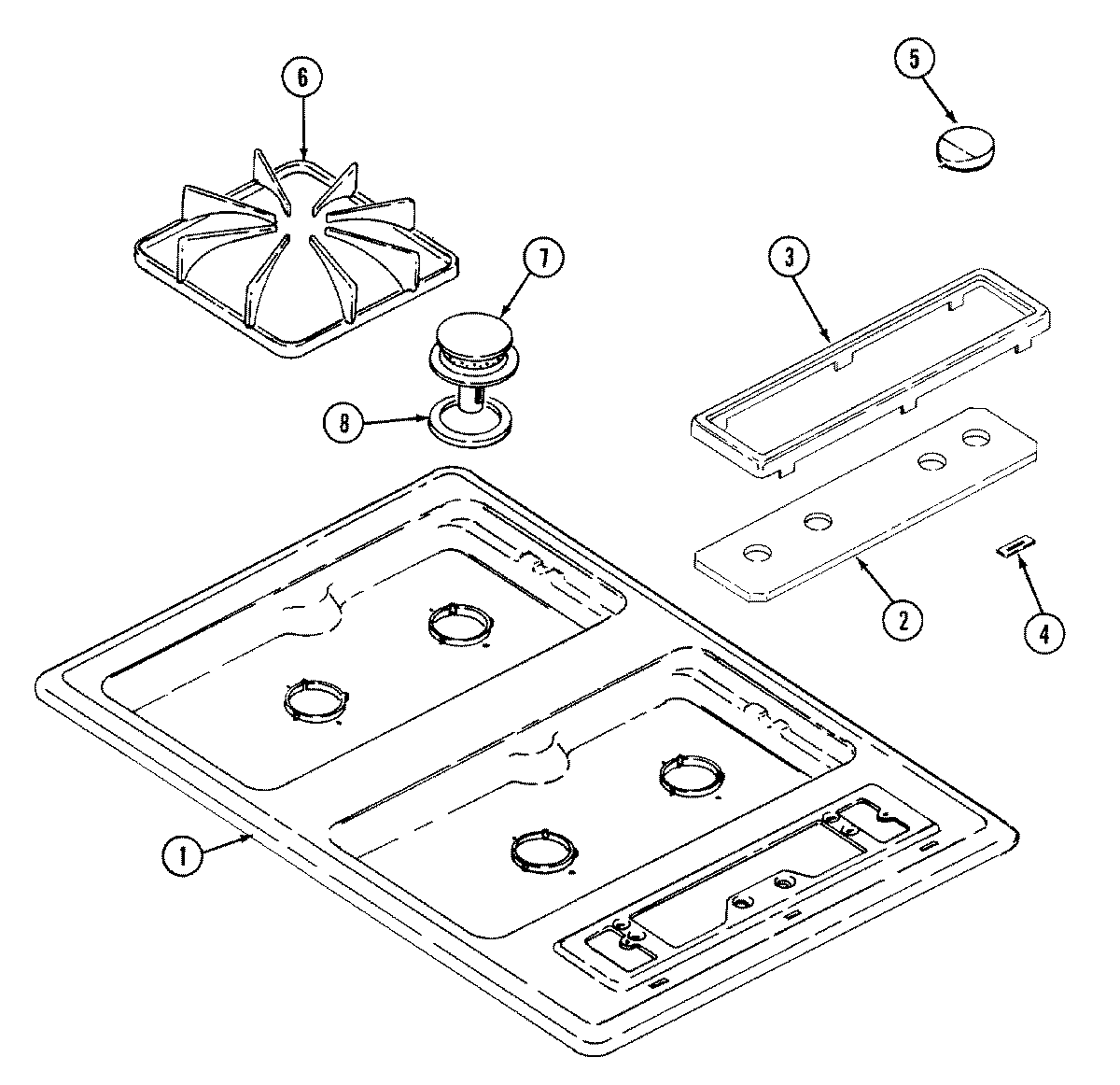

CSG5600CAD 02 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8111P017-60
NI	MAY 74003313
NI	MAY 5125A234-60
NI	MAY 5111A261-60
NI	MAY 5111A610-60
1	MAY 2001W092-30
2	MAY 74001298
2	MAY 7208P015-60
3	MAY 7720P124-60
4	MAY 7112P076-60
5	MAY 74001465
6	MAY 74001653
6	WP7518P464-60 Whirlpool Burner Grate
6	MAY 2003W027-00
7	MAY 3412D018-09
7	WP3412D024-09 Whirlpool Oven Burner Head
7	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
7	WP59002061 Whirlpool Microwave Screw
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	MAY 7201P050-60
