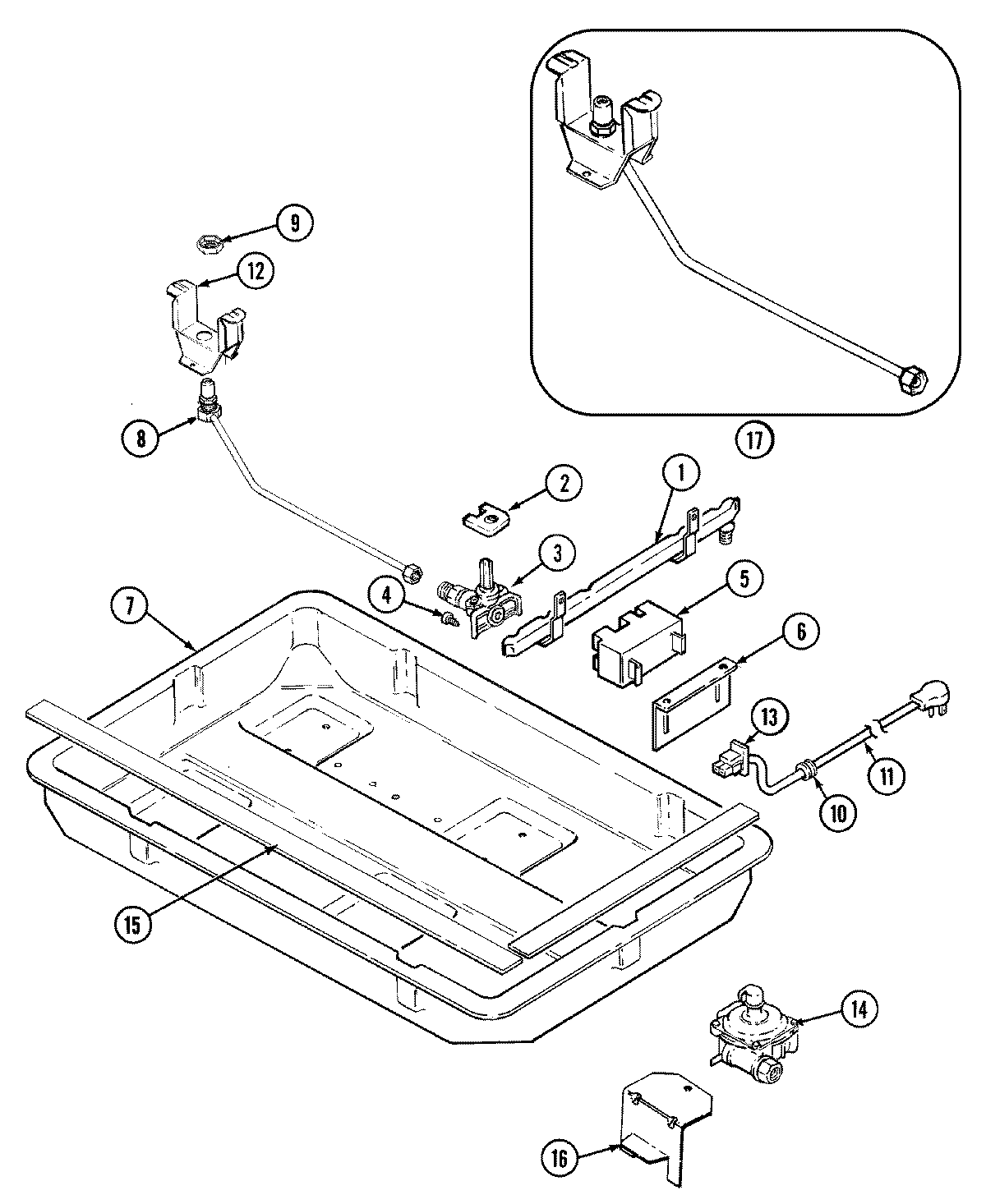

CSG7000BAB 01 – BODY (CSG7000BAx)

Products

Position	Product
NI	MAY 5125A234-60
NI	MAY 7208P019-60
NI	MAY 12400039
1	MAY 7513P098-60
2	WP7403P190-60 Whirlpool Switch
3	MAY 7502P254-60
3	MAY 7502P106-60
4	MAY 7101P043-60
5	MAY 7431P023-60
6	MAY 3801F304-45
6	MAY 7101P059-60
7	MAY 4011F212-80
8	MAY 7507P101-60
8	MAY 7507P103-60
9	MAY 7103P119-60
10	BUSHING, SNAP
11	MAY 7402P014-60
12	MAY 7101P290-60
12	MAY 3807F442-51
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 7401P017-60
13	MAY 7401P018-60
14	MAY 7510P002-60
15	MAY 12400021
16	MAY 3801F192-45
16	SCREW (10ABX1.0-ZN)
17	MAY 74002003
17	MAY 74002004
