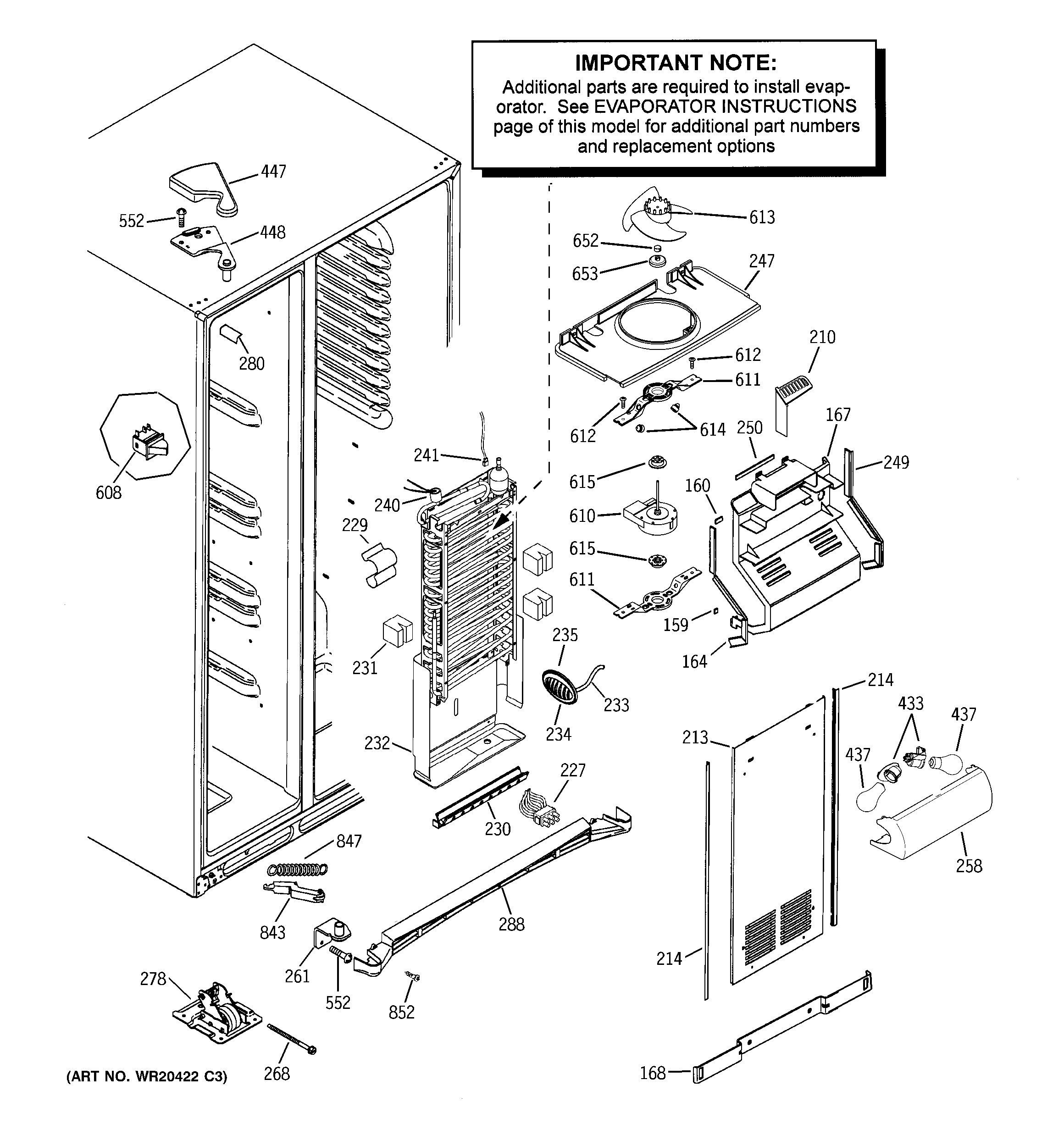

CSHS5UGXCSS FREEZER SECTION

CSHS5UGXCSS FREEZER SECTION

Written by

in

CSHS5UGXCSS FREEZER SECTION

Products

PositionProduct
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
164WR14X10164 GE Refrigerator Case Gasket
167GEN WR17X11977
168WR02X10674 GE Refrigerator Lower Tower Bracket
210WR74X10216 GE Refrigerator Plenum Extension
213WR17X11668 GE Refrigerator Cover Evaporator Front
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
227WR23X10487 GE Refrigerator AC Intermediate Harness
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X12642 GE Refrigerator Orifice Fan Assembly
249WR14X10165 GE Refrigerator Gasket Plenum
250WR14X10069 GE Adhesive Foam Strip
258WR17X11446 GE Refrigerator Light Shield
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10781 GE Refrigerator Corner Cap Black
288GEN WR74X10297
433WR2X9391 GE Socket and Terminal
437RANGE ONLY 40W 120V APPL BULB
447GEN WR02X12493
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10631 GE Screw
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843LEVER ASM FZ
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
