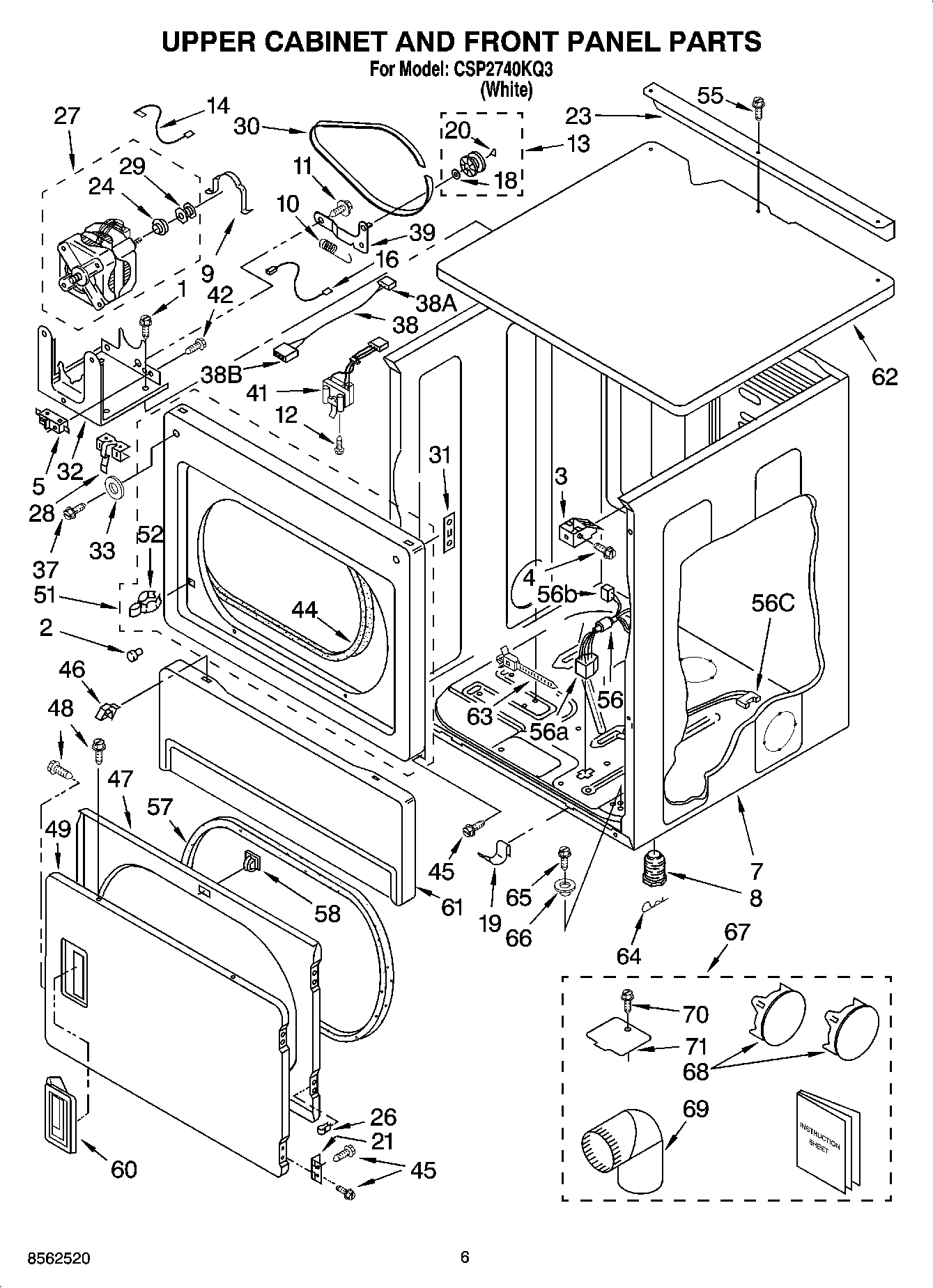

CSP2740KQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

CSP2740KQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

CSP2740KQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1SCREW
2693152 Whirlpool Bumper
33391846 Whirlpool Clip
4681615 Whirlpool Screw
7Cabinet (Upper)
8WP689172 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP3395530 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
143398948 Whirlpool Wire
16279782 Whirlpool Lid Switch
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
233979115 Whirlpool Bracket
24WP3393657 Whirlpool Belt Retainer
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28WP8066120 Whirlpool Lever Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
37WP3373329 Whirlpool Dishwasher Screw
388283298 Whirlpool Wire Harness
38B3936144 Whirlpool Connector
38AWP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
51Front Panel
55WP488729 Whirlpool Refrigerator Door Screw
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56APlug, Multi- Terminal 56B
568529991 Whirlpool Wire Harness
56C3395683 Whirlpool Connector
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
603389522 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
623389351 Whirlpool Top
63WP3391018 Whirlpool Wire Tie
64Cotter Pin
65285875 Whirlpool Security Kit
66BUSHING
67W10470674 Whirlpool Dryer Side Vent Exhaust Kit
694“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
71WPW10354249 Whirlpool Cover
