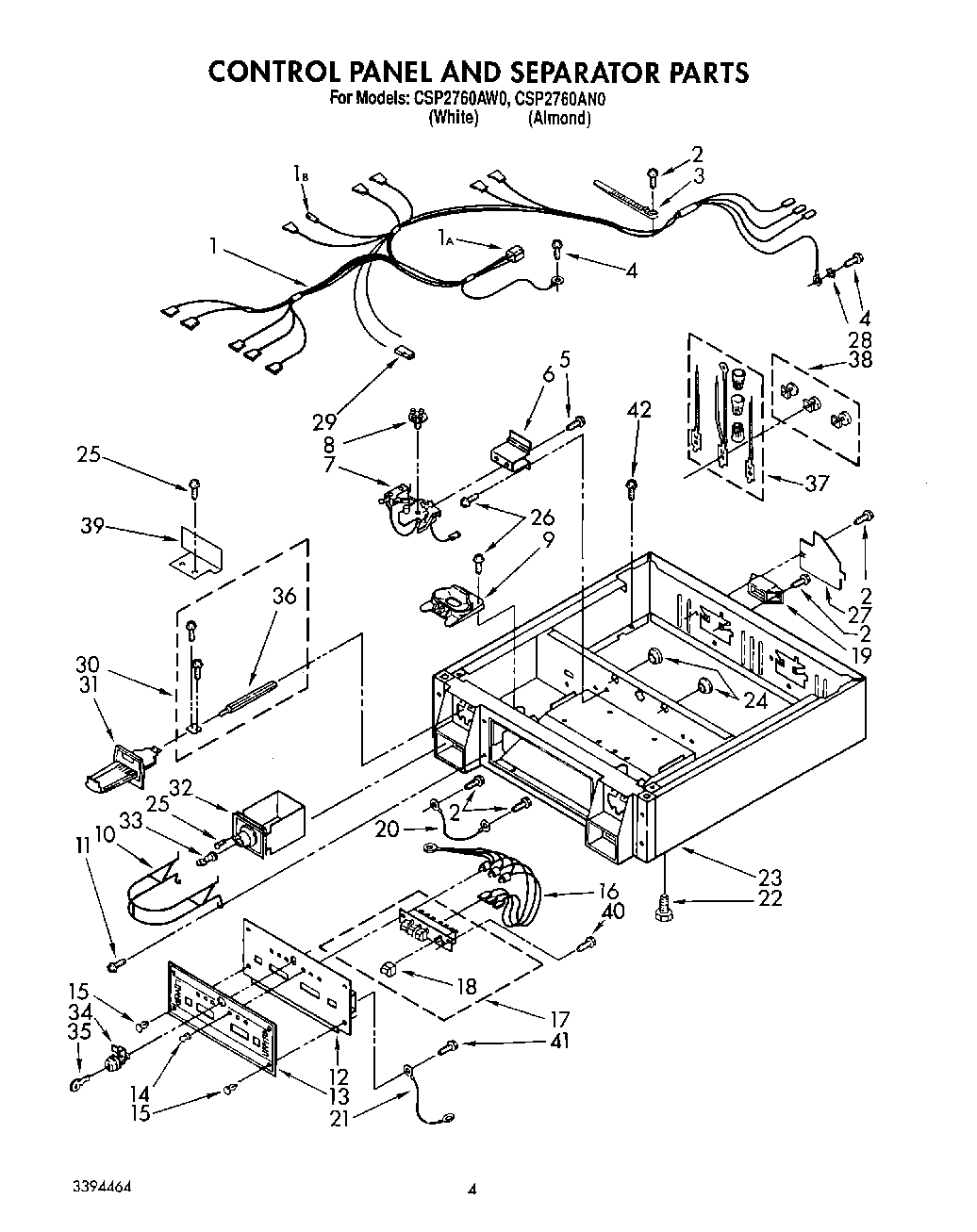

CSP2760AN0 02 – CONTROL PANEL AND SEPARATORadmin2025-04-26T09:37:06+00:00CSP2760AN0 02 – CONTROL PANEL AND SEPARATOR
Products
| Position | Product |
|---|
| 1 | WP94614 Whirlpool Terminal |
| 1 | Terminal (3) |
| 1 | Terminal (2) |
| 1 | Receptacle |
| 1 | Terminal (2) |
| 1 | Harness, Wire (2) |
| 1 | Receptacle (2) |
| 2 | WP308544 Whirlpool Screw |
| 3 | WPL 3389969 |
| 4 | W10850756 Whirlpool Screw |
| 6 | 3390115 Whirlpool Bracket Assembly |
| 7 | 279737 Whirlpool Dryer Load Timer |
| 8 | WP3387974 Whirlpool Cam |
| 8 | WP343777 Whirlpool Cam |
| 8 | WP339855 Whirlpool Cam |
| 9 | Funnel, Coin (2) |
| 10 | Protector, Slide (2) |
| 11 | Screw, 10-32 x 1/2 |
| 12 | Panel, Control |
| 13 | Insert, Decorative |
| 14 | Lens, Light (6) |
| 15 | Rivet |
| 16 | Indicator, Light (2) |
| 17 | SWITCH-PB |
| 18 | Button (4) |
| 19 | 279320 Whirlpool Dryer Rear Terminal Block Kit |
| 20 | Strut |
| 21 | Wire, Ground |
| 22 | WPL 122007 |
| 23 | Collar (White) |
| 23 | Collar (Almond) |
| 24 | Bushing, Snap (2) |
| 25 | WP356418 Whirlpool Screw |
| 26 | Screw (8) |
| 27 | W11736322 Whirlpool Cover Assembly |
| 28 | Retainer, Terminal (2) |
| 29 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 30 | Slide Extension Bag Assembly |
| 31 | Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination) |
| 32 | Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart |
| 33 | Key, Money Box (When Ordering, Specify Vender of Money Box Lock) |
| 34 | Security Lock & Cam Assembly |
| 35 | Key, Ser |
| 36 | WPL ARI22033A8 |
| 37 | 279318 Whirlpool Terminal |
| 38 | 279393 Whirlpool Terminal Block Screw and Nut Kit |
| 39 | 3390424 Whirlpool Extension |
| 40 | WP489128 Whirlpool Refrigerator Screw |
| 41 | 303776 Whirlpool Dishwasher Screw |
| 42 | WP489069 Whirlpool Compactor Screw |
