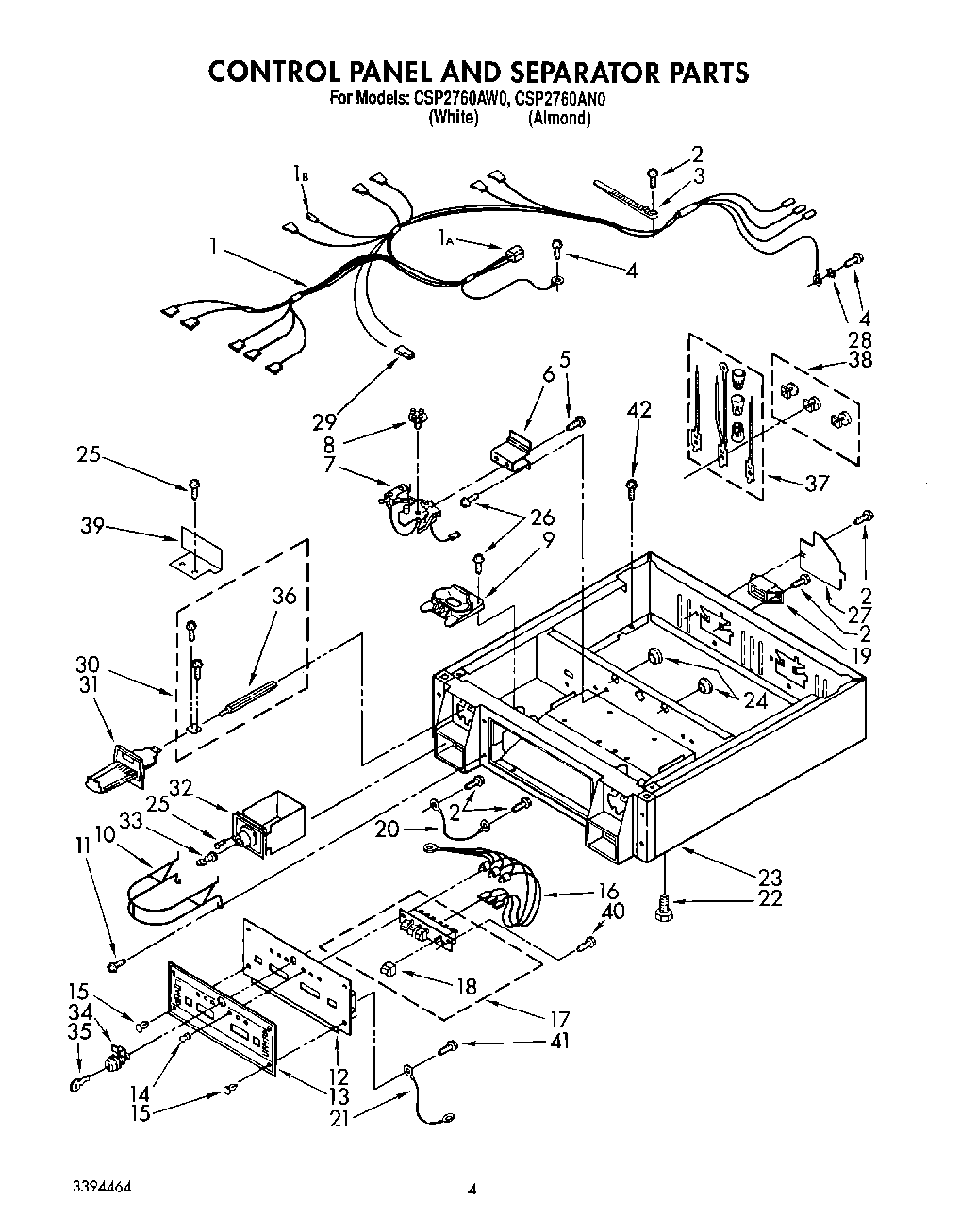

CSP2760AW0 02 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	WP94614 Whirlpool Terminal
1	Terminal (3)
1	Terminal (2)
1	Terminal (2)
1	Harness, Wire (2)
1	Receptacle (2)
1	Receptacle
2	WP308544 Whirlpool Screw
3	WPL 3389969
4	W10850756 Whirlpool Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP3387974 Whirlpool Cam
8	WP339855 Whirlpool Cam
8	WP343777 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Indicator, Light (2)
17	SWITCH-PB
18	Button (4)
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strut
21	Wire, Ground
22	WPL 122007
23	Collar (White)
23	Collar (Almond)
24	Bushing, Snap (2)
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11736322 Whirlpool Cover Assembly
28	Retainer, Terminal (2)
29	Receptacle, Latching (2-Way) (Uses Terminal 94614)
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key, Ser
36	WPL ARI22047A3
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
40	WP489128 Whirlpool Refrigerator Screw
41	303776 Whirlpool Dishwasher Screw
42	WP489069 Whirlpool Compactor Screw
