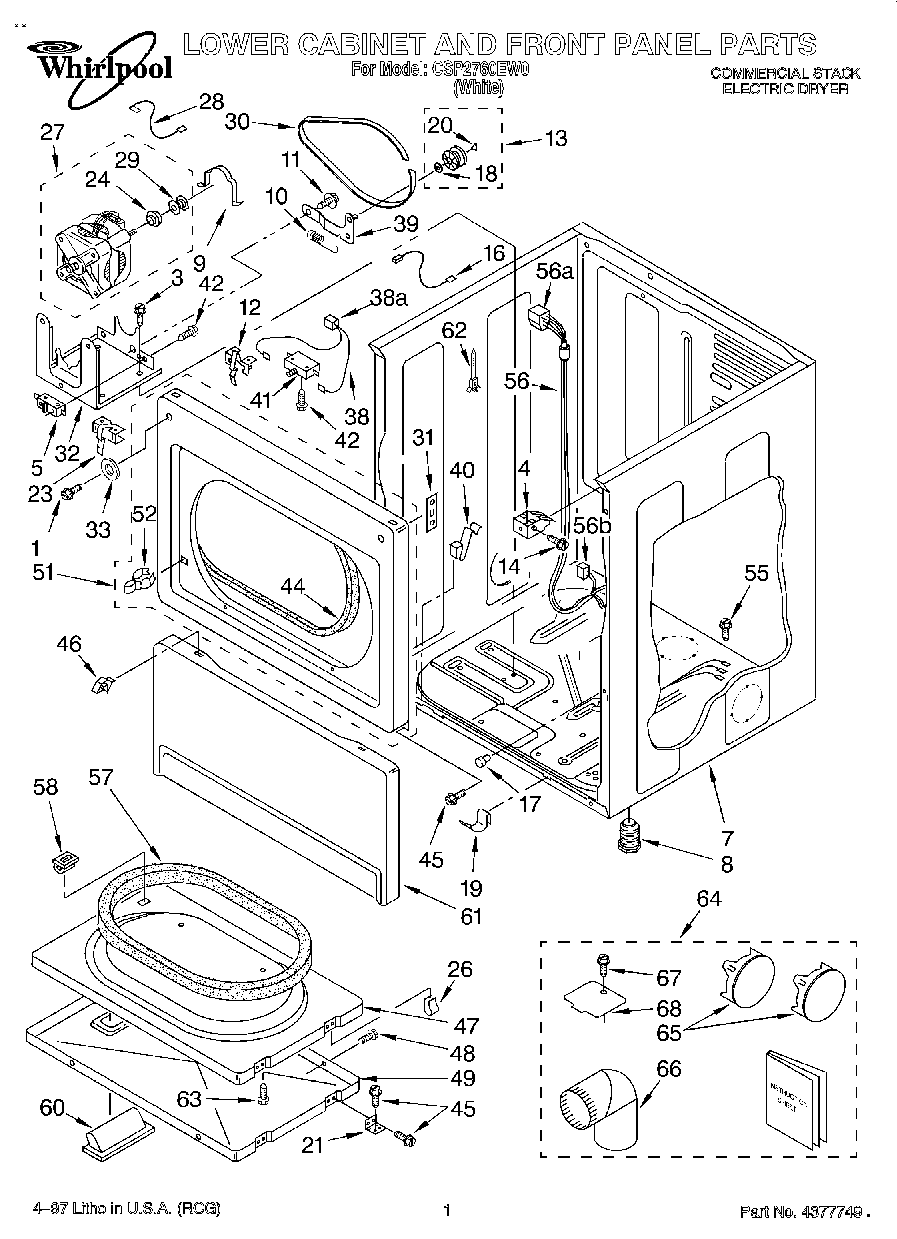

CSP2760EW0 01 – LOWER CABINET AND FRONT PANEL

CSP2760EW0 01 – LOWER CABINET AND FRONT PANEL

Products

PositionProduct
NIWPW10139210 Whirlpool Screw
1WP3373329 Whirlpool Dishwasher Screw
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
7Cabinet (White)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP691581 Whirlpool Actuator
13279640 Whirlpool Dryer Idler Pulley Kit
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
23WP8066120 Whirlpool Lever Assembly
24WP3393657 Whirlpool Belt Retainer
26Nut, ``U`` (4)
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
38AWP717253 Whirlpool Dishwasher Connector
38Harness, Door Switch
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
51Front Panel
55WP488729 Whirlpool Refrigerator Door Screw
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56Harness (Lower) 56A
56APlug, Multi- Terminal 56B
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
603389522 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
62WP3391018 Whirlpool Wire Tie
63Screw
64W10470674 Whirlpool Dryer Side Vent Exhaust Kit
664`` - 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
68WPW10354249 Whirlpool Cover
