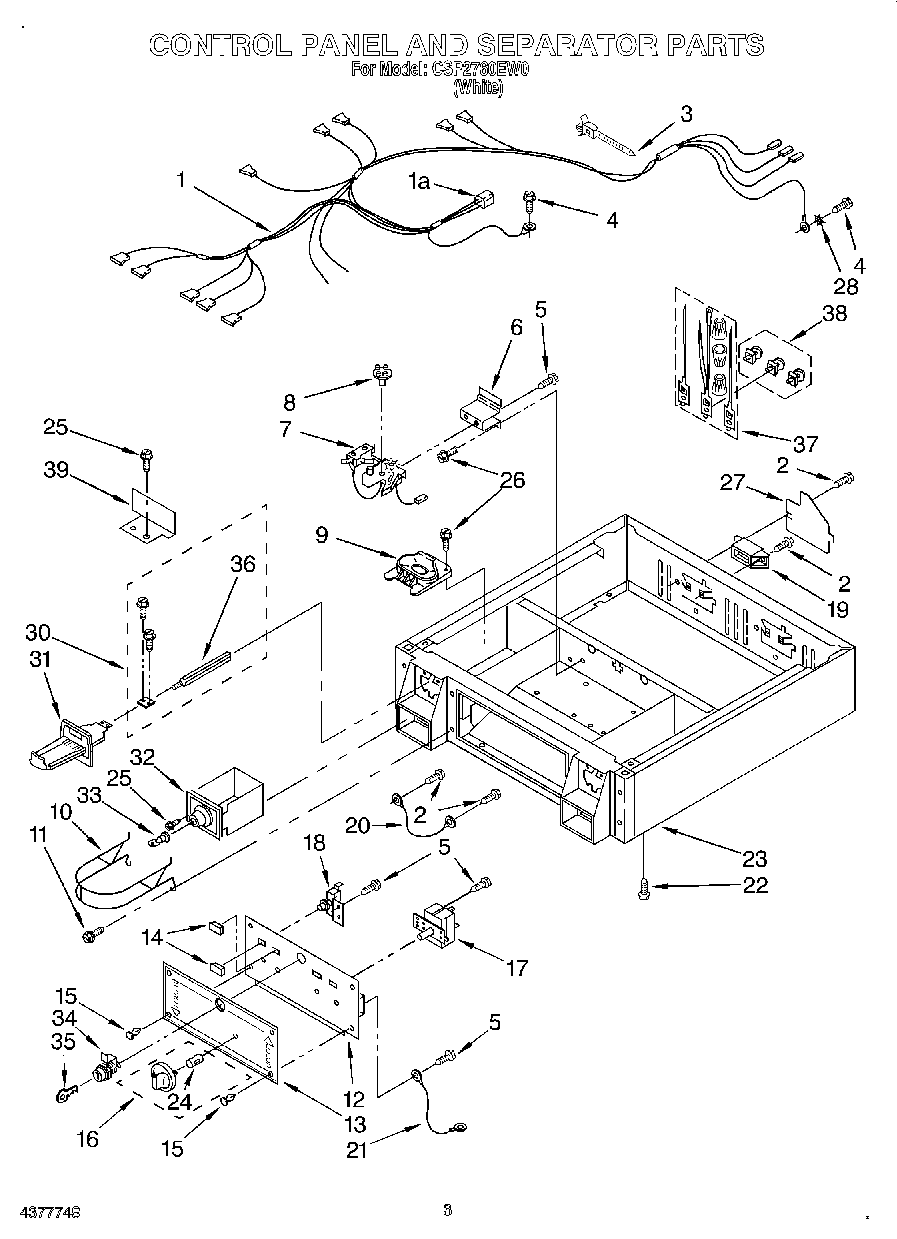

CSP2760EW0 02 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1A	Receptacle (2)
1	Harness, Wire (2)
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP3387974 Whirlpool Cam
8	WP343777 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (2)
15	Rivet, Serial Nameplate
16	Knob (2)
17	W10330141 Whirlpool Switch A & H
18	Switch, Push- To-Start (2)
19	WP3397659 Whirlpool Terminal Block
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar
24	WP688805 Whirlpool Spring Clip
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
30	HARNS-WIRE
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	WP2151749 Whirlpool Refrigerator Cover
34	Security Lock & Cam Assembly
35	Key, Service Door
36	STOPPER-DO
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
