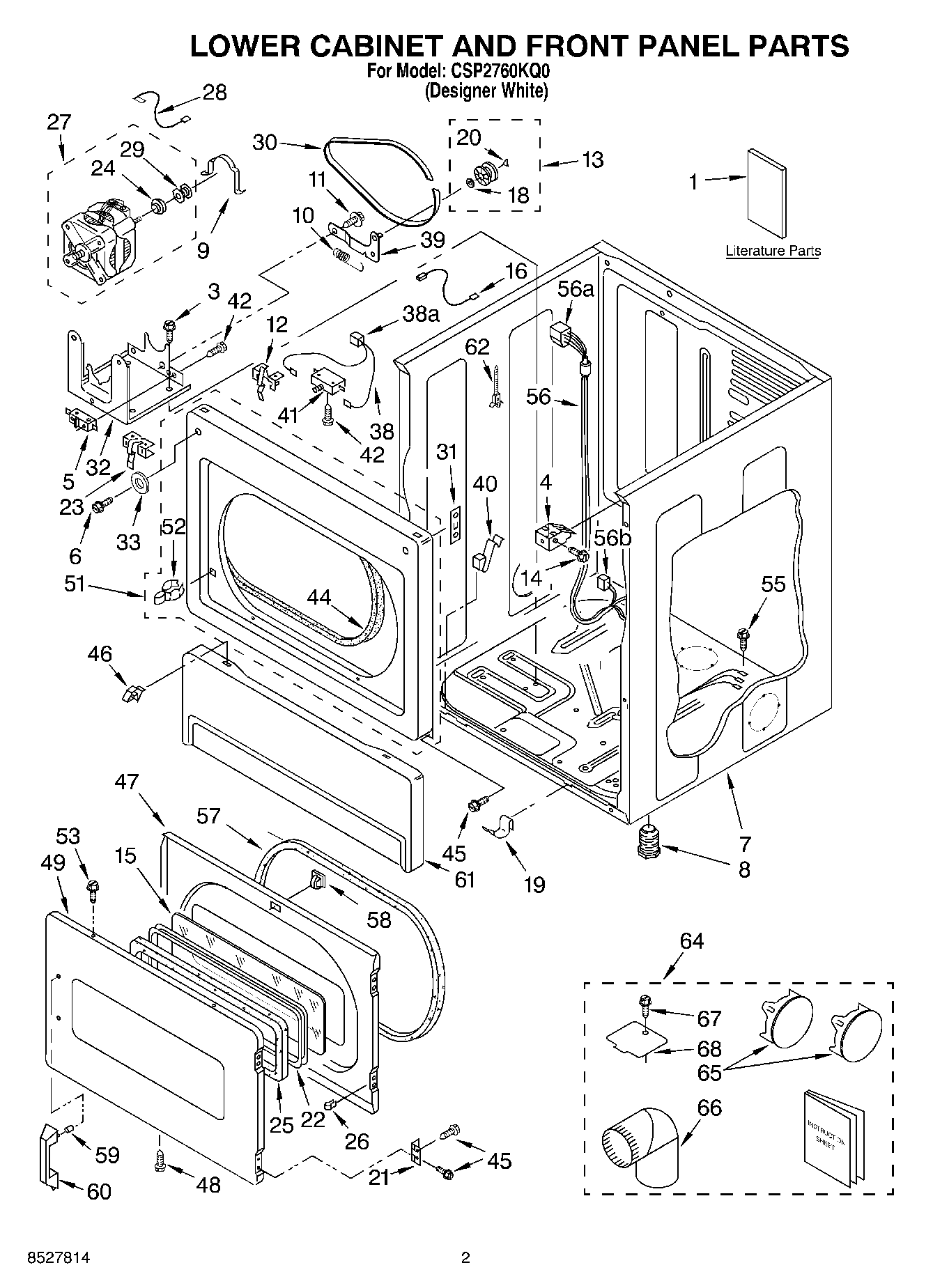

CSP2760KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

CSP2760KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

Written by

in

CSP2760KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

Products

PositionProduct
1Installation Instructions
1Repair Parts List
1Wiring Diagram (Upper)
1Wiring Diagram (Lower)
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3373329 Whirlpool Dishwasher Screw
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP691581 Whirlpool Actuator
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15Window (2)
15WINDOW
16Wire, Belt Switch
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
223392914 Whirlpool Window Frame
23WP8066120 Whirlpool Lever Assembly
24WP3393657 Whirlpool Belt Retainer
25Gasket, Window
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
38AWP717253 Whirlpool Dishwasher Connector
38Harness, Door Switch
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51Front Panel
53Screw, 8-18 x 3/4 (Door Handle)
55WP488729 Whirlpool Refrigerator Door Screw
56APlug, Multi- Terminal 56B
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56Harness (Lower) 56A
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59Fastener, Tubular
60WP3392906 Whirlpool Door Handle
61WP3406797 Whirlpool Toe Panel
62WP3391018 Whirlpool Wire Tie
64W10470674 Whirlpool Dryer Side Vent Exhaust Kit
664“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
68WPW10354249 Whirlpool Cover
