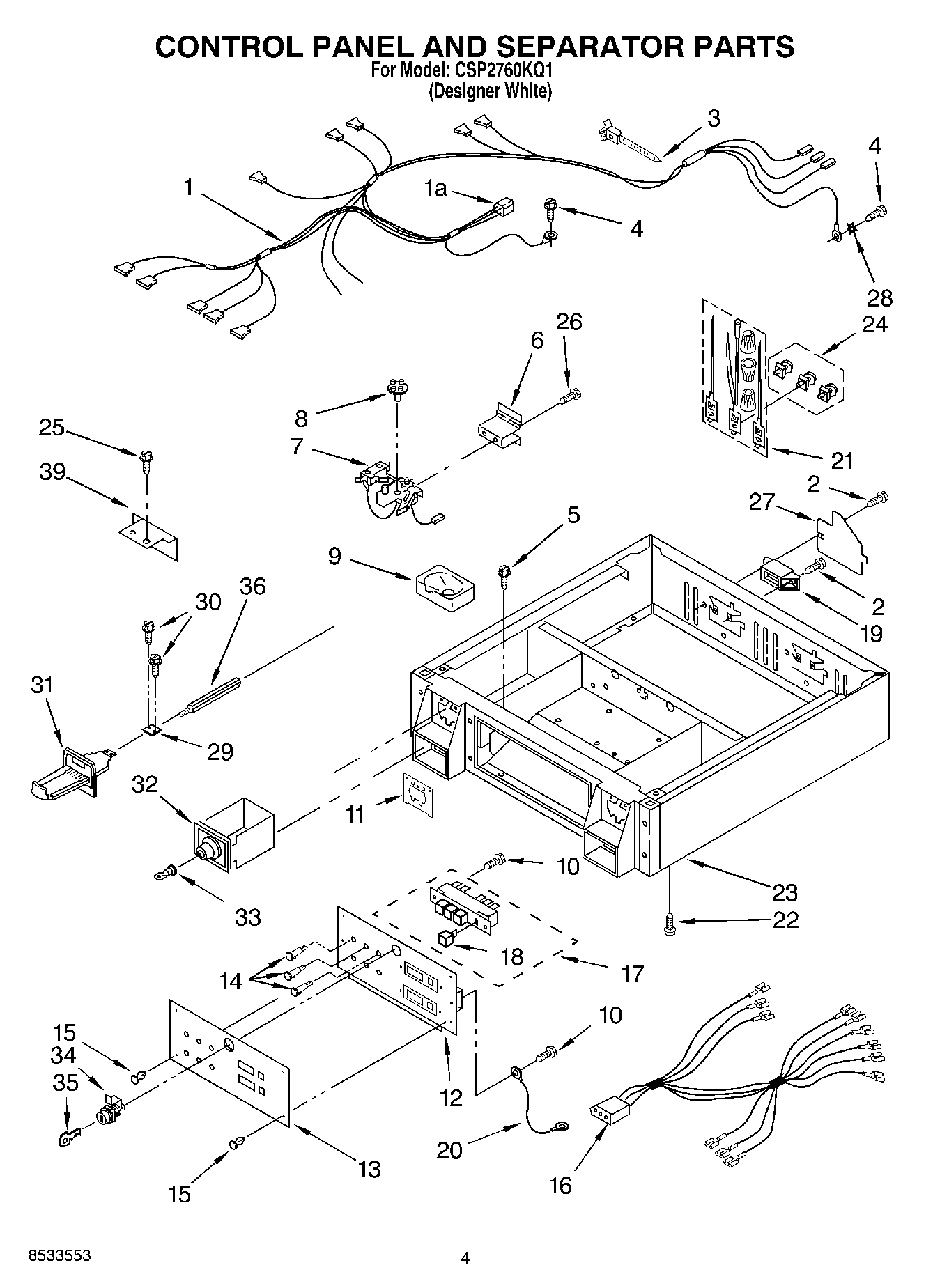

CSP2760KQ1 03 – CONTROL PANEL AND SEPARATOR

Products

PositionProduct
18576522 Whirlpool Wire Harness
1AReceptacle (2)
2W11676450 Whirlpool Screw
3WP3391018 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
63390115 Whirlpool Bracket Assembly
7279737 Whirlpool Dryer Load Timer
8WP343777 Whirlpool Cam
8WP339854 Whirlpool Cam
8WP339853 Whirlpool Cam
8WP3387974 Whirlpool Cam
8WP339855 Whirlpool Cam
9WP385421 Whirlpool Coin Operated Laundry Funnel
10WP489128 Whirlpool Refrigerator Screw
11279950 Whirlpool Funnel
12Panel, Control
13Insert, Decorative
14Lamp, Indicator (Red)
14Lamp, Indicator (Amber)
143979327 Whirlpool Light
15Rivet, Serial Nameplate
168283296 Whirlpool Wire Harness
18SWITCH-PB
19WP3397659 Whirlpool Terminal Block
203401699 Whirlpool Wire
21279318 Whirlpool Terminal
223400500 Whirlpool Screw
23W10862444 Whirlpool Collar
24279393 Whirlpool Terminal Block Screw and Nut Kit
25WP356418 Whirlpool Screw
26WP3400094 Whirlpool Screw
27W11539855 Whirlpool Refrigerator Pump
28Retainer, Terminal (2)
293390424 Whirlpool Extension
30WPL 3400086
31W11126319 Whirlpool Washer Dryer Coin Chute
31Inserts (Not Shown
31WPL 8316265
32W11190039 Whirlpool Coin Box Assembly
33Key (Money Box) (When Ordering, Specify Vendor and Key Number)
34W11315637 Whirlpool Lock Assembly
35Key (Service Door) (Whe
36WP8576635 Whirlpool Bolt
