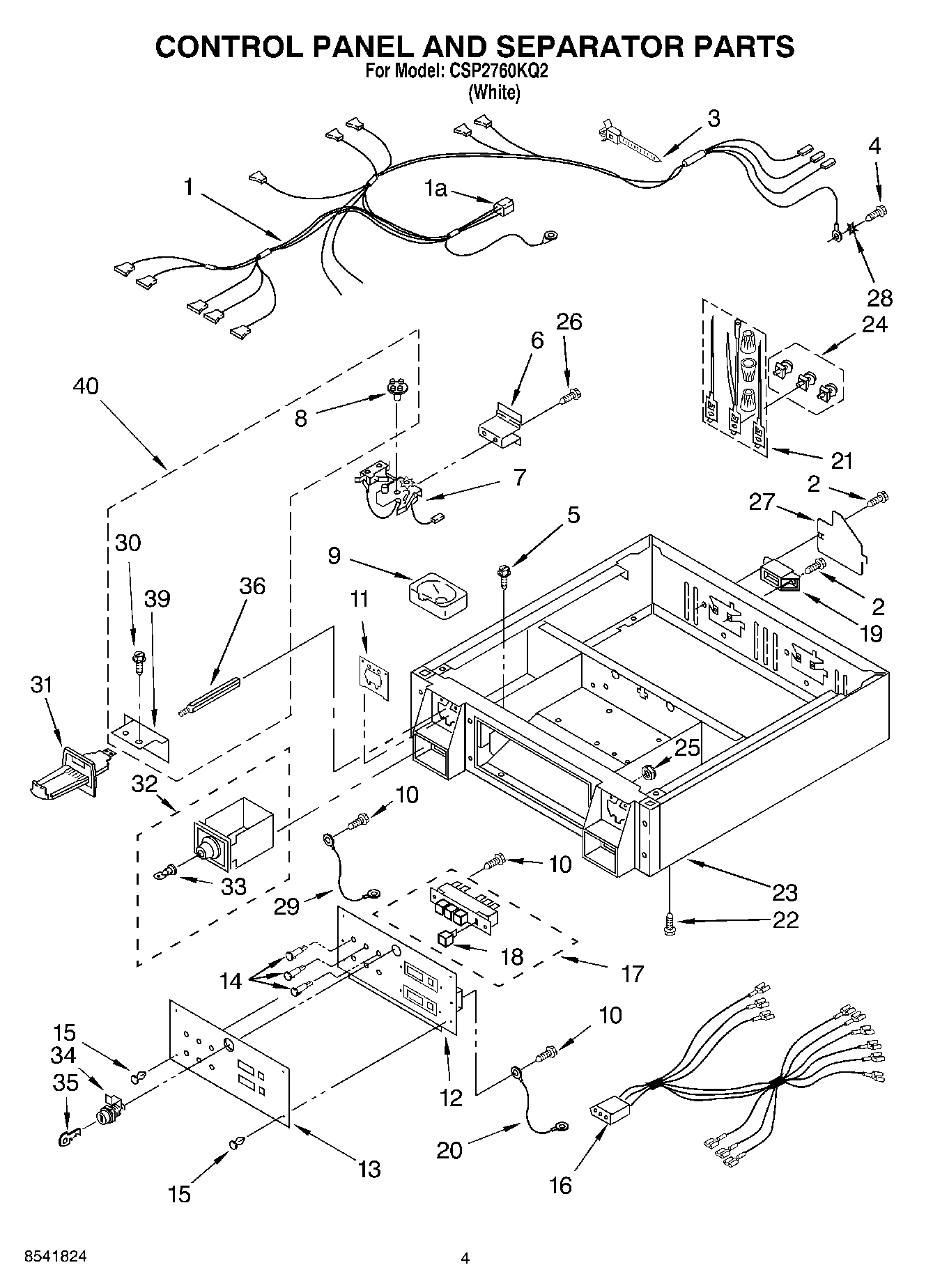

CSP2760KQ2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1	8576522 Whirlpool Wire Harness
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP343777 Whirlpool Cam
8	WP339854 Whirlpool Cam
8	WP339853 Whirlpool Cam
8	WP3387974 Whirlpool Cam
8	WP339855 Whirlpool Cam
9	WP385421 Whirlpool Coin Operated Laundry Funnel
10	WP489128 Whirlpool Refrigerator Screw
11	279950 Whirlpool Funnel
12	Panel, Control
13	Insert, Decorative
14	Lamp, Indicator (Amber)
14	Lamp, Indicator (Red)
14	3979327 Whirlpool Light
15	Rivet, Serial Nameplate
16	8283296 Whirlpool Wire Harness
18	SWITCH-PB
19	WP3397659 Whirlpool Terminal Block
20	3401699 Whirlpool Wire
21	279318 Whirlpool Terminal
22	3400500 Whirlpool Screw
23	W10862444 Whirlpool Collar
24	279393 Whirlpool Terminal Block Screw and Nut Kit
25	WP3400029 Whirlpool Dishwasher Nut
26	WP3400094 Whirlpool Screw
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
30	WPL 3400086
31	WPL 8316265
31	Inserts (Not Shown
31	W11126319 Whirlpool Washer Dryer Coin Chute
32	W11190039 Whirlpool Coin Box Assembly
33	Key (Money Box) (When Ordering, Specify Vendor and Key Number)
34	W11315637 Whirlpool Lock Assembly
35	WPL ARI22071A3
36	WP8576635 Whirlpool Bolt
39	3390424 Whirlpool Extension
40	WPL C4889201
40	WPL 3390615
40	WPL B0592401
