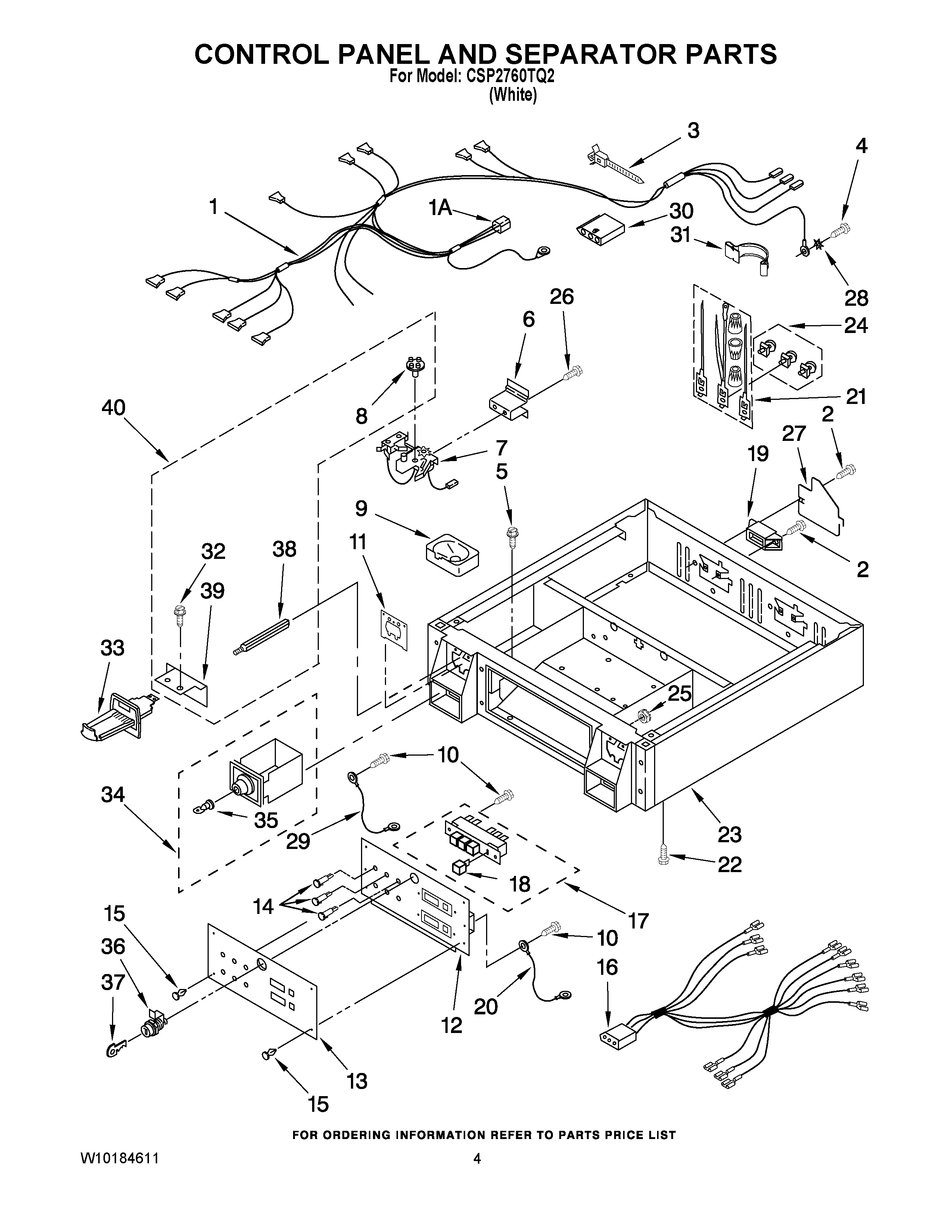

CSP2760TQ2 02 – CONTROL PANEL AND SEPARATOR PARTS

CSP2760TQ2 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

CSP2760TQ2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1Receptacle (2)
18576522 Whirlpool Wire Harness
2W11676450 Whirlpool Screw
3WP3391018 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
63390115 Whirlpool Bracket Assembly
7279737 Whirlpool Dryer Load Timer
8WP339853 Whirlpool Cam
8WP3387974 Whirlpool Cam
8WP339854 Whirlpool Cam
8WP339855 Whirlpool Cam
8WP343777 Whirlpool Cam
9WP385421 Whirlpool Coin Operated Laundry Funnel
10WP489128 Whirlpool Refrigerator Screw
11279950 Whirlpool Funnel
12Panel, Control
13Insert, Decorative
14Lamp, Indicator (Red)
14Lamp, Indicator (Amber)
143979327 Whirlpool Light
15Rivet, Serial Nameplate
168283296 Whirlpool Wire Harness
18SWITCH-PB
19WP3397659 Whirlpool Terminal Block
203401699 Whirlpool Wire
21279318 Whirlpool Terminal
223400500 Whirlpool Screw
23W10862444 Whirlpool Collar
24279393 Whirlpool Terminal Block Screw and Nut Kit
25WP3400029 Whirlpool Dishwasher Nut
26WP3400094 Whirlpool Screw
27W11539855 Whirlpool Refrigerator Pump
28Retainer, Terminal (2)
30353424 Whirlpool Connector
318528351 Whirlpool Clip
32WP356418 Whirlpool Screw
33WPL 8316265
33Inserts (Not Shown
33W11126319 Whirlpool Washer Dryer Coin Chute
34W11190039 Whirlpool Coin Box Assembly
35Key (Money Box) (When Ordering, Specify Vendor and Key Number)
36W11315637 Whirlpool Lock Assembly
37WPL ARI22091A4
38WP8576635 Whirlpool Bolt
393390424 Whirlpool Extension
40WPL W10135246
