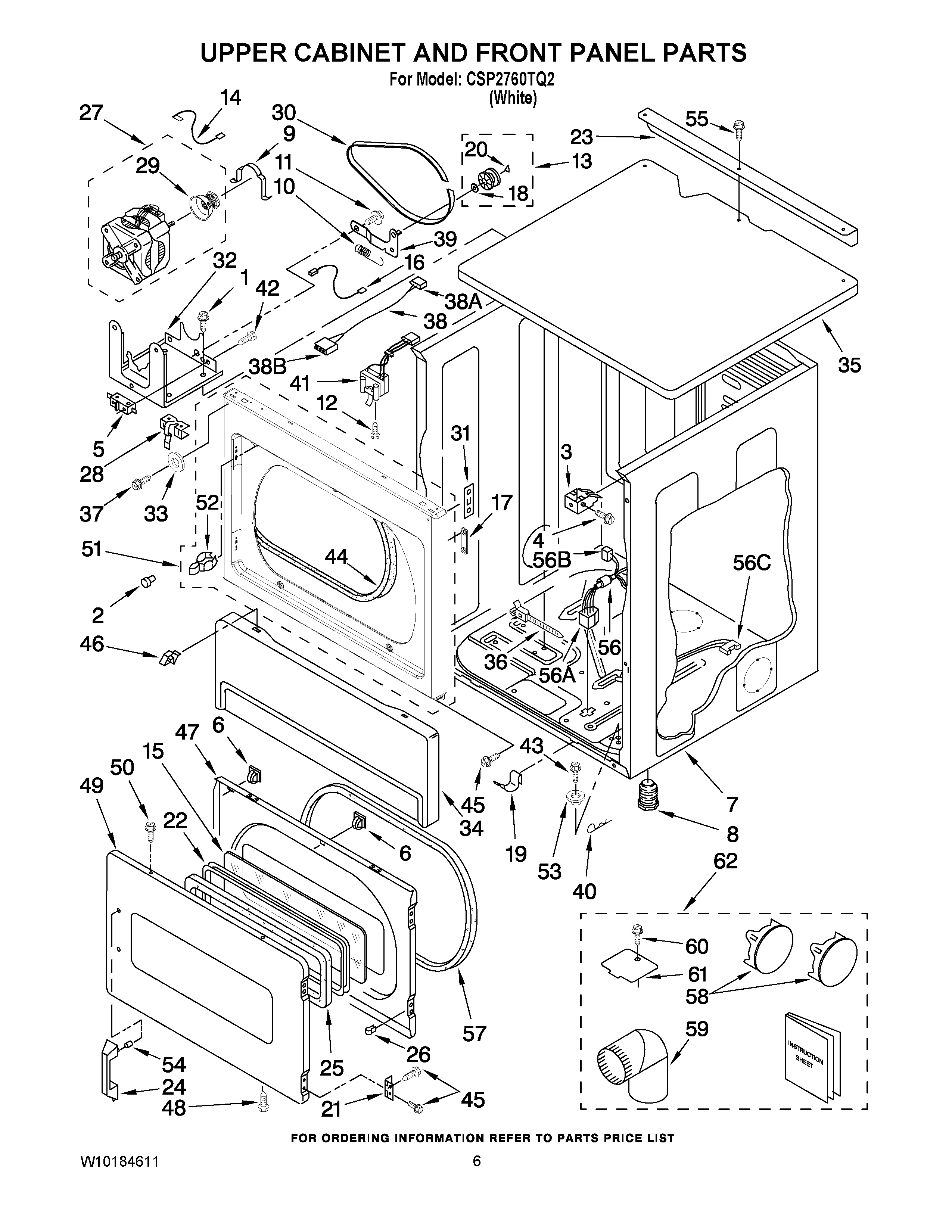

CSP2760TQ2 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1SCREW
2693152 Whirlpool Bumper
33391846 Whirlpool Clip
4681615 Whirlpool Screw
6279570 Whirlpool Dryer Door Latch Kit
7Cabinet (Upper)
8WP689172 Whirlpool Leveling Feet
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP3395530 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
143398948 Whirlpool Wire
15Window (2)
16279782 Whirlpool Lid Switch
17W10191265 Whirlpool Plug
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
223392914 Whirlpool Window Frame
233979115 Whirlpool Bracket
24WPW10213202 Whirlpool Handle
25Gasket, Window
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28WP8066120 Whirlpool Lever Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34WP3406797 Whirlpool Toe Panel
353389351 Whirlpool Top
36WP3391018 Whirlpool Wire Tie
37WP3373329 Whirlpool Dishwasher Screw
38WP717253 Whirlpool Dishwasher Connector
388283298 Whirlpool Wire Harness
383936144 Whirlpool Connector
39W10837240 Whirlpool Dryer Idler Pulley
40COTTER PIN
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43285875 Whirlpool Security Kit
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
50Screw, 8-18 x 3/4 (Door Handle)
51W10242810 Whirlpool Panel
53BUSHING
54SCREW
55WP488729 Whirlpool Refrigerator Door Screw
56Receptacle, Latching (2-Way) (Uses Terminal 94614)
568529991 Whirlpool Wire Harness
56Plug, Multi- Terminal 56B
563395683 Whirlpool Connector
57WP3390735 Whirlpool Door Seal
594“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
61WPW10354249 Whirlpool Cover
62W10470674 Whirlpool Dryer Side Vent Exhaust Kit
