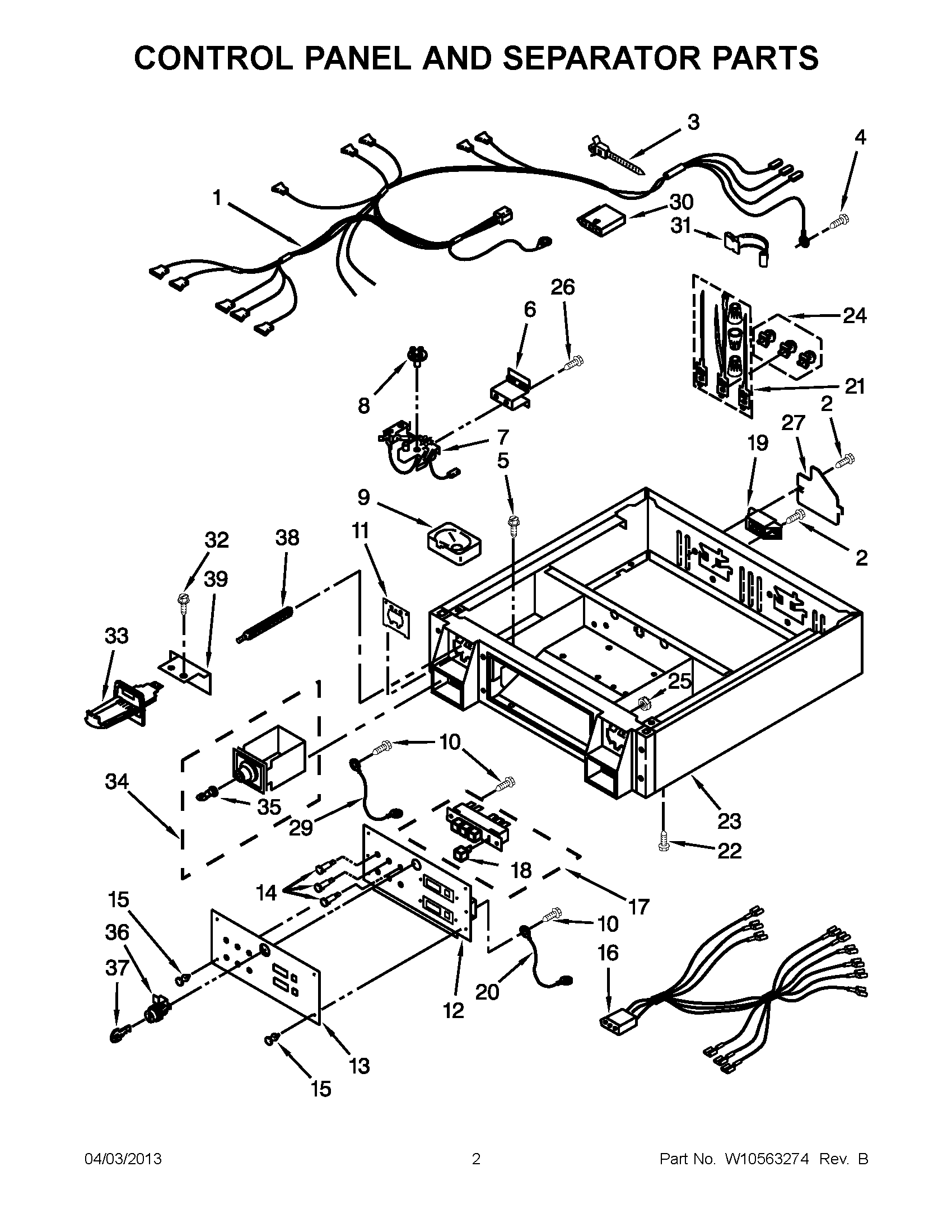

CSP2760TQ3 01 – CONTROL PANEL AND SEPARATOR PARTS

CSP2760TQ3 01 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
18576522 Whirlpool Wire Harness
2W11676450 Whirlpool Screw
3WP3391018 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
63390115 Whirlpool Bracket Assembly
7279737 Whirlpool Dryer Load Timer
8WP3387974 Whirlpool Cam
8WP343777 Whirlpool Cam
9WP385421 Whirlpool Coin Operated Laundry Funnel
10WP489128 Whirlpool Refrigerator Screw
11279950 Whirlpool Funnel
12Panel, Control
13Insert, Decorative
143979327 Whirlpool Light
14Lamp, Indicator (Red)
14Lamp, Indicator (Amber)
15Rivet, Serial Nameplate
168283296 Whirlpool Wire Harness
18SWITCH-PB
19WP3397659 Whirlpool Terminal Block
203401699 Whirlpool Wire
21279318 Whirlpool Terminal
223400500 Whirlpool Screw
23W10862444 Whirlpool Collar
24279393 Whirlpool Terminal Block Screw and Nut Kit
25WP3400029 Whirlpool Dishwasher Nut
26WP3400094 Whirlpool Screw
27W11539855 Whirlpool Refrigerator Pump
30353424 Whirlpool Connector
318528351 Whirlpool Clip
32WP356418 Whirlpool Screw
33Inserts (Not Shown
33WPL 8316265
33W11126319 Whirlpool Washer Dryer Coin Chute
34W11190039 Whirlpool Coin Box Assembly
36W11315637 Whirlpool Lock Assembly
37CABINET (NOT A SERVICEABLE PART)
38WP8576635 Whirlpool Bolt
393390424 Whirlpool Extension
