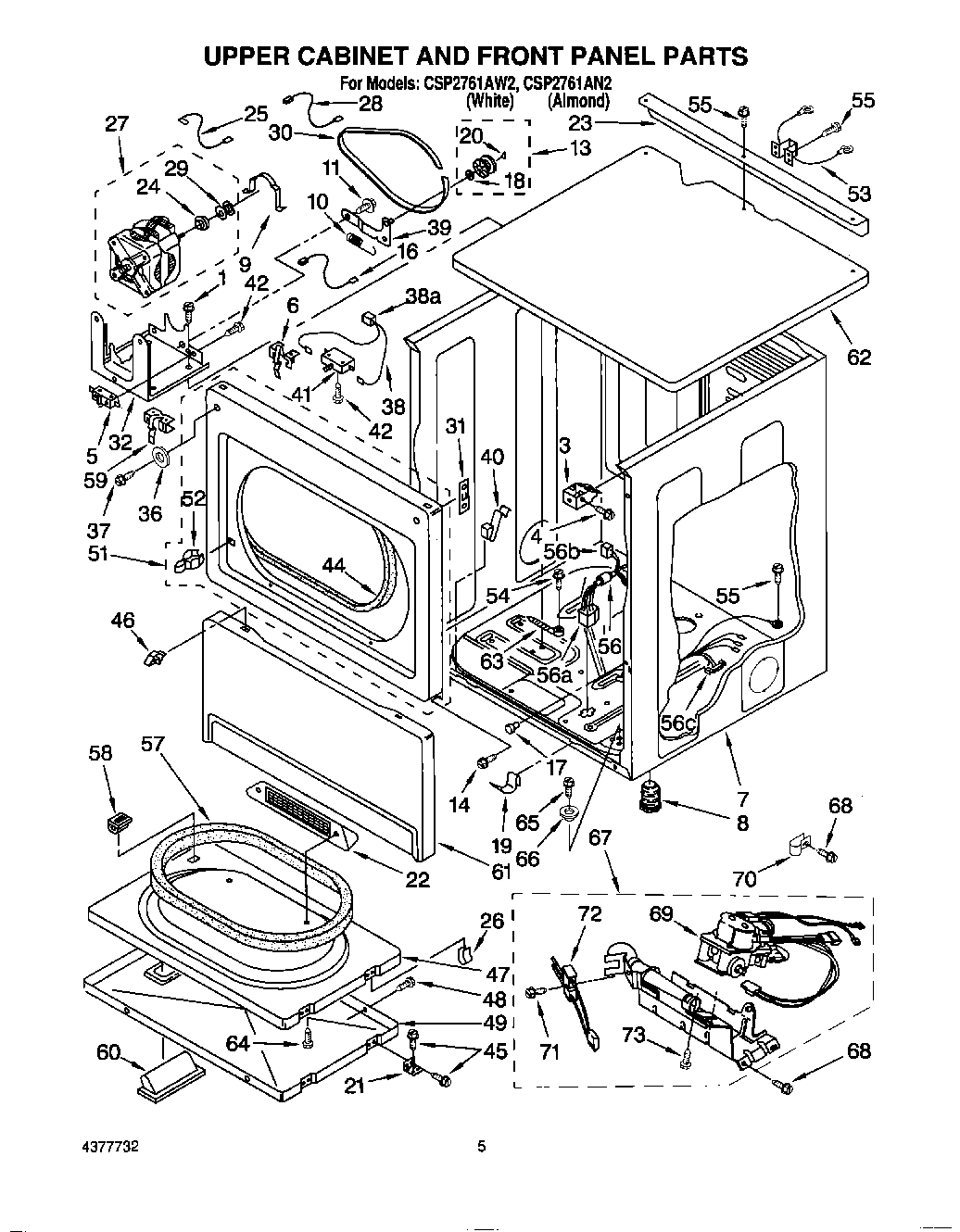

CSP2761AN2 04 – UPPER CABINET AND FRONT PANEL

CSP2761AN2 04 – UPPER CABINET AND FRONT PANEL

Written by

in

CSP2761AN2 04 – UPPER CABINET AND FRONT PANEL

Products

PositionProduct
1SCREW
33391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP691581 Whirlpool Actuator
7Cabinet (White)
7Cabinet (Almond)
8WP689172 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14WP3373329 Whirlpool Dishwasher Screw
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Grill
23Bracket, Angle
24WP3393657 Whirlpool Belt Retainer
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
36Washer
37WP90767 Whirlpool Screw
38AWP717253 Whirlpool Dishwasher Connector
38Harness, Door Switch
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47Door, Rear
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
49Door, Front (Almond)
51Front Panel
51279723 Whirlpool Panel Assembly
53Cable Assembly
54W11676450 Whirlpool Screw
55WP488729 Whirlpool Refrigerator Door Screw
56ABlock, Disconnect (12-Way) (Timer) (Use Term. 94613)
56Harness (Upper) 56A
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56C3395683 Whirlpool Connector
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP8066120 Whirlpool Lever Assembly
60WPL 3389523
603389522 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
61WPL 697216
62WPL 3389352
623389351 Whirlpool Top
63WPL 3389969
64Screw
653400500 Whirlpool Screw
66BUSHING
67Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
69279923 Whirlpool Gas Valve
703387561 Whirlpool Clamp
71WPW10366705 Whirlpool Screw
72279311 Whirlpool Dryer Flat Igniter with Bracket
73WP693995 Whirlpool Screw
