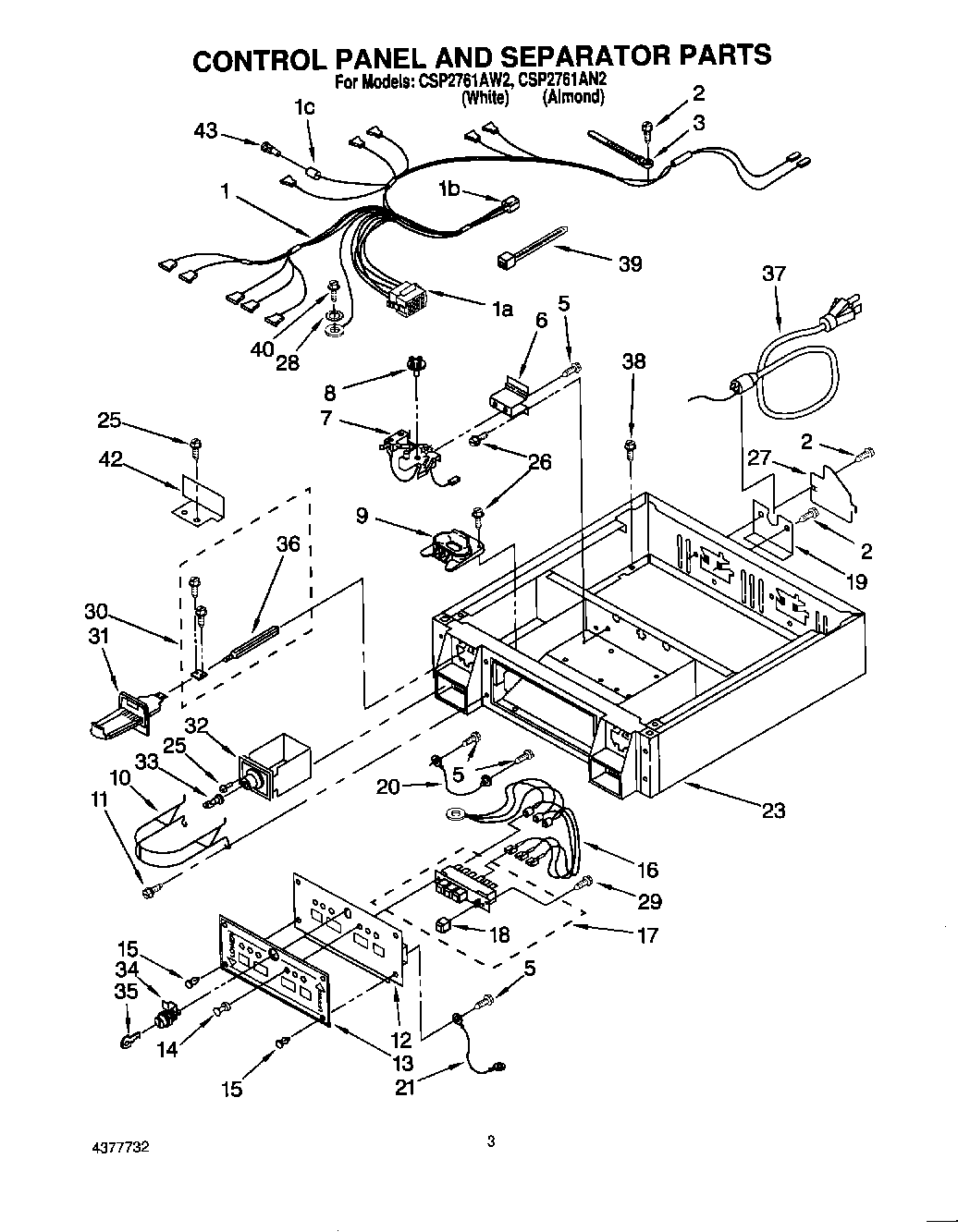

CSP2761AW2 03 – CONTROL PANEL AND SEPARATOR
Written by
in
CSP2761AW2 03 – CONTROL PANEL AND SEPARATOR
Products
Position
Product
1C
Receptacle
1
Harness, Wire (2)
1B
Receptacle, Latching (2-Way) (Uses Terminal 94614)
1A
Receptacle (2) (Uses Terminals 94614)
2
W11676450 Whirlpool Screw
3
WPL 3389969
5
303776 Whirlpool Dishwasher Screw
6
3390115 Whirlpool Bracket Assembly
7
279737 Whirlpool Dryer Load Timer
8
WP3387974 Whirlpool Cam
8
WP339855 Whirlpool Cam
8
WP343777 Whirlpool Cam
9
Funnel, Coin (2)
10
Protector, Slide (2)
11
Screw, 10-32 x 1/2
12
Panel, Control
13
Insert, Decorative
14
Lens, Light (6)
15
Rivet
16
Lights, Indicator (240 Volts)
17
Switch, Pushbutton
18
Button (4)
19
3390189 Whirlpool Relief Valve
20
Strut
21
Wire, Ground
23
Collar (Almond)
23
Collar
25
WP356418 Whirlpool Screw
26
Screw (8)
27
W11539855 Whirlpool Refrigerator Pump
28
Retainer, Terminal (2)
29
WP489128 Whirlpool Refrigerator Screw
30
HARNS-WIRE
31
Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32
Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33
WP2151749 Whirlpool Refrigerator Cover
34
Security Lock & Cam Assembly
35
Key, Service Door
36
STOPPER-DO
37
W11222083 Whirlpool Power Cord
38
WP489069 Whirlpool Compactor Screw
39
WP3391018 Whirlpool Wire Tie
40
W10850756 Whirlpool Screw
42
3390424 Whirlpool Extension
43
Plug
←
