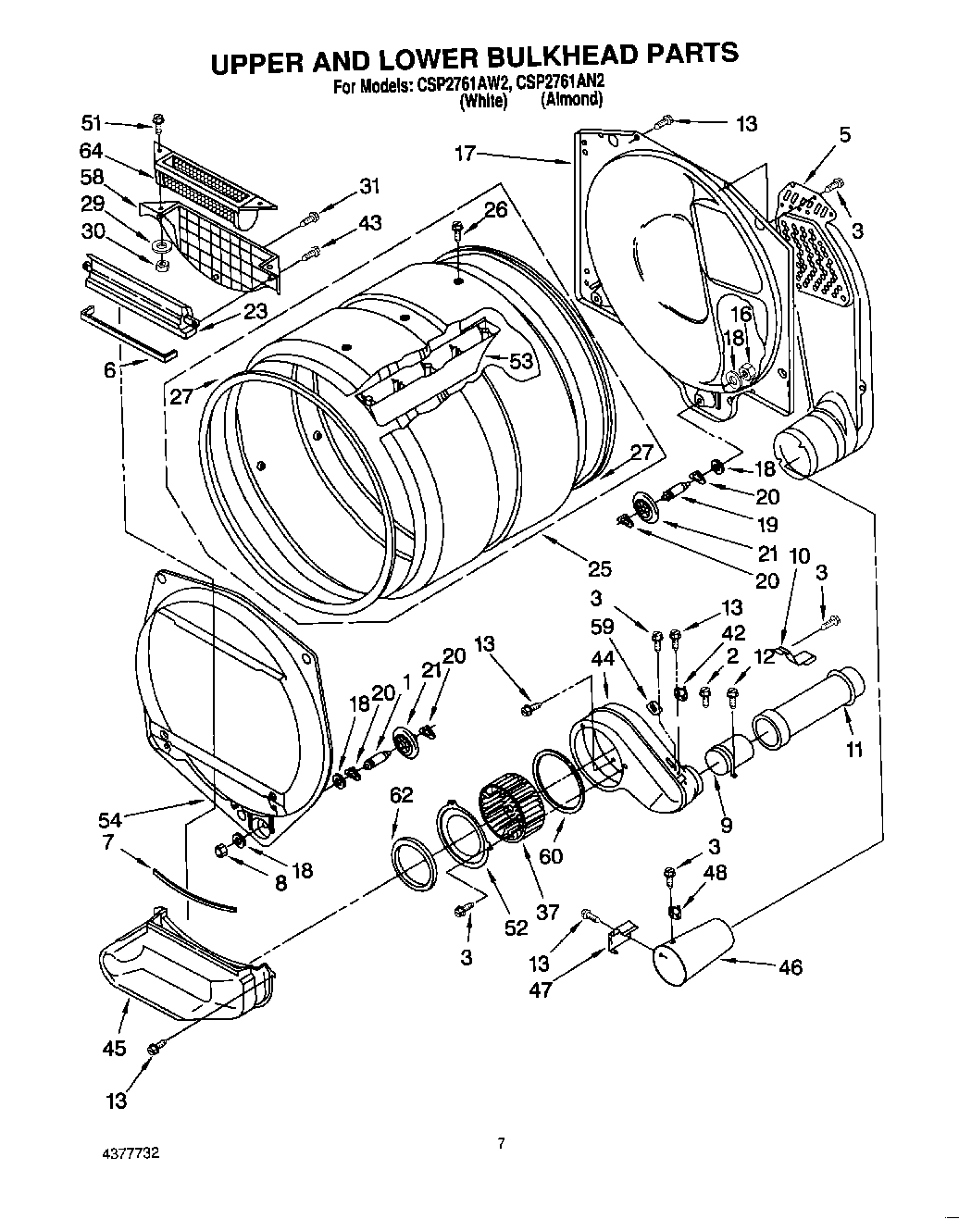

CSP2761AW2 06 – UPPER AND LOWER BULKHEAD, LITERATURE

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3395339
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3401133
1	SHAFT
3	WPW10139210 Whirlpool Screw
5	Air Duct Assembly
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	WP8563747 Whirlpool Exhaust Pipe
10	WP3395536 Whirlpool Clip Assembly
11	Extension, Exhaust Pipe
12	WP90767 Whirlpool Screw
13	WP488729 Whirlpool Refrigerator Door Screw
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	Housing, Outlet
25	W10545924 Whirlpool Drum Assembly
26	Screw
27	280114 Whirlpool Dryer Drum Seal
29	Washer, No. 10
30	Nut, Hex
37	WP697772 Whirlpool Dryer Blower Wheel
42	WP694674 Whirlpool Cycling Thermostat
42	WP3387138 Whirlpool Cycling Thermostat
43	WP3387230 Whirlpool Screw
44	WP8544363 Whirlpool Housing
45	Lint Duct Assembly
46	Funnel, Burner
47	WP338906 Whirlpool Dryer Gas Sensor
48	THRMST-FIX
51	WP179051 Whirlpool Screw
52	279780 Whirlpool Plate Cover
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	Cover, Lint Screen
59	WP3390719 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	Screen, Lint
