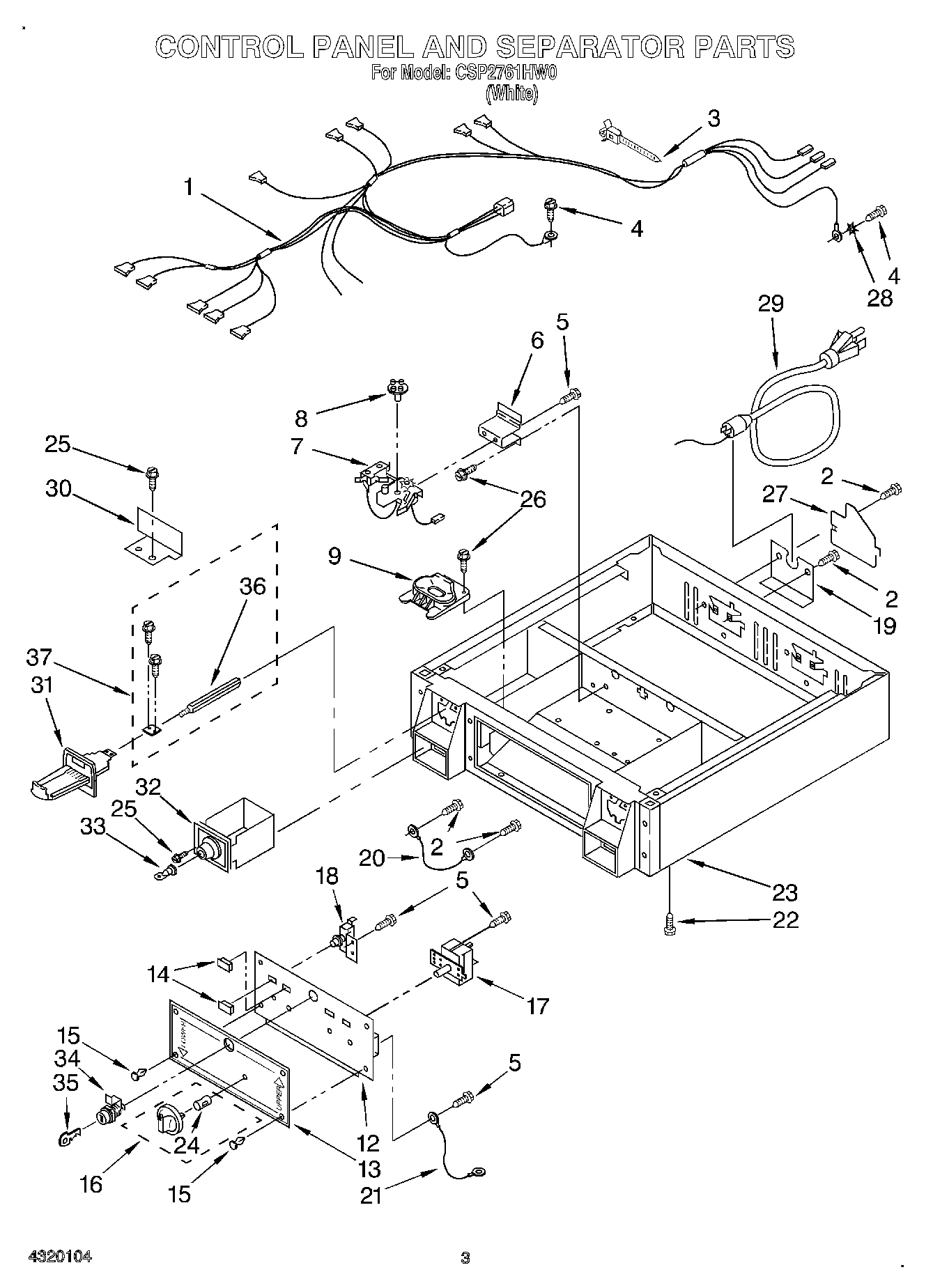

CSP2761HW0 03 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	Harness, Wire (2)
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP343777 Whirlpool Cam
8	WP3387974 Whirlpool Cam
9	Funnel, Coin (2)
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (2)
15	Rivet, Serial Nameplate
16	Knob (2)
17	W10330141 Whirlpool Switch A & H
18	Switch, Push- To-Start (2)
19	3390189 Whirlpool Relief Valve
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar
24	WP688805 Whirlpool Spring Clip
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	W11222083 Whirlpool Power Cord
30	3390424 Whirlpool Extension
