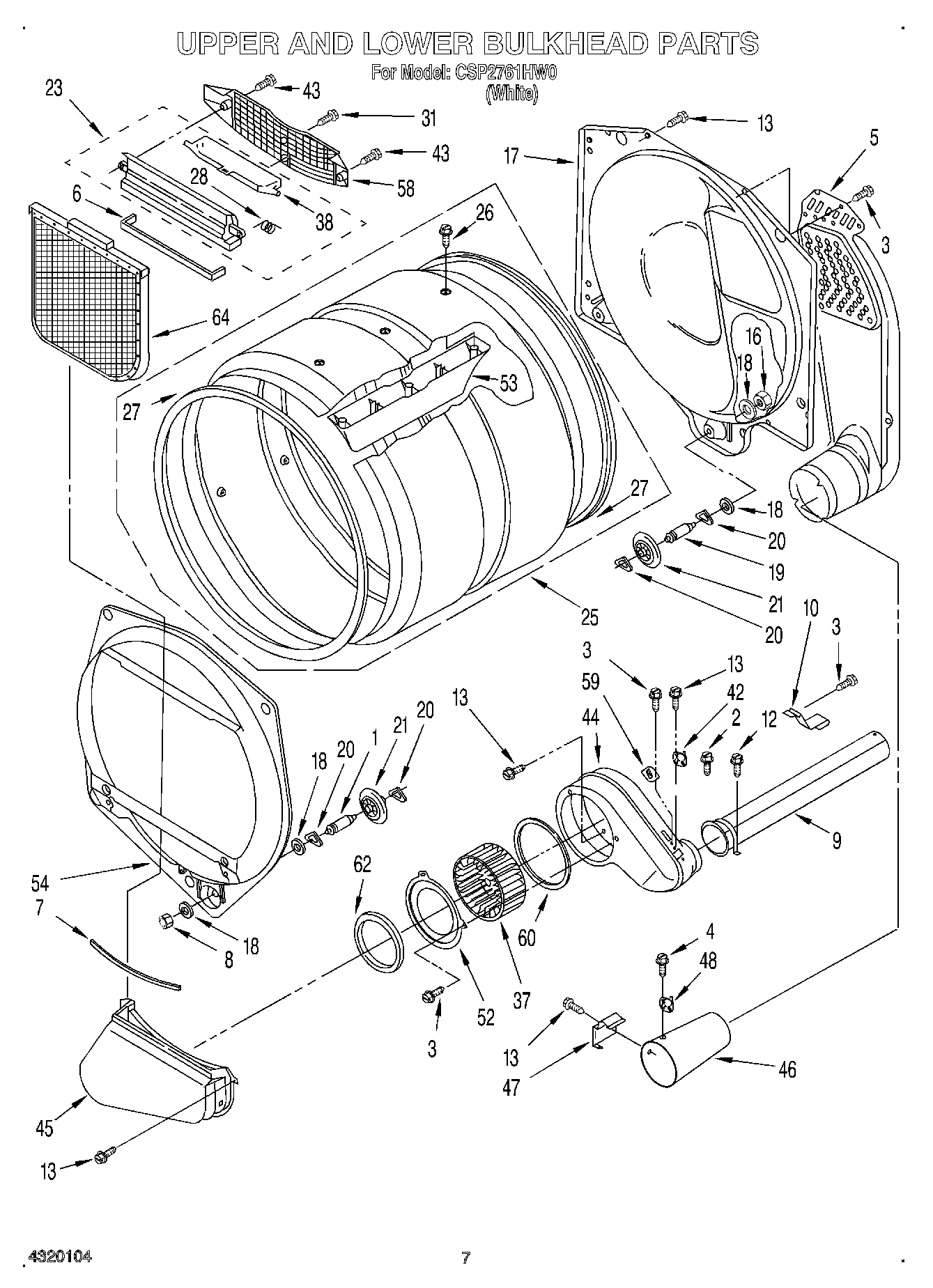

CSP2761HW0 06 – UPPER AND LOWER BULKHEAD

CSP2761HW0 06 – UPPER AND LOWER BULKHEAD

Written by

in

CSP2761HW0 06 – UPPER AND LOWER BULKHEAD

Products

PositionProduct
1SHAFT
3WPW10139210 Whirlpool Screw
5W11168650 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WP3359452 Whirlpool Nut
9279936 Whirlpool Exhaust Pipe
10WP3395536 Whirlpool Clip Assembly
12WP90767 Whirlpool Screw
13WP488729 Whirlpool Refrigerator Door Screw
16Nut, 3/8-16 (L.H.)
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23W11129408 Whirlpool Out Housing
25W10545924 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WP3394986 Whirlpool Spring
37WP697772 Whirlpool Dryer Blower Wheel
38W11222846 Whirlpool Door
42WP3387138 Whirlpool Cycling Thermostat
42WP694674 Whirlpool Cycling Thermostat
43WP3387230 Whirlpool Screw
44WP8544363 Whirlpool Housing
45Lint Duct Assembly
46WP8066047 Whirlpool Funnel
47WP338906 Whirlpool Dryer Gas Sensor
48THRMST-FIX
52279780 Whirlpool Plate Cover
53WPW10113136 Whirlpool Drum Baffle
54WP697557 Whirlpool Bulkhead Assembly
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3390719 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
62WP8566209 Whirlpool Seal
6472017 Whirlpool Appliance Touch-Up Paint White
64350938 Whirlpool Spray Gun
64W10120998 Whirlpool Dryer Lint Screen Filter
64WP72107 Whirlpool Touchup
64350956 Whirlpool Spray Assembly
64350930 Whirlpool White Spray Paint
64Almond (Uncut)
64799344 Whirlpool Refrigerator Paint
