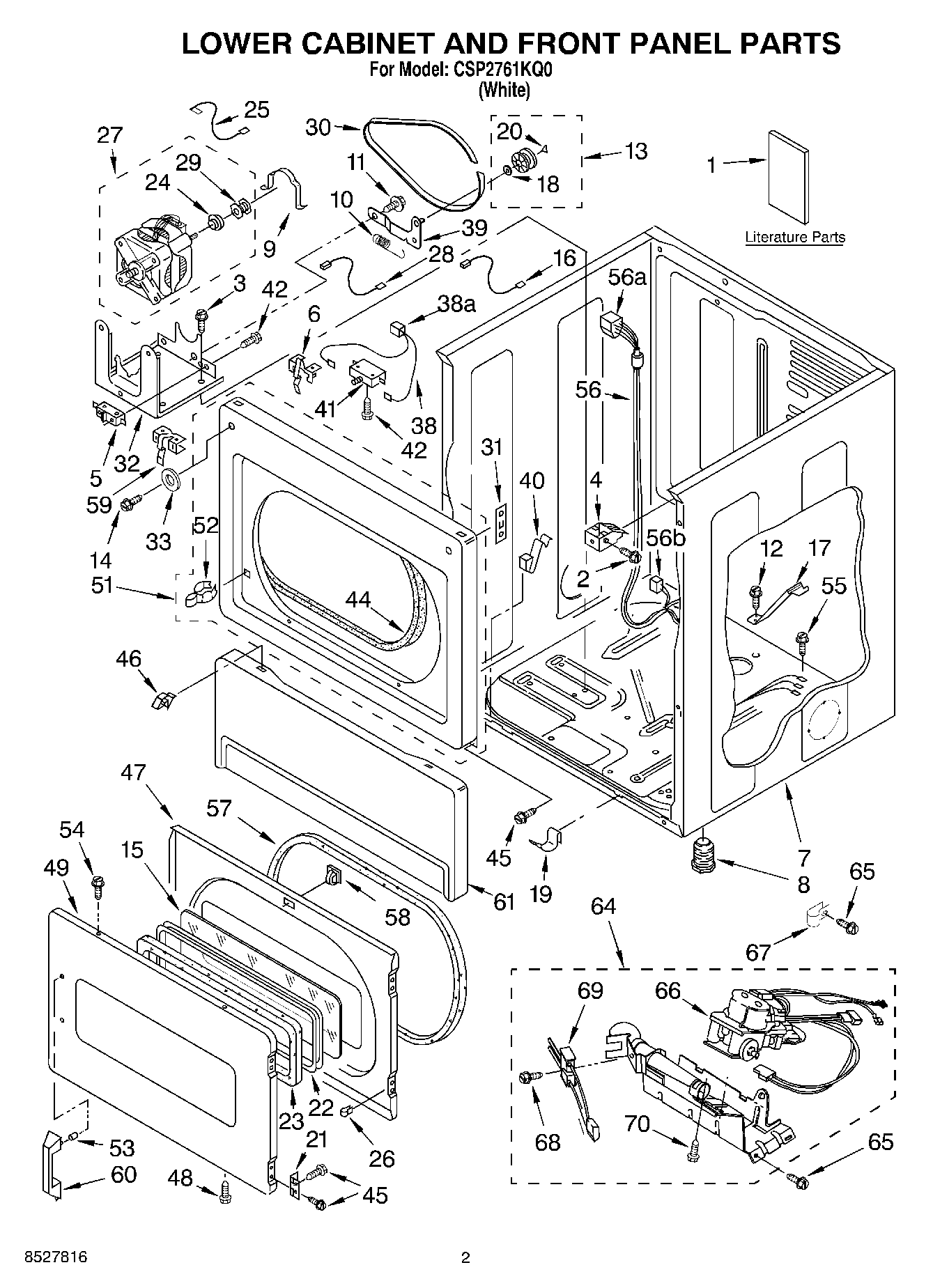

CSP2761KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

CSP2761KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

Written by

in

CSP2761KQ0 02 – LOWER CABINET AND FRONT PANEL, LITE

Products

PositionProduct
1Wiring Diagram (Upper)
1Wiring Diagram (Lower)
1Installation Instructions
1W10470674 Whirlpool Dryer Side Vent Exhaust Kit
1Literature Parts (Repair Parts List)
2681615 Whirlpool Screw
34“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
3SCREW
43391846 Whirlpool Clip
5WPW10354249 Whirlpool Cover
5279782 Whirlpool Lid Switch
6WP691581 Whirlpool Actuator
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14WP3373329 Whirlpool Dishwasher Screw
15, Window Pack. Includes Illus. 15 & 23)
15Window (2)
17W10181903 Whirlpool Bracket
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
223392914 Whirlpool Window Frame
23Gasket, Window
24WP3393657 Whirlpool Belt Retainer
253398948 Whirlpool Wire
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28Wire, Belt Switch
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
38Harness, Door Switch
38AWP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51Front Panel
53Fastener, Tubular
54Screw, 8-18 x 3/4 (Door Handle)
55WP488729 Whirlpool Refrigerator Door Screw
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56ABlock, Disconnect (12-Way) (Timer) (Use Term. 94613)
56Harness (Lower) 56A
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP8066120 Whirlpool Lever Assembly
60WP3392906 Whirlpool Door Handle
61WP3406797 Whirlpool Toe Panel
64Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
66279923 Whirlpool Gas Valve
673387561 Whirlpool Clamp
68WPW10366705 Whirlpool Screw
69279311 Whirlpool Dryer Flat Igniter with Bracket
70WP693995 Whirlpool Screw
