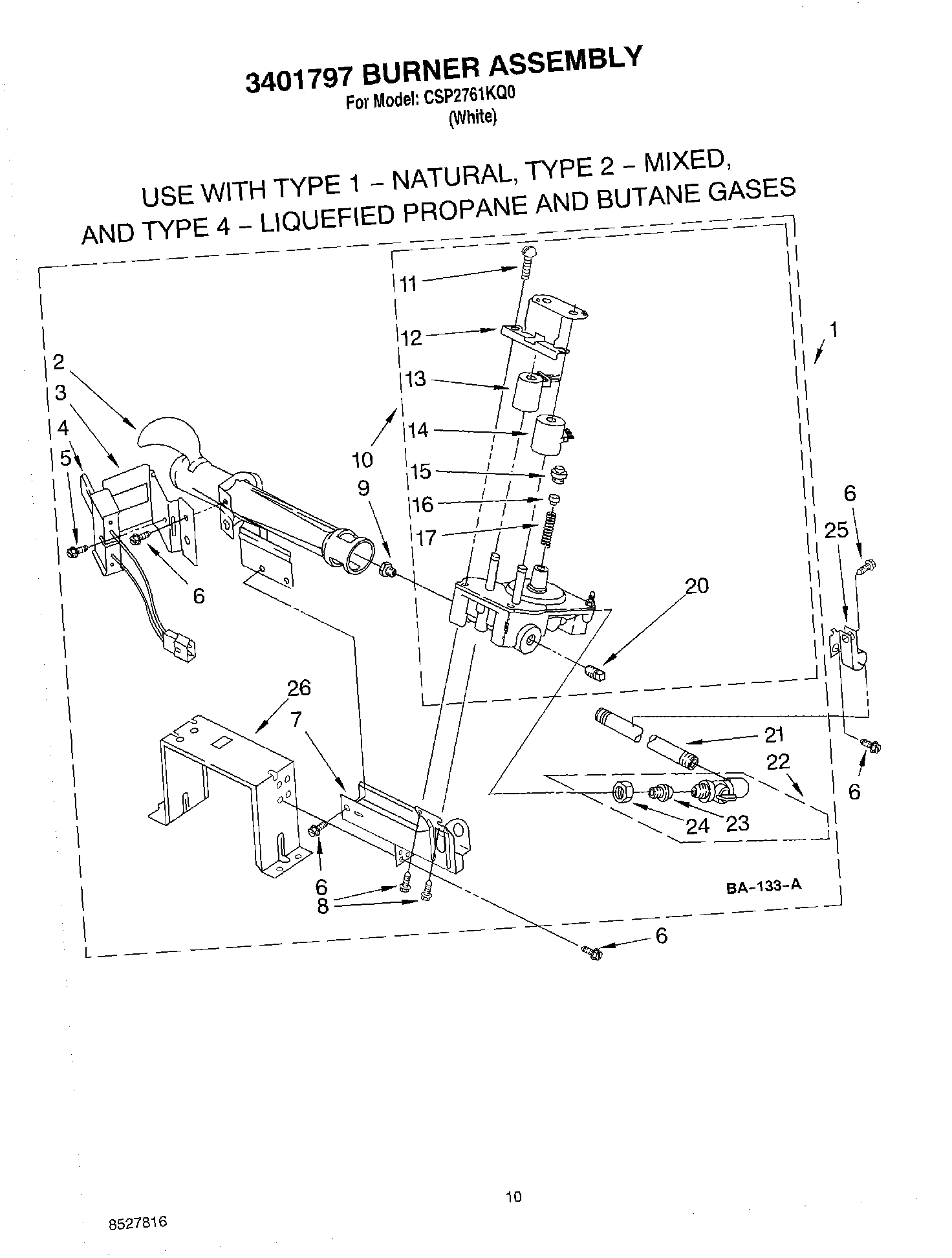

CSP2761KQ0 06 – 3401797 BURNER, OPTIONAL

CSP2761KQ0 06 – 3401797 BURNER, OPTIONAL

Written by

in

CSP2761KQ0 06 – 3401797 BURNER, OPTIONAL

Products

PositionProduct
1Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
9Orifice, Burner (Type 2)
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22697441 Whirlpool Valve
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
2649572A Whirlpool Dryer Propane Gas Conversion Kit
26Bracket, Support
