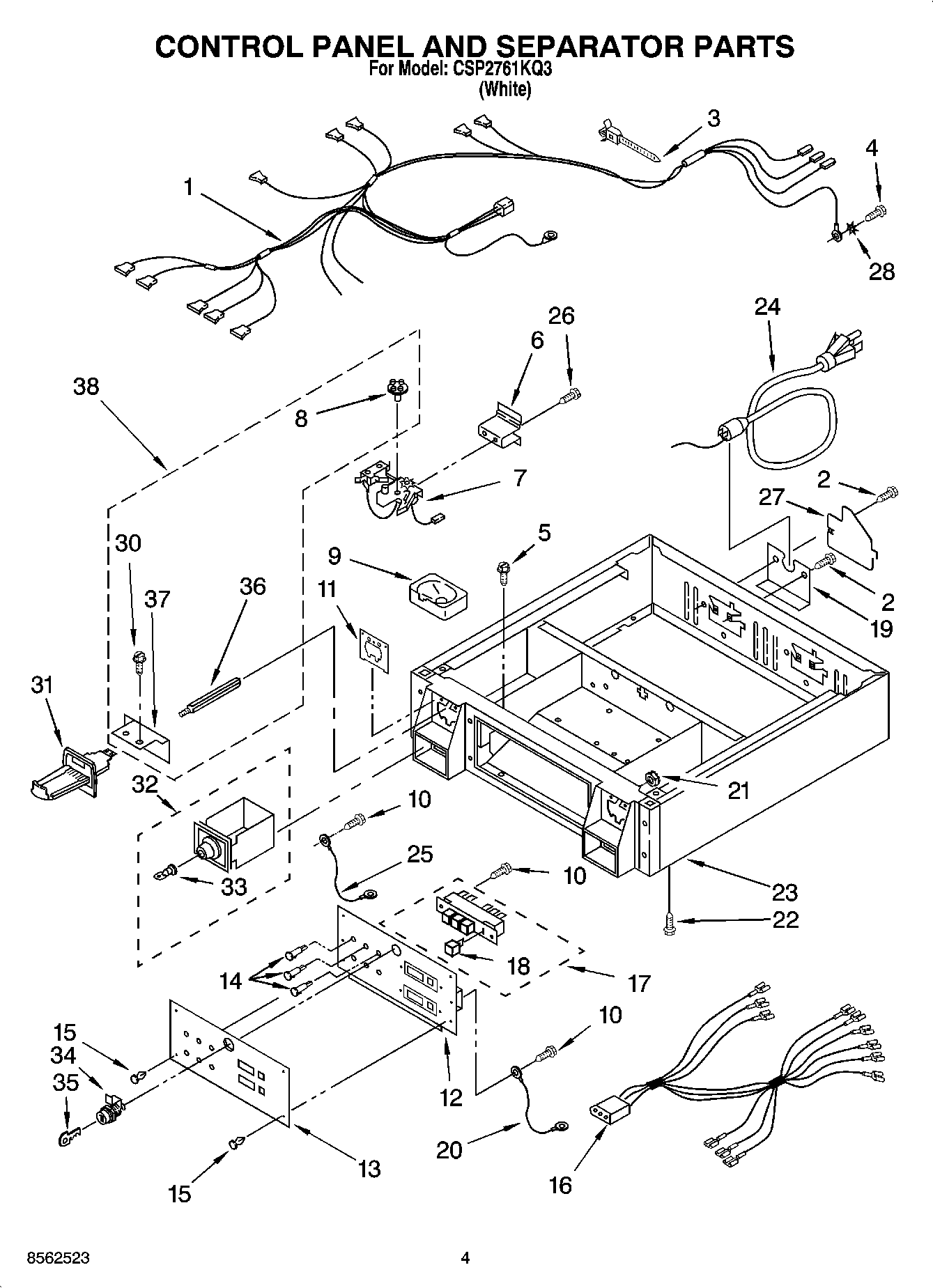

CSP2761KQ3 04 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
NI	WPL 8316265
NI	3979327 Whirlpool Light
NI	WP339853 Whirlpool Cam
NI	WPL B0592401
NI	Lamp, Indicator (Amber)
NI	Inserts (Not Shown
NI	WP339854 Whirlpool Cam
NI	WP339855 Whirlpool Cam
NI	WP343777 Whirlpool Cam
NI	WPL C4889201
1	8283295 Whirlpool Wire Harness
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP3387974 Whirlpool Cam
9	WP385421 Whirlpool Coin Operated Laundry Funnel
10	WP489128 Whirlpool Refrigerator Screw
11	279950 Whirlpool Funnel
12	Panel, Control
13	Insert, Decorative
14	Lamp, Indicator (Red)
15	Rivet, Serial Nameplate
16	8283296 Whirlpool Wire Harness
18	SWITCH-PB
19	3390189 Whirlpool Relief Valve
20	3401699 Whirlpool Wire
21	WP3400029 Whirlpool Dishwasher Nut
22	3400500 Whirlpool Screw
23	W10862444 Whirlpool Collar
24	W11222083 Whirlpool Power Cord
26	WP3400094 Whirlpool Screw
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
30	WP356418 Whirlpool Screw
31	W11126319 Whirlpool Washer Dryer Coin Chute
32	W11190039 Whirlpool Coin Box Assembly
34	W11315637 Whirlpool Lock Assembly
35	WPL 67001048
36	WP8576635 Whirlpool Bolt
37	3390424 Whirlpool Extension
38	WPL 3390615
