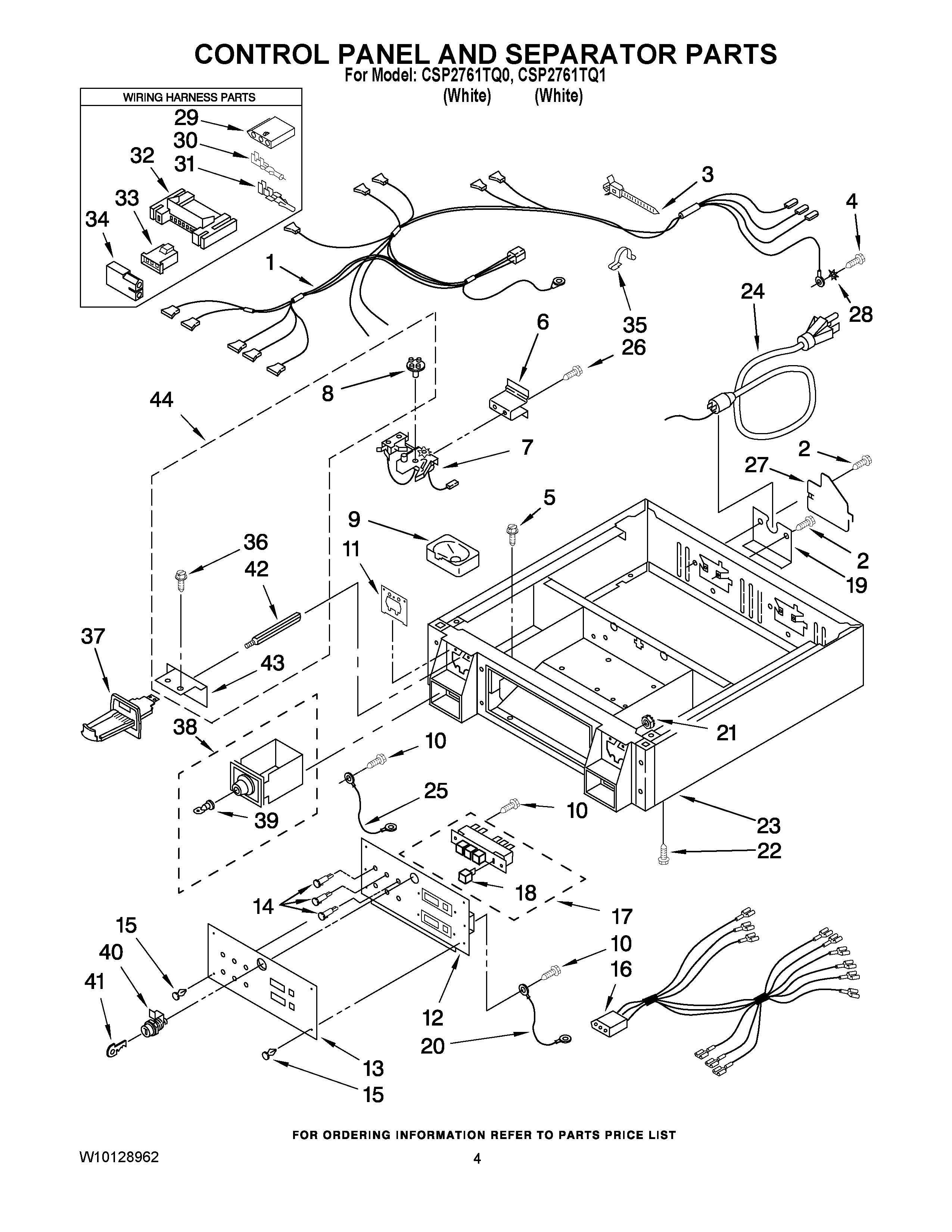

CSP2761TQ0 02 – CONTROL PANEL AND SEPARATOR PARTS

CSP2761TQ0 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

CSP2761TQ0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
18283295 Whirlpool Wire Harness
2W11676450 Whirlpool Screw
3WP3391018 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
63390115 Whirlpool Bracket Assembly
7279737 Whirlpool Dryer Load Timer
8WP343777 Whirlpool Cam
8WP3387974 Whirlpool Cam
8WP339855 Whirlpool Cam
8WP339854 Whirlpool Cam
8WP339853 Whirlpool Cam
9WP385421 Whirlpool Coin Operated Laundry Funnel
10WP489128 Whirlpool Refrigerator Screw
11279950 Whirlpool Funnel
12Panel, Control
13Insert, Decorative
143979327 Whirlpool Light
14Lamp, Indicator (Red)
14Lamp, Indicator (Amber)
15Rivet, Serial Nameplate
168283296 Whirlpool Wire Harness
18SWITCH-PB
193390189 Whirlpool Relief Valve
203401699 Whirlpool Wire
21WP3400029 Whirlpool Dishwasher Nut
223400500 Whirlpool Screw
23W10862444 Whirlpool Collar
24W11222083 Whirlpool Power Cord
26WP3400094 Whirlpool Screw
27W11539855 Whirlpool Refrigerator Pump
28Retainer, Terminal (2)
29353424 Whirlpool Connector
30WP94614 Whirlpool Terminal
31WP596797 Whirlpool Terminal
323395683 Whirlpool Connector
33WP3403498 Whirlpool Connector
34WP3403499 Whirlpool Connector
358528351 Whirlpool Clip
36WP356418 Whirlpool Screw
37W11126319 Whirlpool Washer Dryer Coin Chute
37Inserts (Not Shown
37WPL 8316265
38W11190039 Whirlpool Coin Box Assembly
39Key (Money Box) (When Ordering, Specify Vendor and Key Number)
40W11315637 Whirlpool Lock Assembly
41WPL ARI144945A
42WP8576635 Whirlpool Bolt
433390424 Whirlpool Extension
44WPL 3390615
