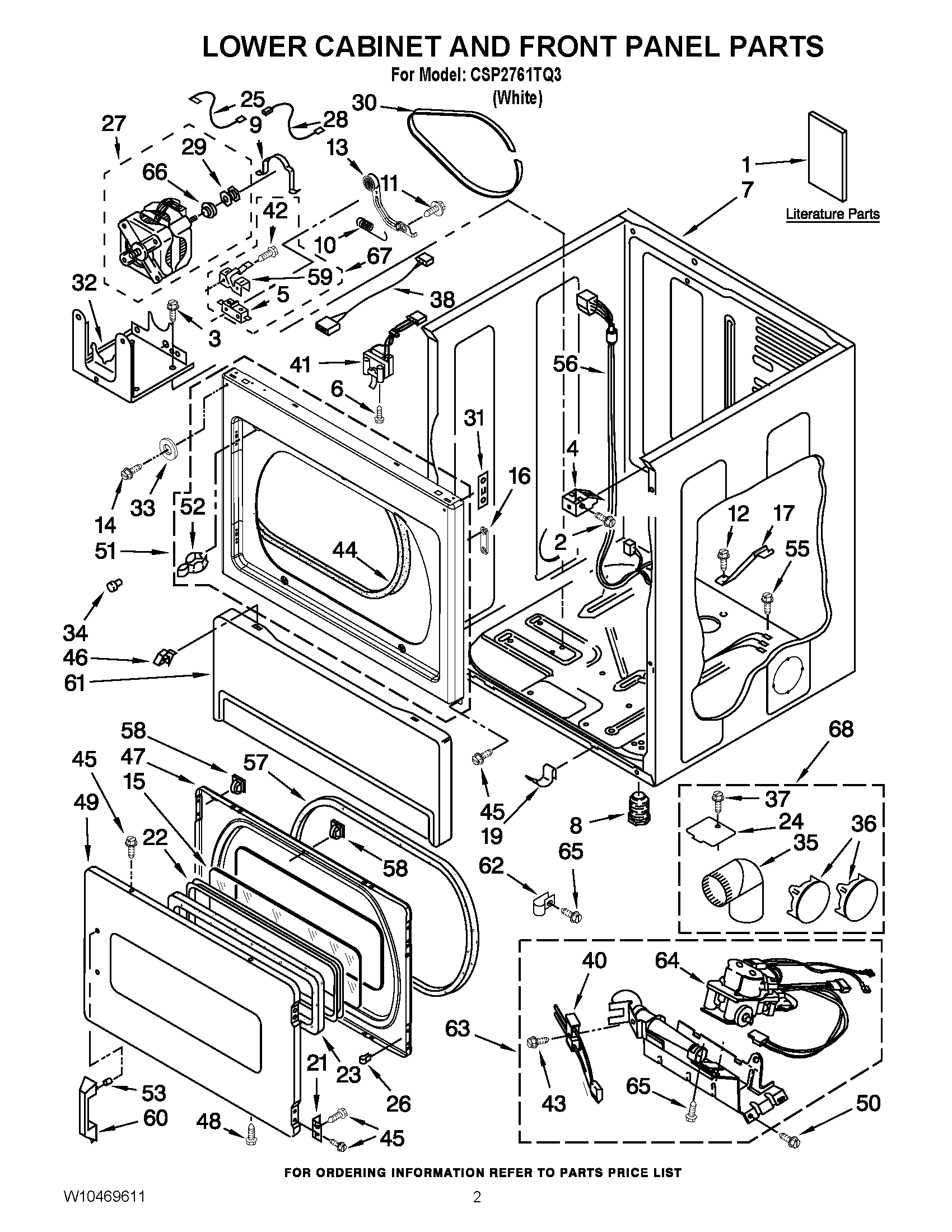

CSP2761TQ3 01 – LOWER CABINET AND FRONT PANEL PARTS

CSP2761TQ3 01 – LOWER CABINET AND FRONT PANEL PARTS

Written by

in

CSP2761TQ3 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIWINDOW
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1Installation Instructions
1Wiring Diagram
1REPAIR PARTS LIST
2681615 Whirlpool Screw
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13WPW10344193 Whirlpool Idler Pulley
14WP3373329 Whirlpool Dishwasher Screw
15Window (2)
16W10191265 Whirlpool Plug
17W10181903 Whirlpool Bracket
19WPW10291934 Whirlpool Clip
21WPW10279703 Whirlpool Hinge Assembly
223392914 Whirlpool Window Frame
23Gasket, Window
24WPW10354249 Whirlpool Cover
253398948 Whirlpool Wire
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28W10167612 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34693152 Whirlpool Bumper
354“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
388283298 Whirlpool Wire Harness
40279311 Whirlpool Dryer Flat Igniter with Bracket
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WPW10366705 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51W10242810 Whirlpool Panel
53SCREW
55WP488729 Whirlpool Refrigerator Door Screw
568529990 Whirlpool Wire Harness
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP8066120 Whirlpool Lever Assembly
60WPW10213202 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
623387561 Whirlpool Clamp
63BURNER ASSEMBLY 60 HZ. (REFER TO PAGES 8 & 9 FOR FURTHER BREAKDOWN)
64279923 Whirlpool Gas Valve
65WP693995 Whirlpool Screw
66WP3393657 Whirlpool Belt Retainer
