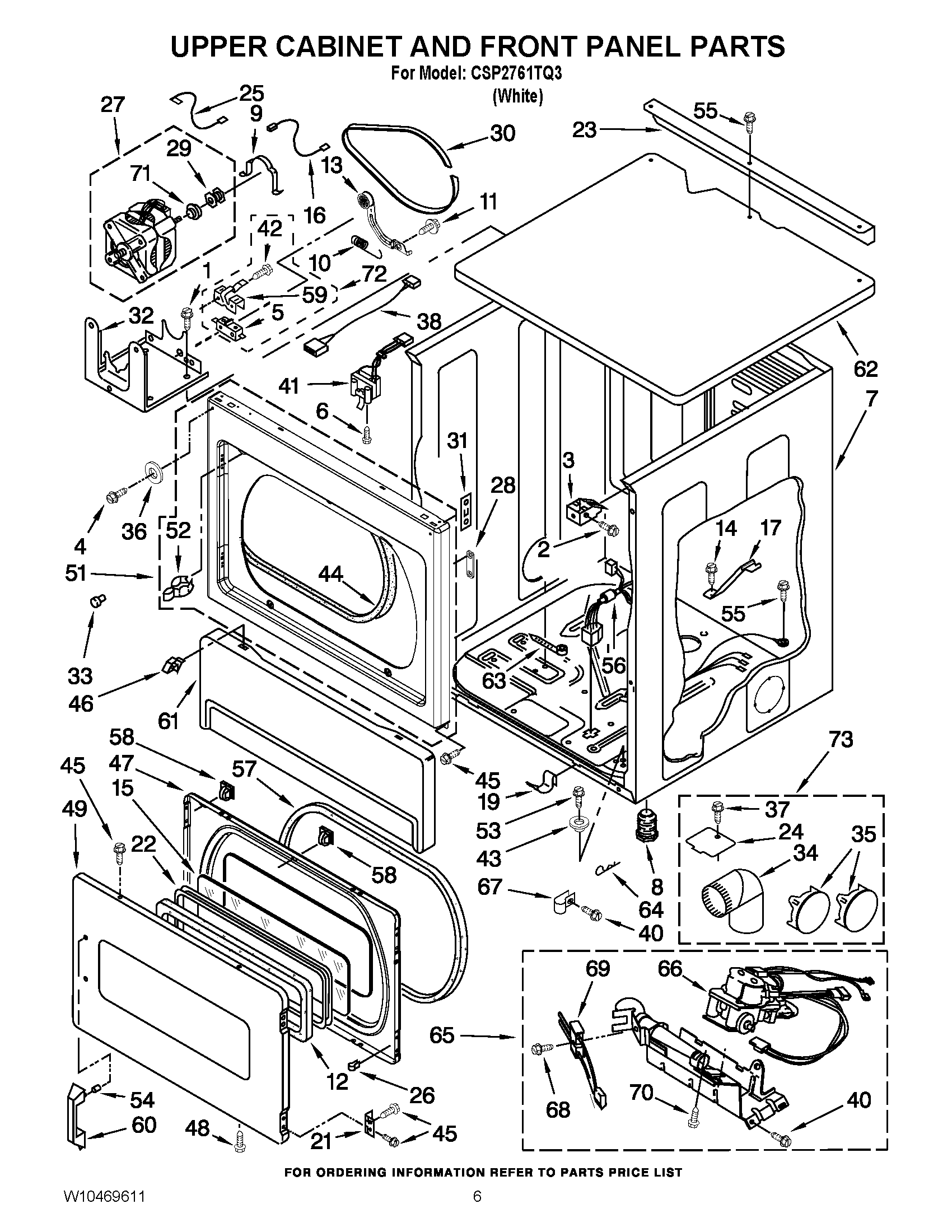

CSP2761TQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

CSP2761TQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

CSP2761TQ3 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIWINDOW
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1SCREW
2681615 Whirlpool Screw
33391846 Whirlpool Clip
4WP3373329 Whirlpool Dishwasher Screw
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7Cabinet (Upper)
8WP689172 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12Gasket, Window
13WPW10344193 Whirlpool Idler Pulley
15Window (2)
16W10167612 Whirlpool Wire
17W10181903 Whirlpool Bracket
19WPW10291934 Whirlpool Clip
21WPW10279703 Whirlpool Hinge Assembly
223392914 Whirlpool Window Frame
233979115 Whirlpool Bracket
24WPW10354249 Whirlpool Cover
253398948 Whirlpool Wire
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28W10191265 Whirlpool Plug
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33693152 Whirlpool Bumper
344“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
36Washer
388283298 Whirlpool Wire Harness
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43BUSHING
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51W10242810 Whirlpool Panel
53285875 Whirlpool Security Kit
54SCREW
55WP488729 Whirlpool Refrigerator Door Screw
568529989 Whirlpool Wire Harness
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP8066120 Whirlpool Lever Assembly
60WPW10213202 Whirlpool Handle
61WP3406797 Whirlpool Toe Panel
623389351 Whirlpool Top
63WP3391018 Whirlpool Wire Tie
64COTTER PIN
65BURNER ASSEMBLY 60 HZ. (REFER TO PAGES 8 & 9 FOR FURTHER BREAKDOWN)
66279923 Whirlpool Gas Valve
673387561 Whirlpool Clamp
68WPW10366705 Whirlpool Screw
69279311 Whirlpool Dryer Flat Igniter with Bracket
70WP693995 Whirlpool Screw
71WP3393657 Whirlpool Belt Retainer
