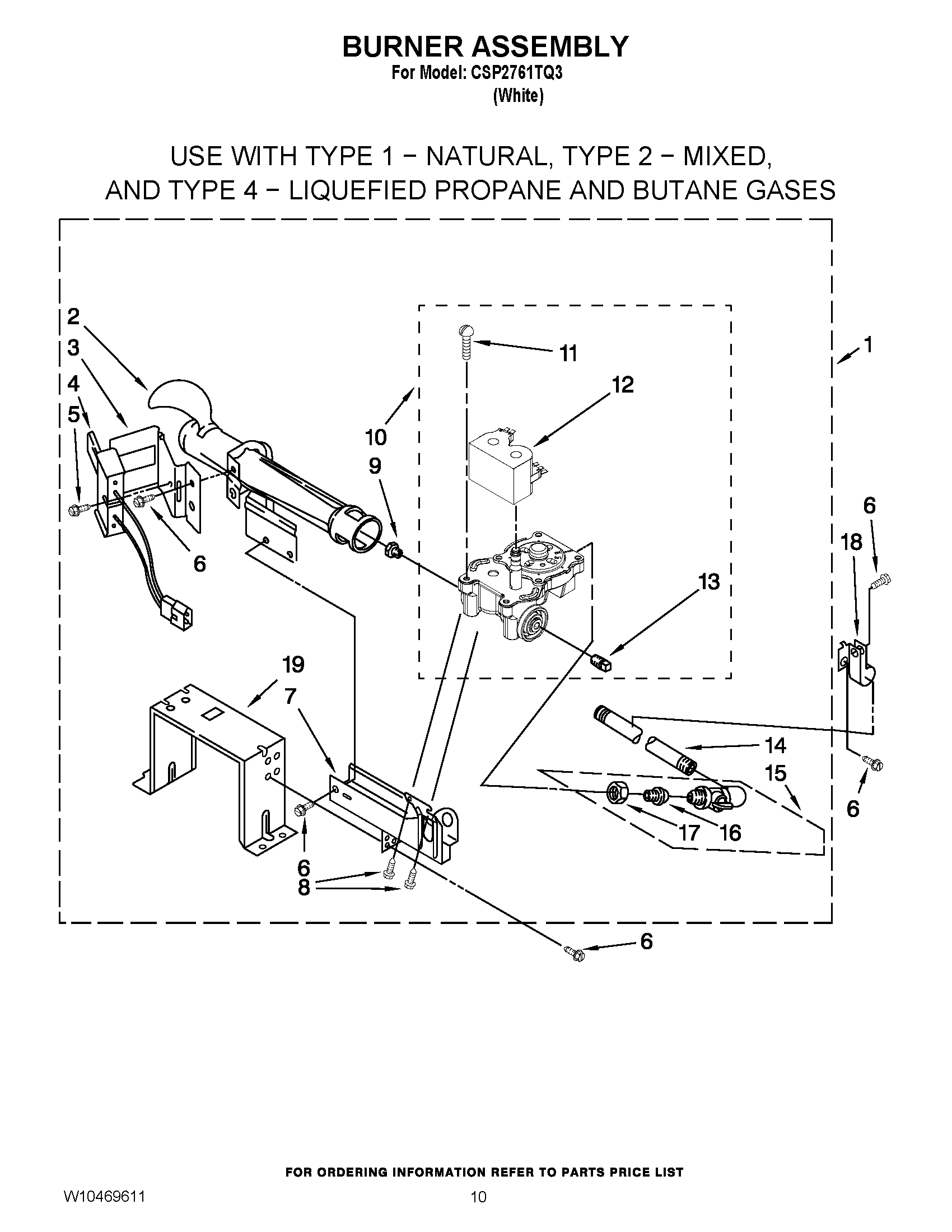

CSP2761TQ3 05 – BURNER ASSEMBLY

Products

PositionProduct
NI49572A Whirlpool Dryer Propane Gas Conversion Kit
1BURNER ASSEMBLY 60 HZ. (REFER TO PAGES 8 & 9 FOR FURTHER BREAKDOWN)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
9WP234868 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11326049536 Whirlpool Screw
12WPW10328463 Whirlpool Valve Coil
13W10295523 Whirlpool Plug
14W10110395 Whirlpool Pipe
15697441 Whirlpool Valve
163393767 Whirlpool Pipe
17Nut, Compression
183387561 Whirlpool Clamp
19Bracket, Support
