  • CSP2761TQ4 01 – CONTROL PANEL AND SEPARATOR PARTS

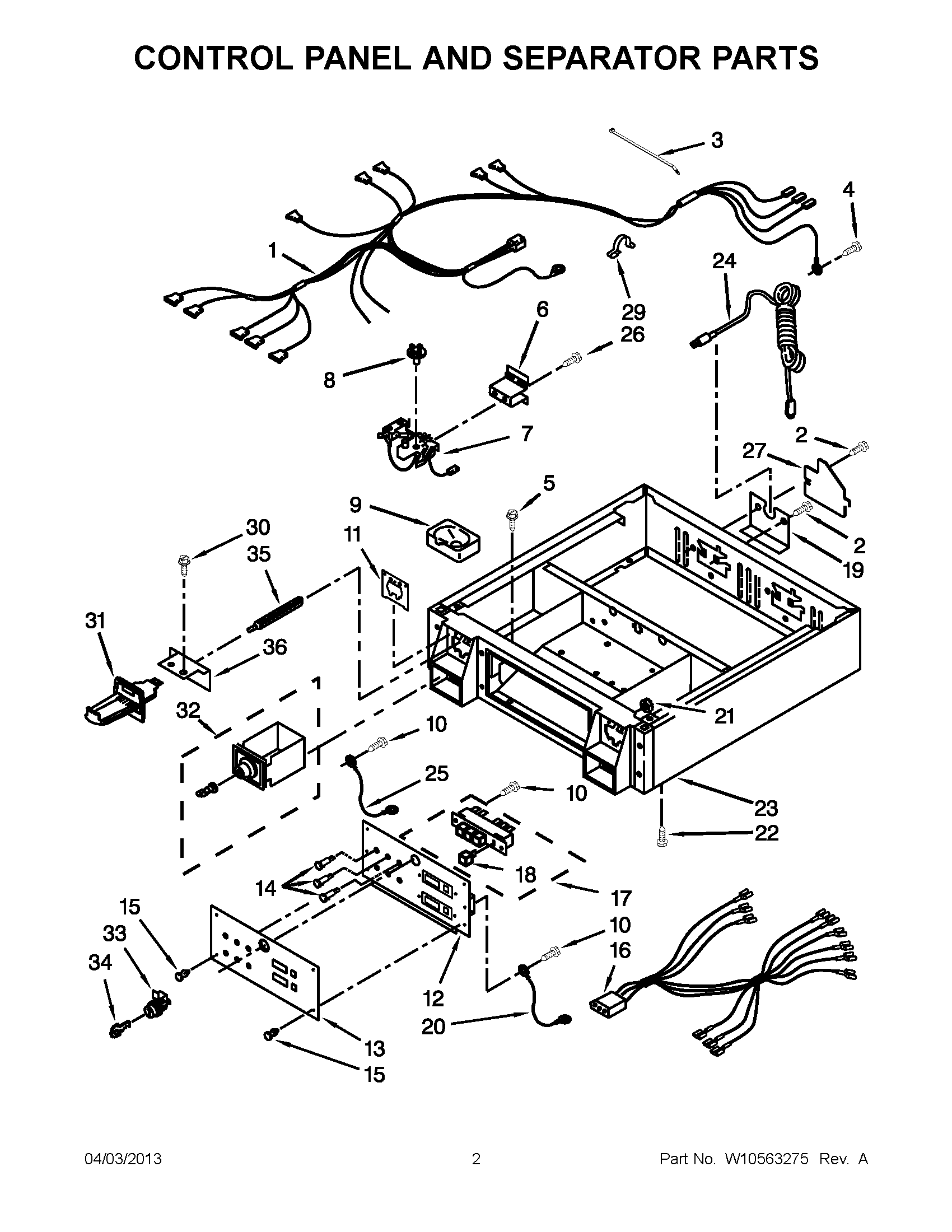

CSP2761TQ4 01 – CONTROL PANEL AND SEPARATOR PARTS

CSP2761TQ4 01 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
18283295 Whirlpool Wire Harness
2W11676450 Whirlpool Screw
3WPW10155270 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
63390115 Whirlpool Bracket Assembly
7279737 Whirlpool Dryer Load Timer
8WP343777 Whirlpool Cam
8WP3387974 Whirlpool Cam
9WP385421 Whirlpool Coin Operated Laundry Funnel
10WP489128 Whirlpool Refrigerator Screw
11279950 Whirlpool Funnel
12Panel, Control
13Insert, Decorative
14Lamp, Indicator (Amber)
143979327 Whirlpool Light
14Lamp, Indicator (Red)
15Rivet, Serial Nameplate
168283296 Whirlpool Wire Harness
18SWITCH-PB
193390189 Whirlpool Relief Valve
203401699 Whirlpool Wire
21WP3400029 Whirlpool Dishwasher Nut
223400500 Whirlpool Screw
23W10862444 Whirlpool Collar
24W11222083 Whirlpool Power Cord
26WP3400094 Whirlpool Screw
27W11539855 Whirlpool Refrigerator Pump
298528351 Whirlpool Clip
30WP356418 Whirlpool Screw
31WPL 8316265
31Inserts (Not Shown
31W11126319 Whirlpool Washer Dryer Coin Chute
32W11190039 Whirlpool Coin Box Assembly
33W11315637 Whirlpool Lock Assembly
34CABINET (NOT A SERVICEABLE PART)
35WP8576635 Whirlpool Bolt
363390424 Whirlpool Extension
