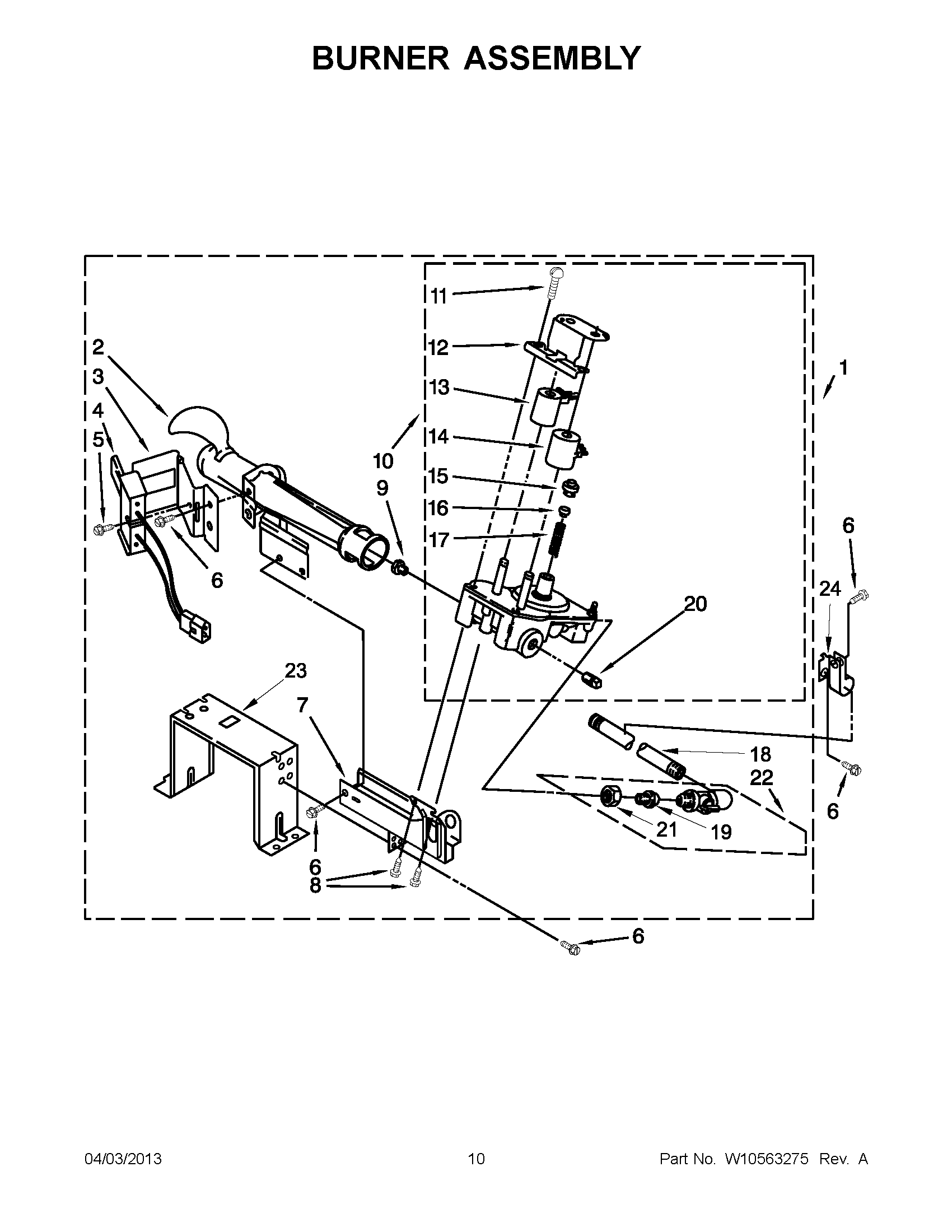

CSP2761TQ4 05 – BURNER ASSEMBLY

Products

Position	Product
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 1)
9	WP234868 Whirlpool Gas Orifice
10	279923 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	W10110395 Whirlpool Pipe
19	3393767 Whirlpool Pipe
20	W10295523 Whirlpool Plug
21	Nut, Compression
22	697441 Whirlpool Valve
23	Bracket, Support
24	3387561 Whirlpool Clamp
